1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout

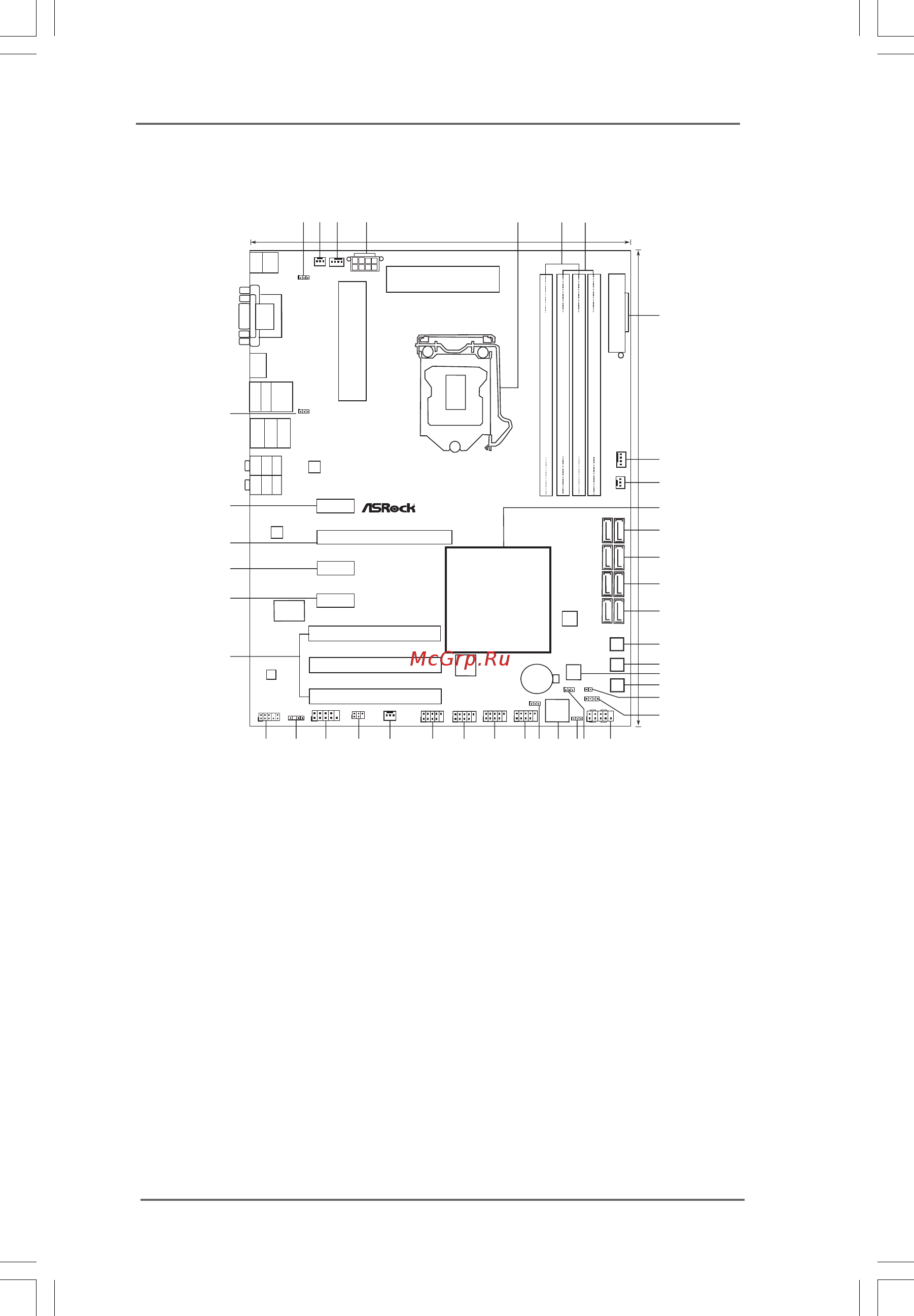

1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 22 System Panel Header (PANEL1, White)
2 Power Fan Connector (PWR_FAN1) 23 Clear CMOS Jumper (CLRCMOS1)
3 CPU Fan Connector (CPU_FAN1) 24 Power LED Header (PLED1)
4 ATX 12V Power Connector (ATX12V1) 25 Dr. Debug
5 1156-Pin CPU Socket 26 USB_PWR3 Jumper
6 2 x 240-pin DDR3 DIMM Slots 27 USB 2.0 Header (USB11_12, Blue)
(Dual Channel: DDR3_A2, DDR3_B2, Blue) 28 USB 2.0 Header (USB9_10, Blue)
7 2 x 240-pin DDR3 DIMM Slots 29 USB 2.0 Header (USB7_8, Blue)
(Dual Channel: DDR3_A1, DDR3_B1, White) 30 Front Panel IEEE 1394 Header
8 ATX Power Connector (ATXPWR1) (FRONT_1394, White)
9 Chassis Fan Connector (CHA_FAN1) 31 Chassis Fan Connector (CHA_FAN3)
10 Chassis Fan Connector (CHA_FAN2) 32 Infrared Module Header (IR1)
11 Intel H55 Chipset 33 COM Port Header (COM1)
12 SATAII Connector (SATAII_0_1, Blue) 34 HDMI_SPDIF Header (HDMI_SPDIF1, White)
13 SATAII Connector (SATAII_2_3, Blue) 35 Front Panel Audio Header
14 SATAII Connector (SATAII_4_5, Blue) (HD_AUDIO1, White)
15 SATA3 Connector (SATA3_1_2, White) 36 PCI Slots (PCI1-3)
16 Clear CMOS Switch (CLRCBTN) 37 PCI Express 2.0 x1 Slot (PCIE4, White)
17 Reset Switch (RSTBTN) 38 PCI Express 2.0 x1 Slot (PCIE3, White)
18 64Mb SPI Flash 39 PCI Express 2.0 x16 Slot (PCIE2, Blue)
19 Power Switch (PWRBTN) 40 PCI Express 2.0 x1 Slot (PCIE1, White)
20 Chassis Intrusion Header (CI1) 41 USB_PWR2 Jumper
21 Chassis Speaker Header (SPEAKER 1, White)
24.4cm (9.6 in)
30.5cm (12.0 in)
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXP WR1
CHA_FAN1
CHA_FAN2
SATAII_2_3
SATAII_0_1
SATA3_1_2
SATAII_4_5
Intel
H55
VIA
VT6308S
SPEAKER1
1
Dr.
Debug
64Mb
BIOS
CI1
1
CMOS
Battery
CLRCMOS1
1
PWRBTN
RSTBTN
IR1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
PLED1
1
clr
CMOS
USB11_12
USB9_10
11
FRONT_1394
11
11
USB7_8
11
Super
I/O
AUDIO
CODEC
LAN
PHY
1
HD_AUDIO1
COM1
1
1
HDMI_SPDIF1
CHA_FAN3
PCIE1
PCIE2
PCIE3
PCIE4
PCI1
PCI2
PCI3
RoHS
H55 Extreme3
1394a
PCI Express 2.0
DDR3 2600+
Dual Channel
ErP/EuP Ready
Design in Taipei
USB 3.0 SATA3 6Gb/s
DX10
ATX12V1
PS2_USB_PWR1
1
USB_PWR2
1
USB_PWR3
1
PWR_FAN1
CPU_FAN1
FRESCO
FL1000G
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
USB 3.0(USB5)
USB 2.0(USB4)
eSATA3_1
IEEE 1394
USB 2.0
T: U SB 0
B: USB1
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
23
18
19
20
21
22
24
25
26
27
28
29
30
31
32
3334
35
36
37
38
39
40
41
Marvell
9123/
9120
USB 2.0
T: U SB 2
B: USB3
