ASRock N3150M [35/56] English
![ASRock N3150M [35/56] English](/views2/1159587/page35/bg23.png)
30
English

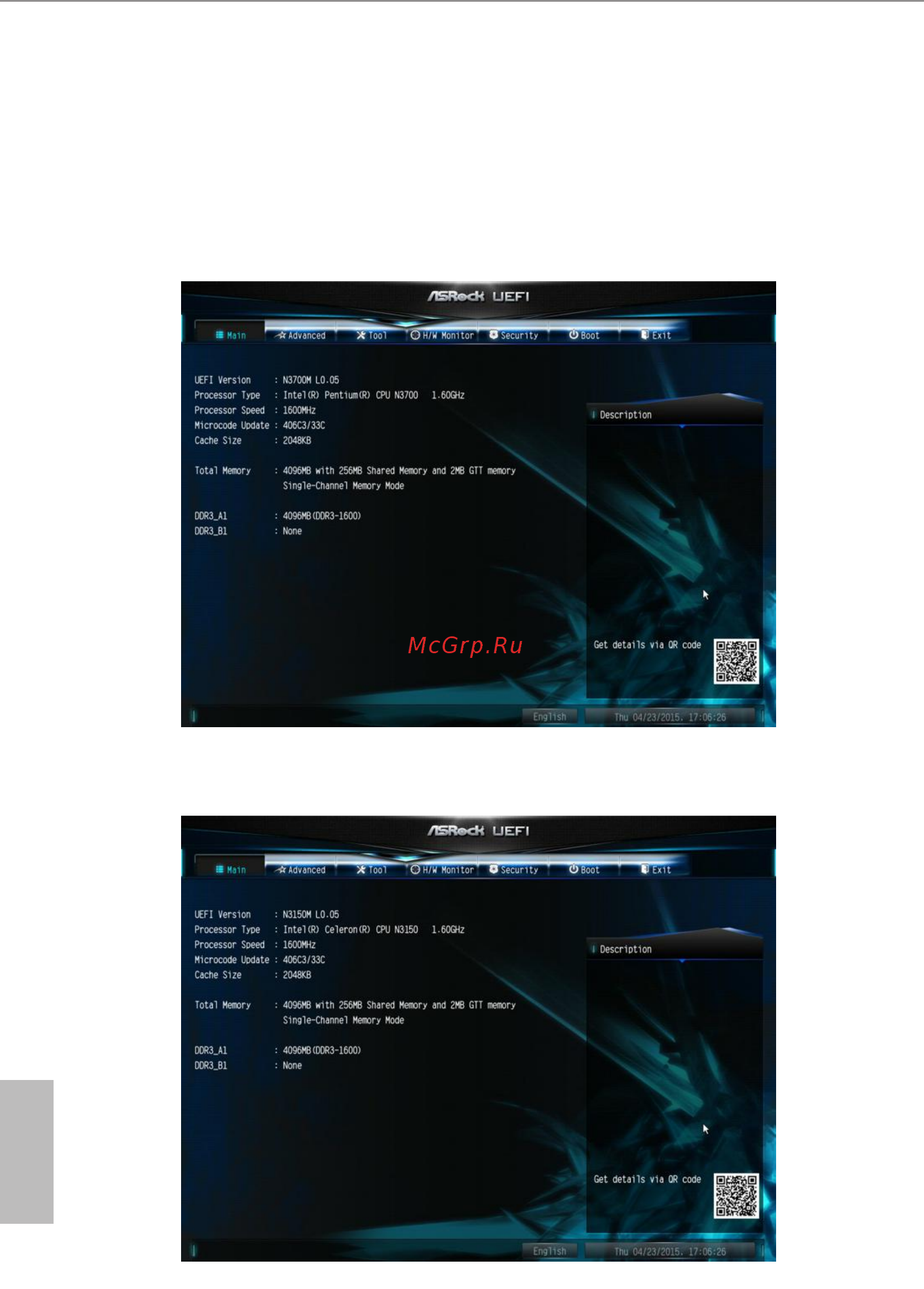

4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
N3700M:
N3150M:
