ASRock P45DE Motherboard

EnglishEnglish

English

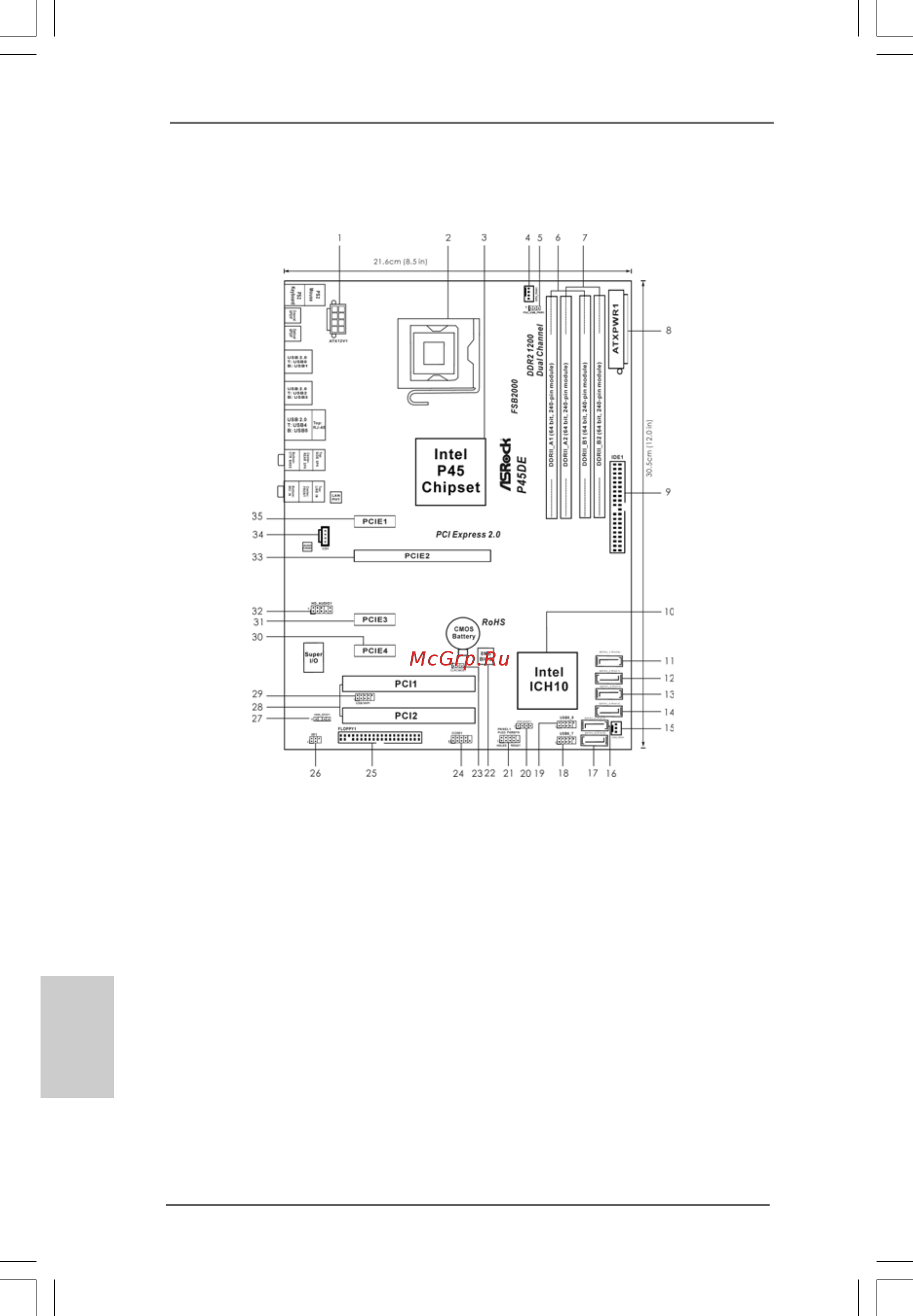

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 ATX 12V Connector (ATX12V1) 19 USB 2.0 Header (USB8_9, Blue)

2 775-Pin CPU Socket 20 Chassis Speaker Header

3 North Bridge Controller (SPEAKER 1, Purple)

4 CPU Fan Connector (CPU_FAN1) 21 System Panel Header (PANEL1, Orange)

5 PS2_USB_PWR1 Jumper 22 SPI BIOS Chip

6 2 x 240-pin DDR2 DIMM Slots 23 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel A: DDRII_A1, DDRII_B1; Yellow) 24 COM Port Header (COM1)

7 2 x 240-pin DDR2 DIMM Slots 25 Floppy Connector (FLOPPY1)

(Dual Channel B: DDRII_A2, DDRII_B2; Orange) 26 Infrared Module Header (IR1)

8 ATX Power Connector (ATXPWR1) 27 HDMI_SPDIF Header

9 IDE1 Connector (IDE1, Blue) (HDMI_SPDIF1, Yellow)

10 South Bridge Controller 28 PCI Slots (PCI1 - 2)

11 SATAII Connector (SATAII_1 (Port0), Red) 29 USB 2.0 Header (USB/WIFI, Blue)

12 SATAII Connector (SATAII_2 (Port1), Red) 30 PCI Express x1 Slot (PCIE4)

13 SATAII Connector (SATAII_3 (Port2), Red) 31 PCI Express x1 Slot (PCIE3)

14 SATAII Connector (SATAII_4 (Port3), Red) 32 Front Panel Audio Header

15 Chassis Fan Connector (CHA_FAN1) (HD_AUDIO1, Lime)

16 SATAII Connector (SATAII_5 (Port4), Red) 33 PCI Express 2.0 x16 Slot (PCIE2, Green)

17 SATAII Connector (SATAII_6 (Port5), Red) 34 Internal Audio Connector: CD1 (Black)

18 USB 2.0 Header (USB6_7, Blue) 35 PCI Express x1 Slot (PCIE1)
