![ASRock P43ME [22/57] 2 2 2 2 2 2 2 2](/img/pdf.png)

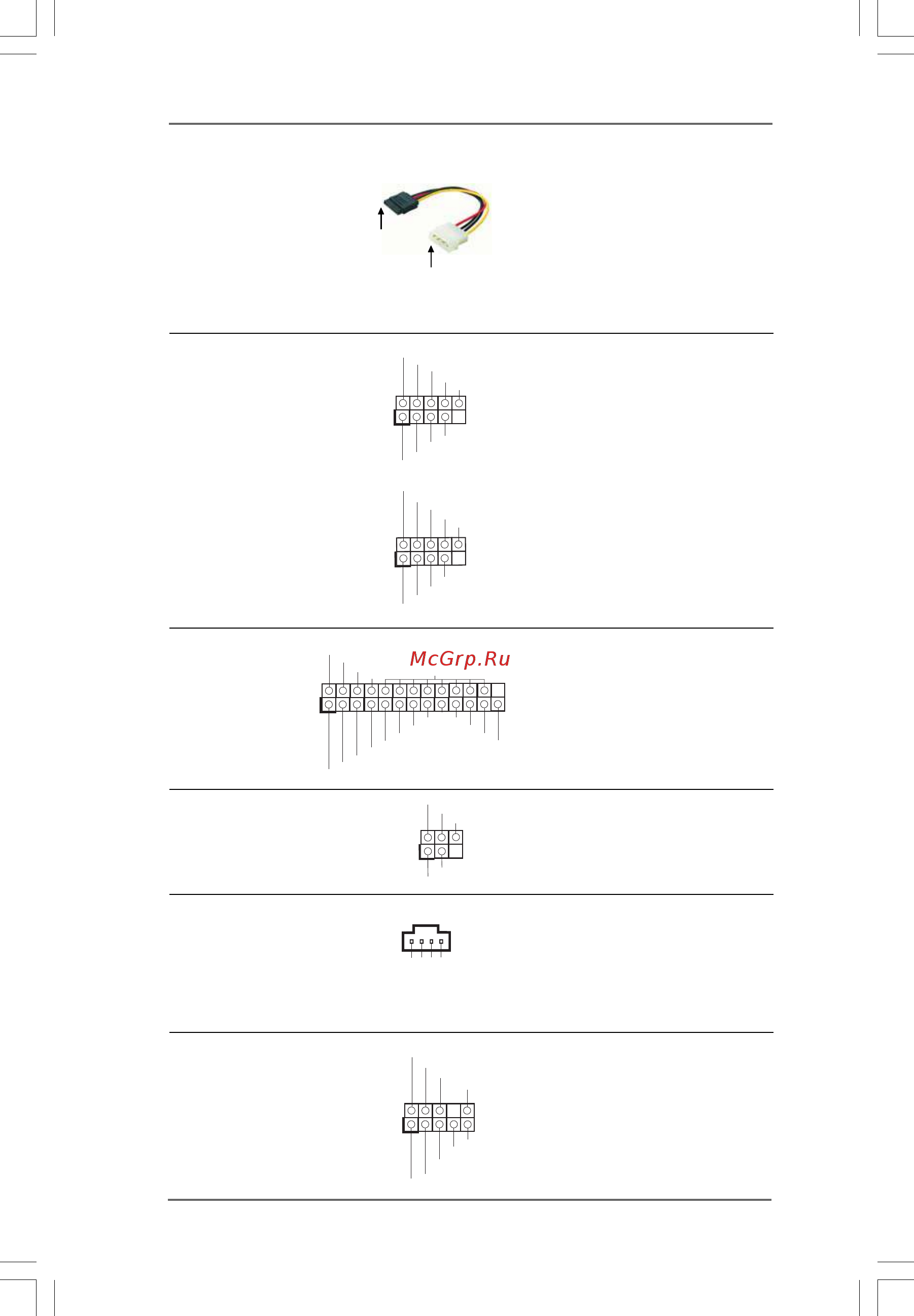

ASRock P43ME [22/57] 2 2 2 2 2 2 2 2
![ASRock P43ME [22/57] 2 2 2 2 2 2 2 2](/views2/1688791/page22/bg16.png)
2222
2222
22
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.10 No. 26) convenient connection and
control of audio devices.
USB_PW R
USB_PW R
P +7
P-7
P +6
P-6
GN D
GN D
DUMMY
1
1
USB _PWR
P-8
GND
DUMMY
USB _PWR
P+8
GND
P-9
P+9
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB8_9) ports on the I/O panel, there are
(see p.10 No. 19) two USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB6_7)
(see p.10 No. 17)
connect to the SATA
HDD power connector
connect to
the power
supply
Serial ATA (SATA) Please connect the black end of
Power Cable SATA power cable to the power
(Optional) connector on each drive. Then
connect the white end of SATA
power cable to the power
connector of the power supply.
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input
(see p.10 No. 25) from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.10 No. 30) and receiving infrared module.
DUMMY
GN D
+5V
IRTX
IRRX
1
CD-L
GN D
GN D
CD-R
CD1
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.10 No. 22) convenient connection of printer
devices.
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
