1.5 Motherboard Layout1.5 Motherboard Layout
1.5 Motherboard Layout1.5 Motherboard Layout

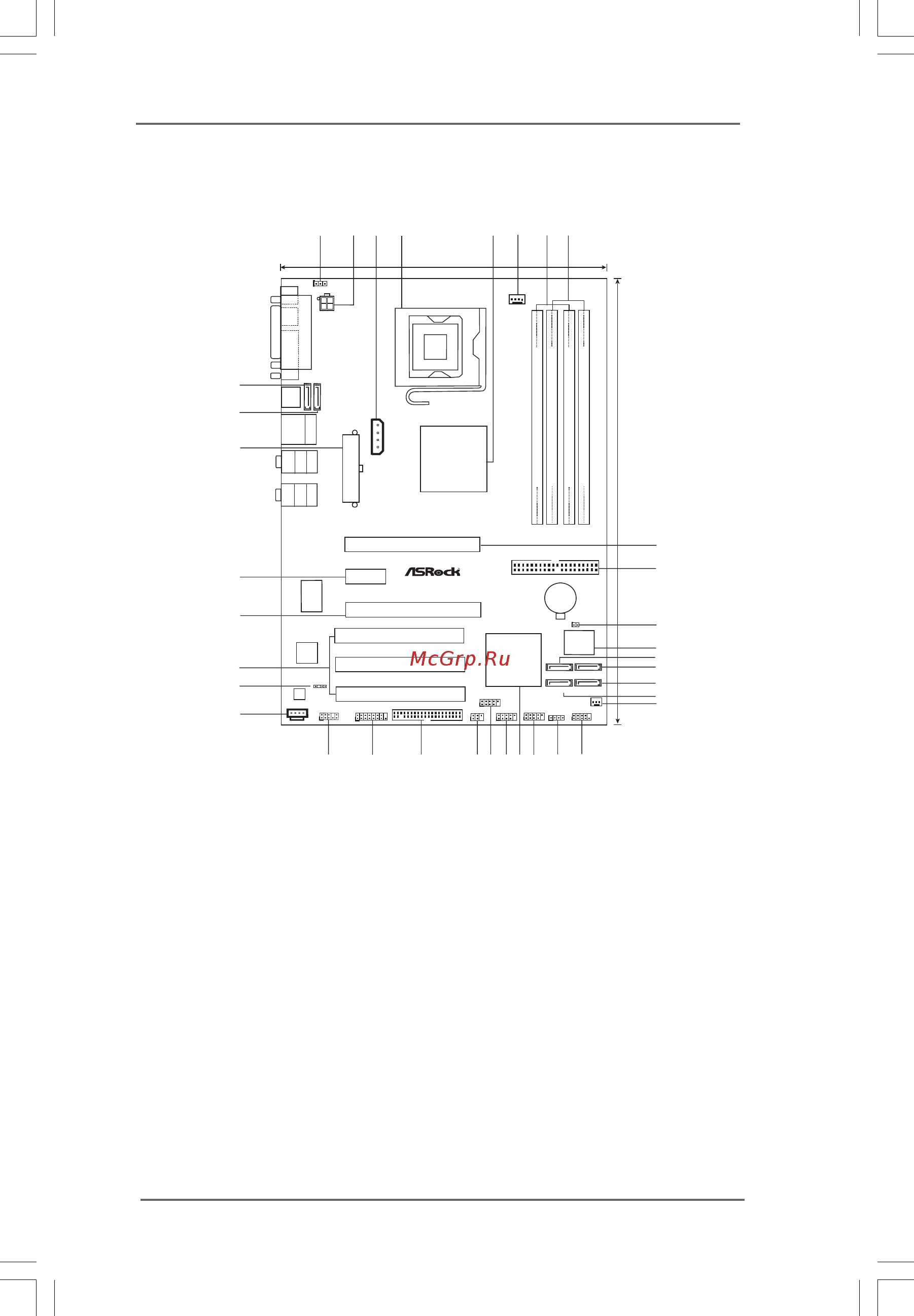

1.5 Motherboard Layout
1 PS2_USB_PWR1 Jumper 18 System Panel Header (PANEL1)
2 ATX 12V Connector (ATX12V1) 19 Chassis Speaker Header (SPEAKER 1)
3 SLI / XFIRE Power Connector 20 USB 2.0 Header (USB67, Blue)
4 775-Pin CPU Socket 21 South Bridge Controller
5 North Bridge Controller 22 USB 2.0 Header (USB45, Blue)
6 CPU Fan Connector (CPU_FAN1) 23 USB 2.0 Header (USB23, Blue)
7 2 x 240-pin DDRII DIMM Slots 24 Infrared Module Connector (IR1)
(Dual Channel A: DDRII_1, DDRII_3; Yellow) 25 Floppy Connector (FLOPPY1)
8 2 x 240-pin DDRII DIMM Slots 26 Game Port Header (GAME1)
(Dual Channel B: DDRII_2, DDRII_4; Orange) 27 Front Panel Audio Header (HD_AUDIO1)
9 PCI Express x16 Slot (PCIE1) 28 Internal Audio Connector: CD1 (Black)
10 IDE1 Connector (IDE1, Blue) 29 HDMI_SPDIF Header (HDMI_SPDIF1)
11 Clear CMOS Jumper (CLRCMOS1) 30 PCI Slots (PCI1- 3)
12 BIOS FWH Chip 31 AGI Express Slot (PCI Express x4)
13 Serial ATAII Connector (SATAII_RED (PORT2)) 32 PCI Express x1 Slot (PCIE2)
14 Serial ATAII Connector (SATAII_ORANGE (PORT3)) 33 ATX Power Connector (ATXPWR1)
15 Serial ATAII Connector (SATAII_BLACK (PORT1)) 34 eSATAII Connector (eSATAII_BOTTOM)
16 Serial ATAII Connector (SATAII_BLUE (PORT0)) 35 eSATAII Connector (eSATAII_TOP)
17 Chassis Fan Connector (CHA_FAN1)
Intel
945PL
Chipset
Intel
ICH7R
ATXPWR1
CD1
ATX 12 V1
1
PS2_USB_PWR1
PARALLEL PORT
COM1
PS2
Mouse
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
Super
I/O
4Mb
BIOS
LAN
PHY
AUDIO
CODEC
PCIE1
PCIE2
CPU_FAN1
CMOS
Battery
AGI_EXPRESS1
PCI 1
PCI 2
PCI 3
`
PCI
EXPRESS
775XFire-eSATA2+
DDRII533
Dual Core CPU
FSB1066
USB2.0
IDE1
SATAII_RED
(PORT2)
SATAII_BLUE
(PORT0)
SATAII_BLACK
(PORT1)
SATAII_ORANGE
(PORT3)
CLRCMOS1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
USB23
SPEAKER1
1
PANEL1
1
USB67
11
GAME1
1
30.5cm (12.0 in)
21.8cm (8.6 in)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
24
25
23
17
18
19
20
21
22
26
27
28
29
30
31
32
DDR_II DIMM1 (64/72 bit, 240-pin module)
DDR_II DIMM2 (64/72 bit, 240-pin module)
DDR_II DIMM3 (64/72 bit, 240-pin module)
DDR_II DIMM4 (64/72 bit, 240-pin module)
RoHS
Presler
eSATAII_12
T:eSATAII_1
B: eSATAII_2
eSATAII_TOP
eSATAII_BOTTOM
Dual Channel
7.1CH HD
SATAII
33
Top:
REAR SPK
Center:
SIDE SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
SLI/XFIRE_PWR1
1
HDMI_SPDIF1
IR1
1
1
USB45
11
eSATAII
Conroe
RAID
34
35
