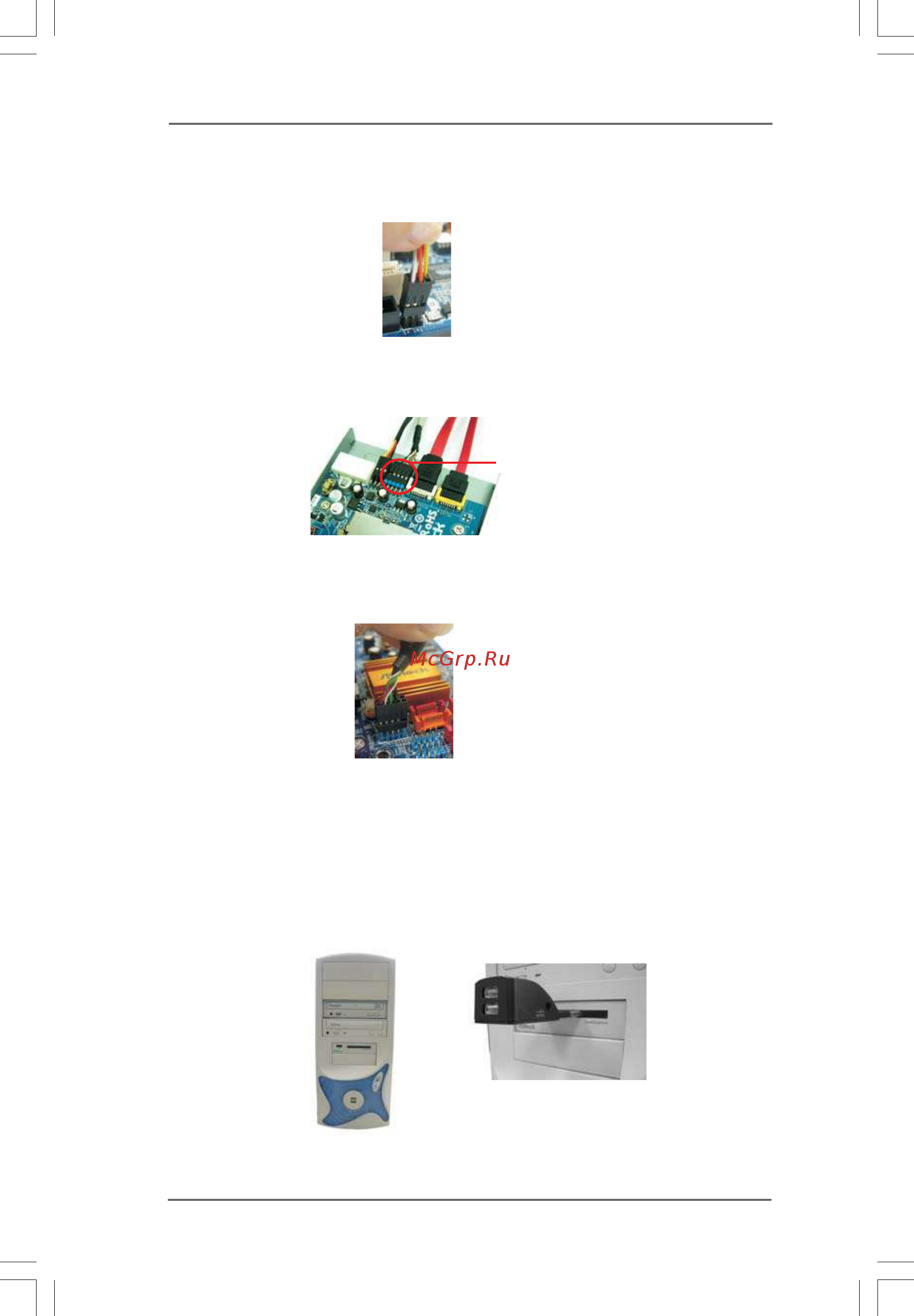

Step 6. Connect either end of USB header data cable to USB 2.0 header
(USB1; blue) on ASRock DeskExpress.
USB 2.0 header (USB1; blue)
Step 7. Connect the other end of USB header data cable to any USB 2.0 header
(USB4_5, USB6_7 or USB8_9; see p.11 No.26, 23 or 25) on this motherboard.
USB 2.0 header (blue)
Step 8. Fasten ASRock DeskExpress to 3.5-in bay on the chassis with screws.
Step 9. Boot your system.
Step 10. The function of ASRock DeskExpress is enabled. You can insert your USB
flash drive or any PCI Express interface card to ASRock DeskExpress.
(USB flash drive and PCI Express interface card are not bundled with this
motherboard. Please refer to the product vendor for related information.)
Step 5. Connect the other end of DeskExpress Hot Plug detection cable to
DeskExpress Hot Plug detection header (IR1; see p.11 No.29) on this
motherboard.
DeskExpress Hot Plug
detection header (IR1)
