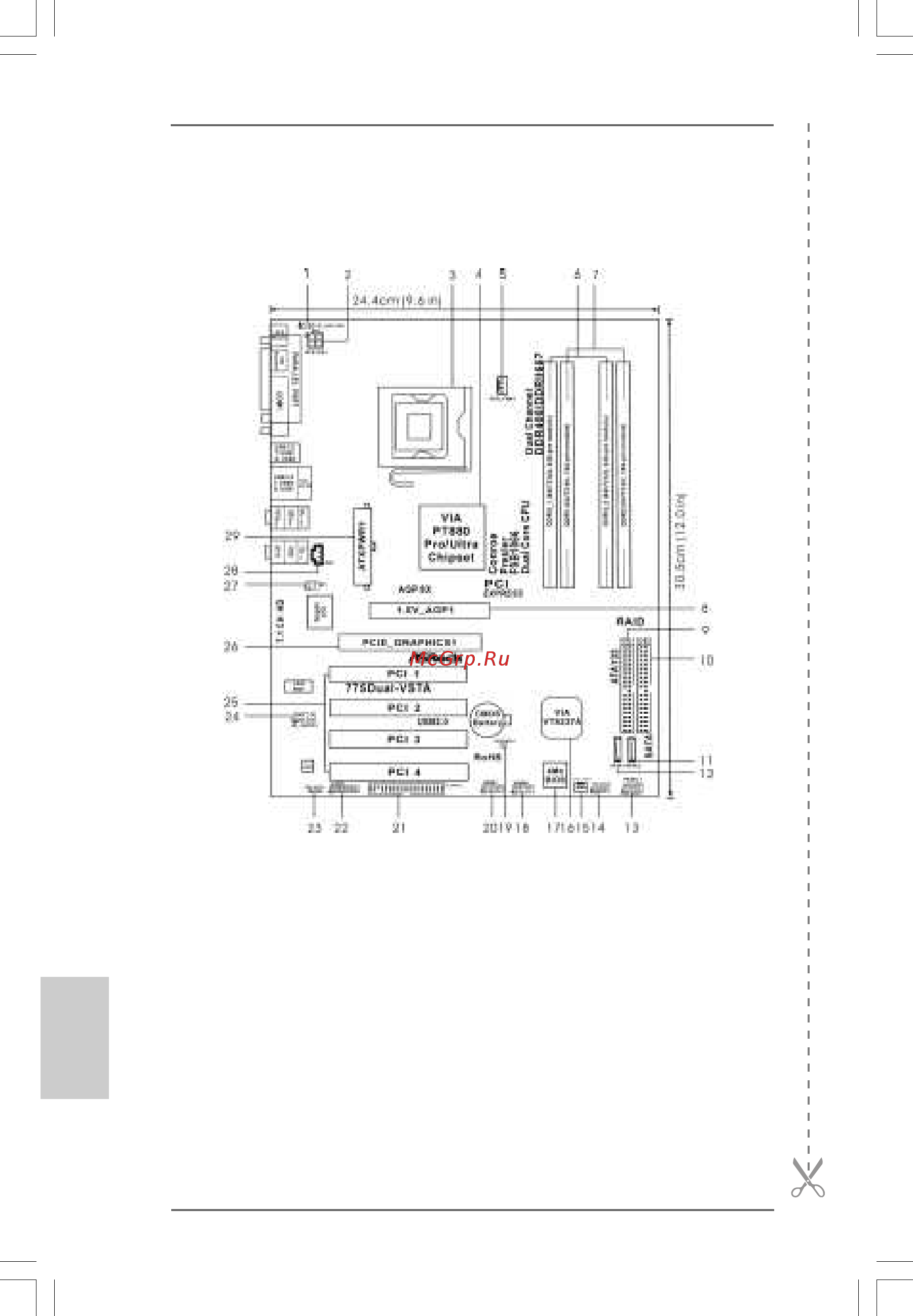

ASRock 775Dual-VSTA Motherboard

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 15 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 16 South Bridge Controller

3 775-Pin CPU Socket 17 Flash Memory

4 North Bridge Controller 18 USB 2.0 Header (USB45, Blue)

5 CPU Fan Connector (CPU_FAN1) 19 Clear CMOS Jumper (CLRCMOS1)

6 2 x 240-pin DDRII DIMM Slots 20 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)

7 2 x 184-pin DDR DIMM Slots 22 Game Connector (GAME1)

(Dual Channel B: DDR1, DDR2; Blue) 23 HDMI_SPDIF Header (HDMI_SPDIF1)

8 AGP Slot (1.5V_AGP1) 24 Front Panel Audio Header (HD_AUDIO1)

9 Primary IDE Connector (IDE1, Blue) 25 4 x PCI Slots (PCI1- 4)

10 Secondary IDE Connector (IDE2, Black) 26 PCI Express Graphics Slot

11 Secondary Serial ATA Connector (SATA2) 27 Infrared Module Header (IR1)

12 Primary Serial ATA Connector (SATA1) 28 Internal Audio Connector: CD1 (Black)

13 System Panel Header (PANEL1) 29 ATX Power Connector (ATXPWR1)

14 Chassis Speaker Header (SPEAKER 1)
