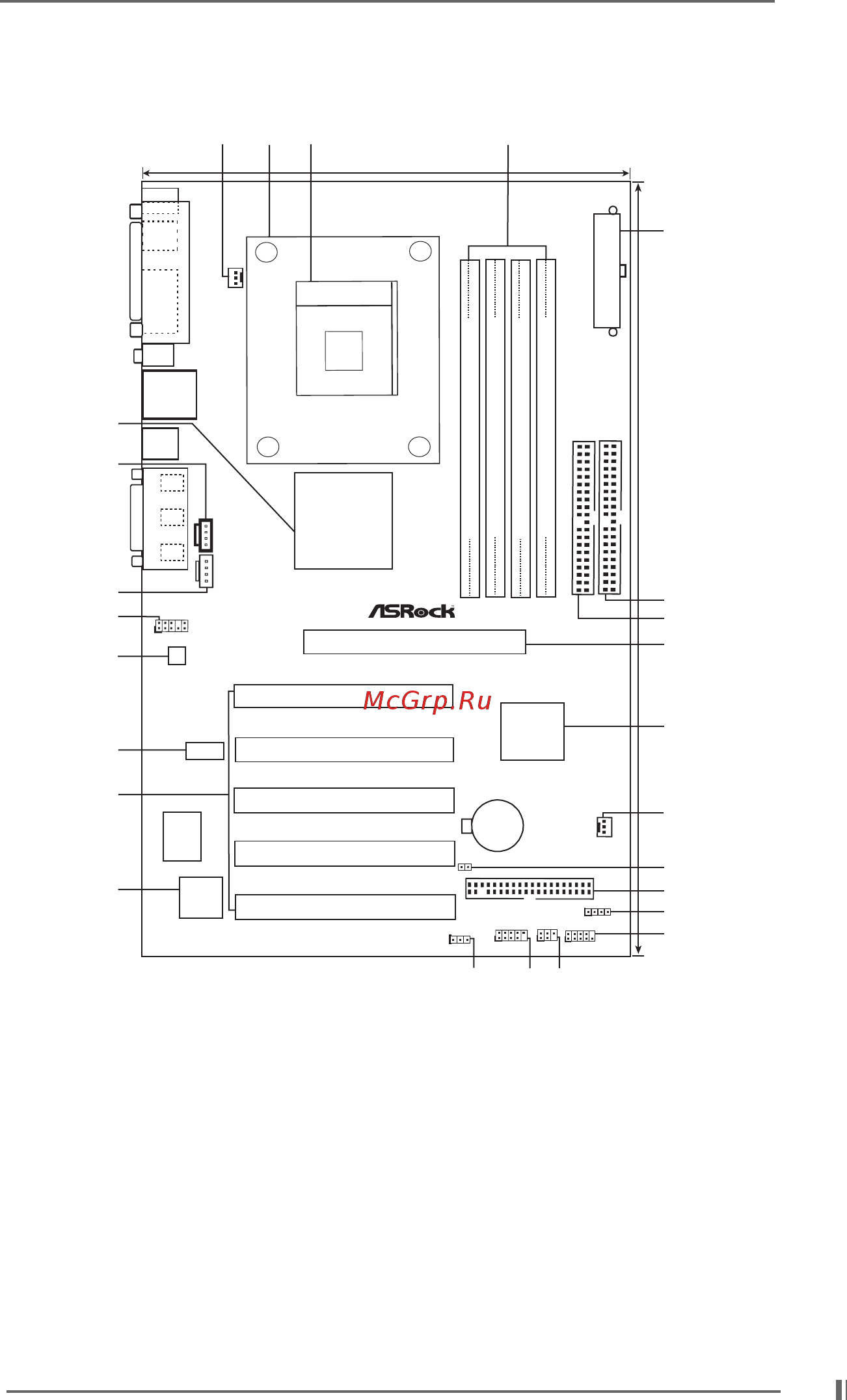

1.3 Motherboard Layout
1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)
2 CPU socket 15 Speaker connector (SPEAKER 1)
3 CPU fan connector (CPU_FAN1) 16 South Bridge controller
4 North Bridge controller 17 Clear CMOS (CLRCMOS1: 2-pin jumper)
5 184-pin DDR DIMM slots (DDR1- 4) 18 PCI slots (PCI1- 5)
6 CPU heatsink retention module 19 AUDIO CODEC
7 Primary IDE connector (IDE1, blue) 20 Front panel audio connector (AUDIO1)
8 Secondary IDE connector (IDE2, black) 21 LAN PHY
9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper
10 Floppy connector (FLOPPY1) 23 Internal audio connector: AUX1 (white)
11 Flash Memory 24 Internal audio connector: CD1 (black)
12 System panel connector (PANEL1) 25 AGP slot (AGP1)
13 USB header (USB45, blue)
PCI 2
PCI 3
PCI 4
PCI 5
PCI 1
2MB
BIOS
1
AUDIO1
Audio CODEC
Super
I/O
LAN
PHY
AGP1
USB45
1
IR1
1
PANEL 1
HDLED RESET
PLED PWRBTN
1
PS2_USB_PWR1
1
P4VX4
VIA
VT8235
SPEAKER1
1
FLOPPY1
CHA_FAN1
ATXPWR1
CMOS
Battery
VIA
P4X400
Chipset
IDE1 IDE2
CPU_FAN1
10
32
DDR1 (64/72 bit, 184-pin module)
DDR2 (64/72 bit, 184-pin module)
10
32
DDR3 (64/72 bit, 184-pin module)
DDR4 (64/72 bit, 184-pin module)
PGA478
Mic
In
GAME AUDIO1
USB 2.0
Ports
LAN
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
COM1
Line
In
Line in
USB 2.0
Ports
19.0cm (7.5 in)
30.5cm (12.0 in)
CLRCMOS1
1
5
2
63
8
7
25
16
9
17
10
15
12
14
13
22
4
24
23
20
19
21
18
11
AGP 8X
ATA133
USB 2.0
5.1 CH
