English
36

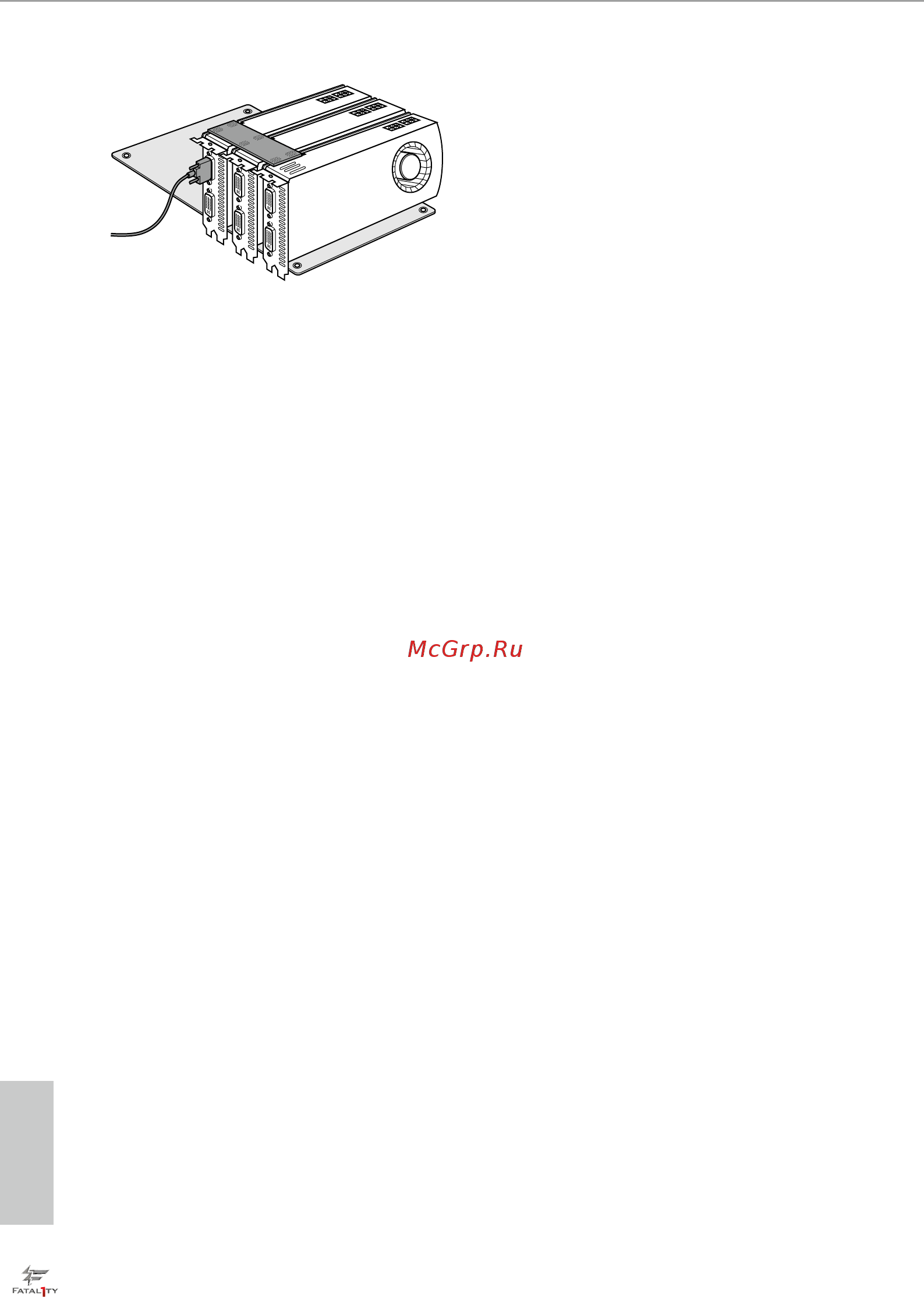

Step 4
Connect a VGA cable or a DVI cable to the
monitor connector or the DVI connector of
the graphics card that is inserted to PCIE1
slot.
*If possible, please plug the PSU’s power
cable to GFX_12V1.
