8

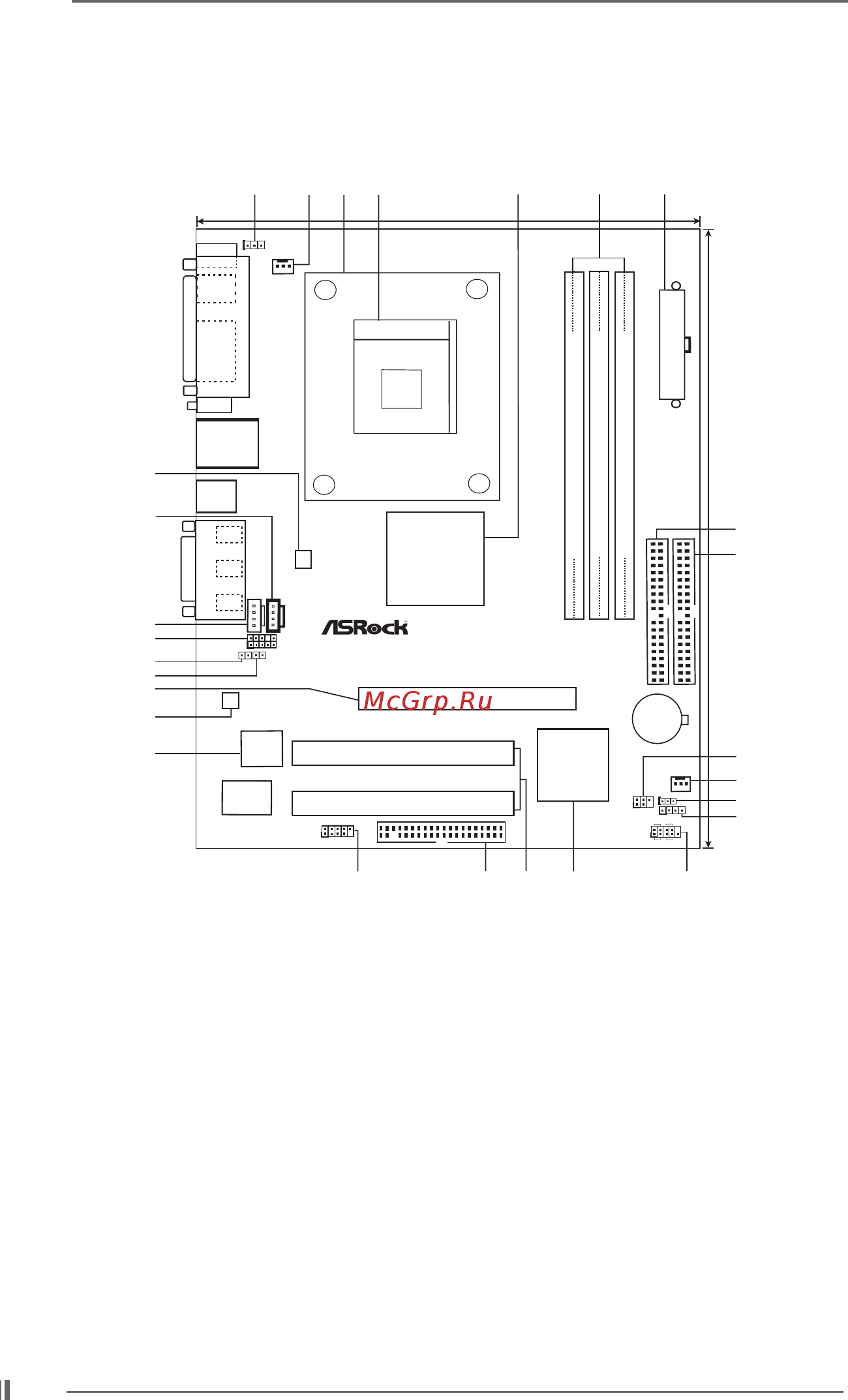

1.4 Motherboard Layout (P4AL-800M)
1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)
2 CPU socket 15 External speaker connector (SPEAKER1)
3 CPU fan connector (CPU_FAN1) 16 South Bridge controller
4 North Bridge controller 17 Clear CMOS (CLRTC1, 3-pin jumper)
5 184-pin DDR DIMM slots 18 PCI slots (PCI 1- 5)
6 CPU heatsink retention module 19 AUDIO CODEC
7 Primary IDE connector (IDE1, Blue) 20 Front panel audio connector (AUDIO1)
8 Secondary IDE connector (IDE2, Black) 21 LAN PHY
9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper
10 Floppy connector (FLOPPY1) 23 Internal audio connector: AUX1 (White)
11 Flash Memory 24 Internal audio connector: CD1 (Black)
12 System panel connector (PANEL1) 25 AGP slot (AGP1)
13 USB 2.0 header (USB45, Blue) 26 JR1 jumper
27 JL1 jumper
`
P4AL-800M
USB2.0
5.1CH
AGP 8X
ATA 133
DDR400
2MB
BIOS
Super
I/O
PCI 1
PCI 2
AUDIO
CODEC
19
AGP1
USB45
1
10
PANEL 1
HDLED RESET
PLED
1
PWRBTN
SPEAKER1
1
IR1
1
CHA_FAN1
FLOPPY1
CMOS
Battery
1
CLRTC1
ALi
M1563
A800N
Chipset
PGA478B
PS2_USB_PWR1
1
CPU_FAN1
AUX1
Mic
In
GAME AUDIO1
USB01
LAN
USB23
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
COM1
Audio1
Line
In
Line in
CD1
LAN
PHY
1
21
24
23
20
19.8cm (7.8 in)
24.4cm (9.6 in)
22
36
2
18 16
12
14
17
9
15
JR1 JL1
27
26
IDE1 IDE2
ATXPWR1
DDR1 (64/72 bit, 184-pin module)
DDR2 (64/72 bit, 184-pin module)
DDR3 (64/72 bit, 184-pin module)
1
5
8
7
4
13
11
25
