7

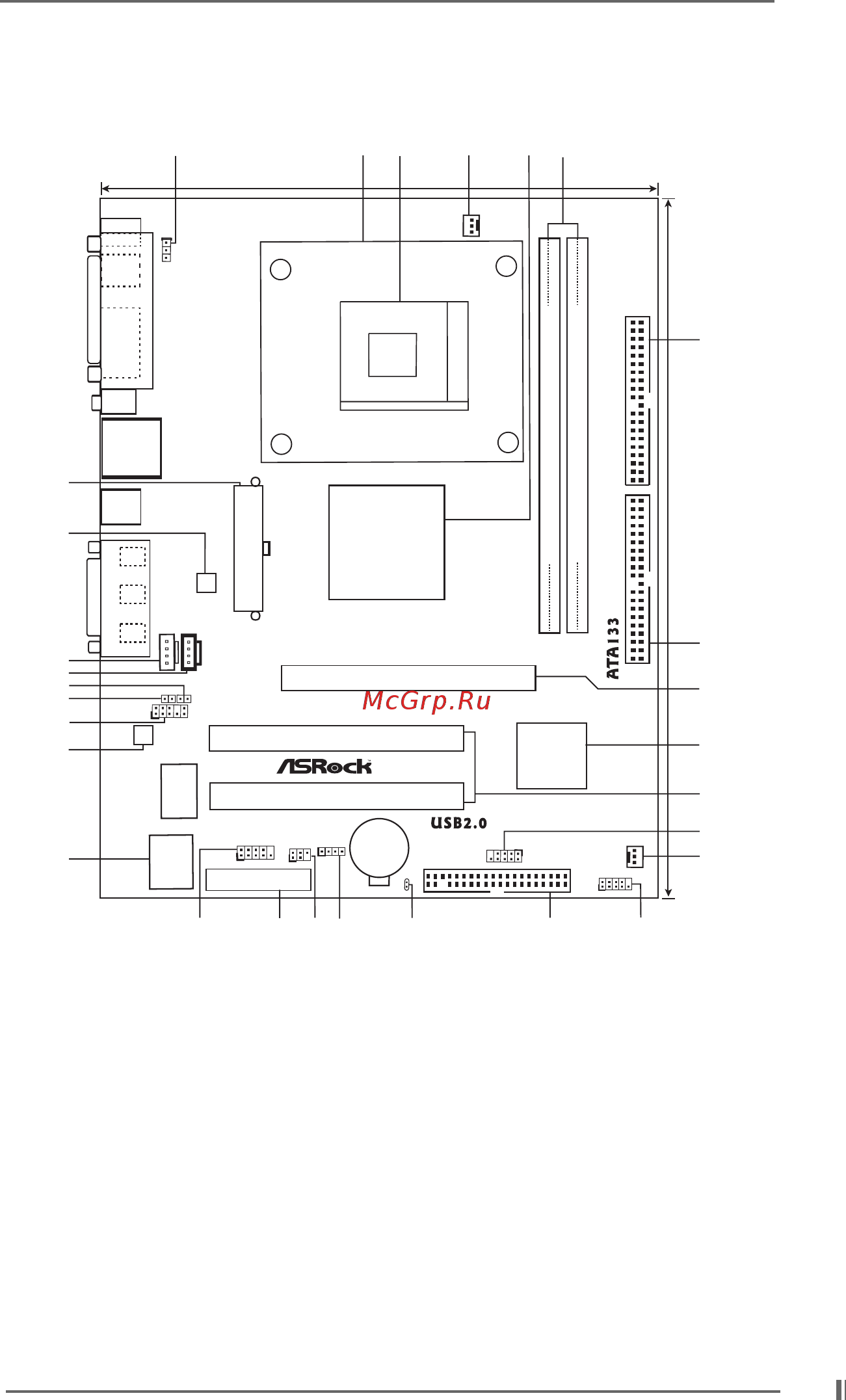

1.3 Motherboard Layout (GE Pro-HT)
1 PS2_USB_PWR1 Jumper 16 Clear CMOS (CLRCMOS1, solder points)
2 CPU Heatsink Retention Module 17 External Speaker Connector (SPEAKER1)
3 CPU Socket 18 Infrared Module Connector (IR1)
4 CPU Fan Connector (CPU_FAN1) 19 AMR Slot (AMR1)
5 North Bridge Controller 20 Serial Port Connector (COM1)
6 184-pin DDR DIMM Slots (DDR DIMM1- 2) 21 Flash Memory
7 Primary IDE Connector (IDE1, Blue) 22 AUDIO CODEC
8 Secondary IDE Connector (IDE2, Black) 23 Front Panel Audio Connector (AUDIO1)
9 Accelerated Graphics Port (AGP1) 24 JR1 Jumper
10 South Bridge Controller 25 JL1 Jumper
11 PCI Slots (PCI 1- 2) 26 Internal Audio Connector: CD1 (Black)
12 USB 2.0 Header (USB45, Blue) 27 Internal Audio Connector: AUX1 (White)
13 Chassis Fan Connector (CHA_FAN1) 28 LAN PHY
14 System Panel Connector (PANEL1) 29 ATX Power Connector (ATXPWR1)
15 Floppy Connector (FLOPPY1)
`
GE PRO-HT
DDR DIMM1 (64/72 bit, 184-pin module)
DDR DIMM2 (64/72 bit, 184-pin module)
IDE2
IDE1
FLOPPY1
AMR1
1
COM1
USB45
1
IR1
1
SPEAKER1
1
CHA_FAN1
SiS
962L
CMOS
Battery
PCI 2
PCI 1
Super
I/O
2MB
BIOS
1
AUDIO1
JR1
JL1
AUDIO
CODEC
1
PS2_USB_PWR1
SiS
651
Chipset
mPGA478B
ATXPWR1
Mic
In
GAME AUDIO1
LAN
(optional)
USB 2.0
Ports
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
VGA
Line
In
Line in
USB 2.0
Ports
AGP1
CPU_FAN1
19.1cm (7.5 in)
24.4cm (9.6 in)
AUX1 CD1
214
6
5.1CH
PANEL1
HDLED RESET
PLED PWRBTN
1
14
LAN
PHY
CLRCMOS1
3 5
9
10
11
7
8
12
13
151617
18
1920
22
23
24
27
28
25
26
21
29
