English

2.9 M.2_SSD (NGFF) Module Installation Guide (M2_2)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket

(M2_2) supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module.

* M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be

disabled.

Installing the M.2_SSD (NGFF) Module

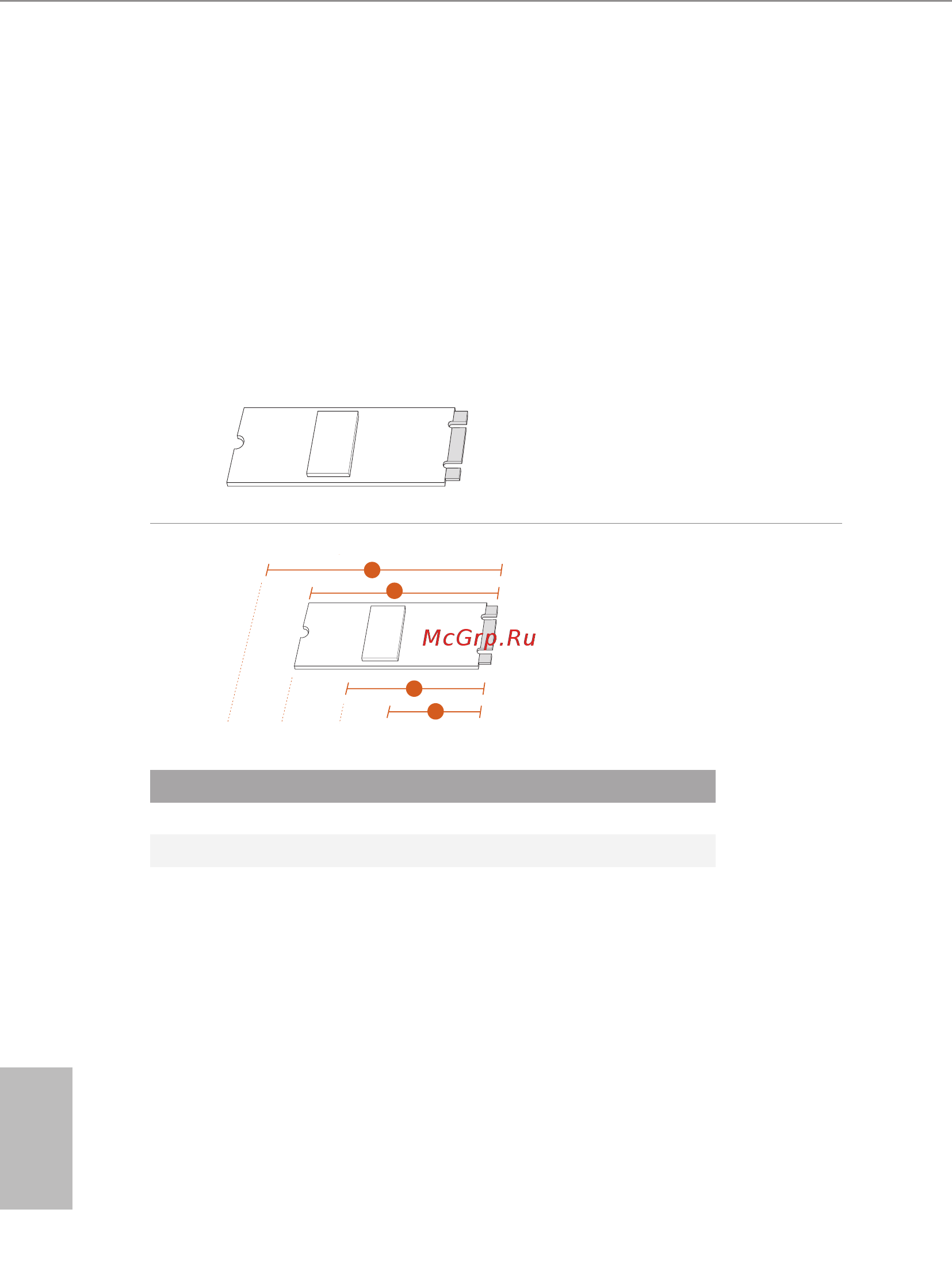

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1 2 3 4

Nut Location A B C D

PCB Length 3cm 4.2cm 6cm 8cm

Module Type Type2230 Type 2242 Type2260 Type 2280

BCDE
