ASRock Fatal1ty 990FX Professional [32/75] Onboard headers and connectors
![ASRock Fatal1ty 990FX Professional [32/75] Onboard headers and connectors](/views2/1691315/page32/bg20.png)
32
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB6_7)
ports on the I/O panel, there
(see p.14 No. 26)
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.

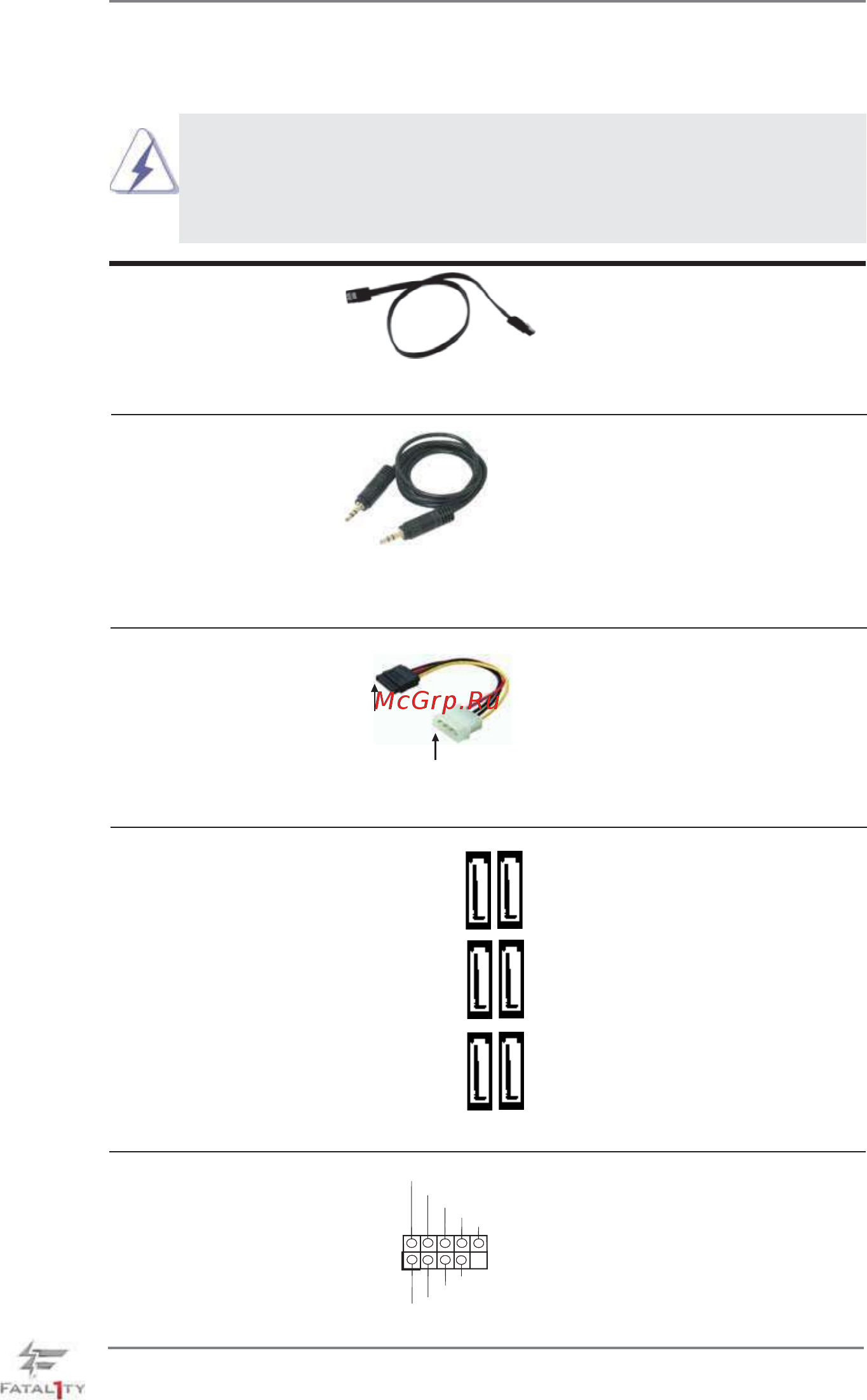

2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA3 hard disk or the SATA3
connector on this motherboard.
3.5mm Audio Cable Either end of the 3.5mm audio
(Optional)
cable can be connected to the
portable audio devices, such
as MP3 player and mobile
phone or the Line-in port of
your PC.
connect to the SATA
HDD power connector
connect to the
power supply
Serial ATA (SATA) Please connect the black end
Power Cable of SATA power cable to the
(Optional)
power connector on each drive.
Then connect the white end of
SATA power cable to the power
connector of the power supply.
SATA3_1_2 SATA3_3_4 SATA3_5_6
Serial ATA3 Connectors These six Serial ATA3
(SATA3_1_2: see p.14, No. 19)
(SATA3) connectors support
(SATA3_3_4: see p.14, No. 18)
SATA data cables for internal
(SATA3_5_6: see p.14, No. 17)
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
P-7
P+7
GND
DUMMY
USB PWR
USB_PWR
P-6
P+6
GND
1
