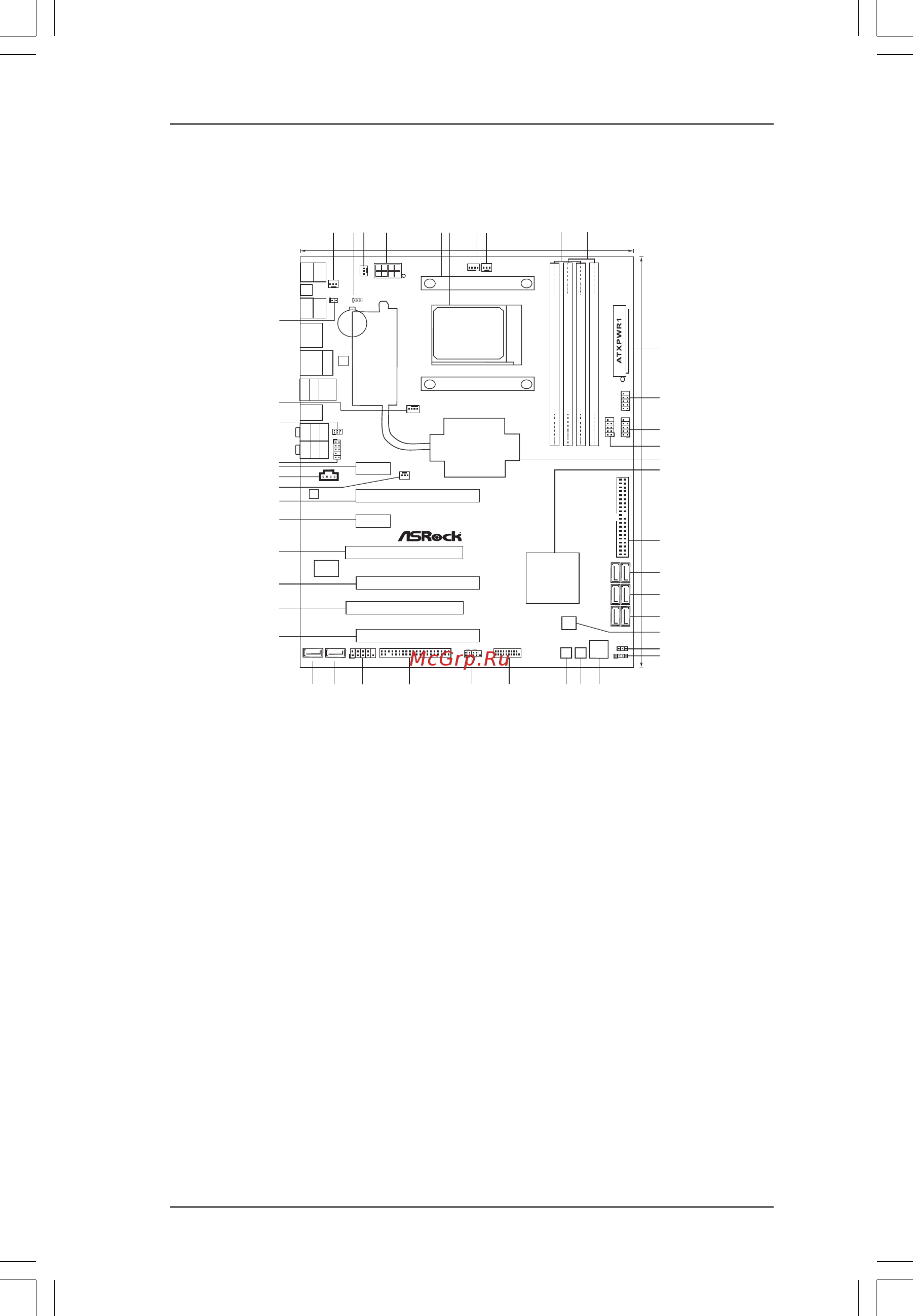

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
FSB800
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
AMD
SB850
Chipset
ATX12V1
32Mb
BIOS
CMOS
BATTERY
CLRCMOS1
1
COM1
1
AUDIO
CODEC
Super
I/O
IR1
1
HD_AUDIO1
1
PCIE1
HDLED RESET
PLED PWRBTN
1
PANEL1
SPEAKER1
1
24.4cm (9.6-in)
30.5cm (12.0-in)
6
7
1
2
4
3
5
8
10
13
14
15
16
17
18
19
20
21
22
23
24
25
2627
2829
30
3132
33
PCIE2
CHA_FAN2
34
35
1
PLED1
SATA3_5_6
36
37
38
39
SATA3_3_4
SATA3_1_2
PCI1
PCIE4
PCI2
USB10_11
FRONT_1394
11
PWRBTN RSTBTN
Dr.
Debug
CPU_FAN1
40
41
42
43
AMD
890FX
Chipset
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Clr
CMOS
USB 2.0
T:USB4
B: USB5
IEEE 1394
Top:
RJ-45
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
USB 2.0
T:USB0
B: USB1
USB 2.0
T:USB6
B: USB7
USB 3.0
T:USB2
B: USB3
eSATA
HDMI_SPDIF_1
1
11
IDE1
9
11
12
PWR_FAN1
CHA_FAN3
CHA_FAN1
PCIE3
PCIE5
FLOPPY1
SATA3_8 SATA3_7
CD1
LAN
PHY
890FX Deluxe5
Designed in Taipei
Support 8-Core CPU SATA3 6Gb/s
PCI Express 2.0
Phenom II FSB2.6GHz HT3.0 AM3+
Dual Channel 140W CPU DDR3 1866
44
45
CPU_FAN2
USB12_13
11
USB3_1_2
ErP/EuP Ready Front USB 3.0
RoHS NEC USB 3.0
1394a
SOCKET AM3b
1 Chassis Fan Connector (CHA_FAN3) 23 Chassis Speaker Header
2 Clear CMOS Jumper (CLRCMOS1) (SPEAKER 1, White)
3 Chassis Fan Connector (CHA_FAN2) 24 Dr. Debug (LED)
4 ATX 12V Power Connector (ATX12V1) 25 Reset Switch (RSTBTN)
5 CPU Heatsink Retention Module 26 Power Switch (PWRBTN)
6 AM3+ CPU Socket 27 USB 3.0 Header (USB3_1_2, Light Blue)
7 CPU Fan Connector (CPU_FAN1) 28 System Panel Header (PANEL1, White)
8 CPU Fan Connector (CPU_FAN2) 29 Floppy Connector (FLOPPY1)
9 2 x 240-pin DDR3 DIMM Slots 30 Serial Port Connector (COM1)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 31 SATA3 Connector (SATA3_7, White)
10 2 x 240-pin DDR3 DIMM Slots 32 SATA3 Connector (SATA3_8, White)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 33 PCI Express 2.0 x16 Slot (PCIE5; Blue)
11 ATX Power Connector (ATXPWR1) 34 PCI Slot (PCI2)
12 USB 2.0 Header (USB12_13, Blue) 35 PCI Express 2.0 x16 Slot (PCIE4; Blue)
13 USB 2.0 Header (USB10_11, Blue) 36 PCI Slot (PCI1)
14 Front Panel IEEE 1394 Header 37 PCI Express 2.0 x1 Slot (PCIE3; White)
(FRONT_1394, White) 38 PCI Express 2.0 x16 Slot (PCIE2; Blue)
15 Northbridge Controller 39 Power Fan Connector (PWR_FAN1)
16 Southbridge Controller 40 Internal Audio Connector: CD1 (White)
17 Primary IDE Connector (IDE1, Blue) 41 PCI Express 2.0 x1 Slot (PCIE1; White)
18 SATA3 Connector (SATA3_5_6, White) 42 Front Panel Audio Header
19 SATA3 Connector (SATA3_3_4, White) (HD_AUDIO1, White)
20 SATA3 Connector (SATA3_1_2, White) 43 Infrared Module Header (IR1)
21 SPI Flash Memory (32Mb) 44 Chassis Fan Connector (CHA_FAN1)
22 Power LED Header (PLED1) 45 HDMI_SPDIF Header (HDMI_SPDIF1, White)
