12

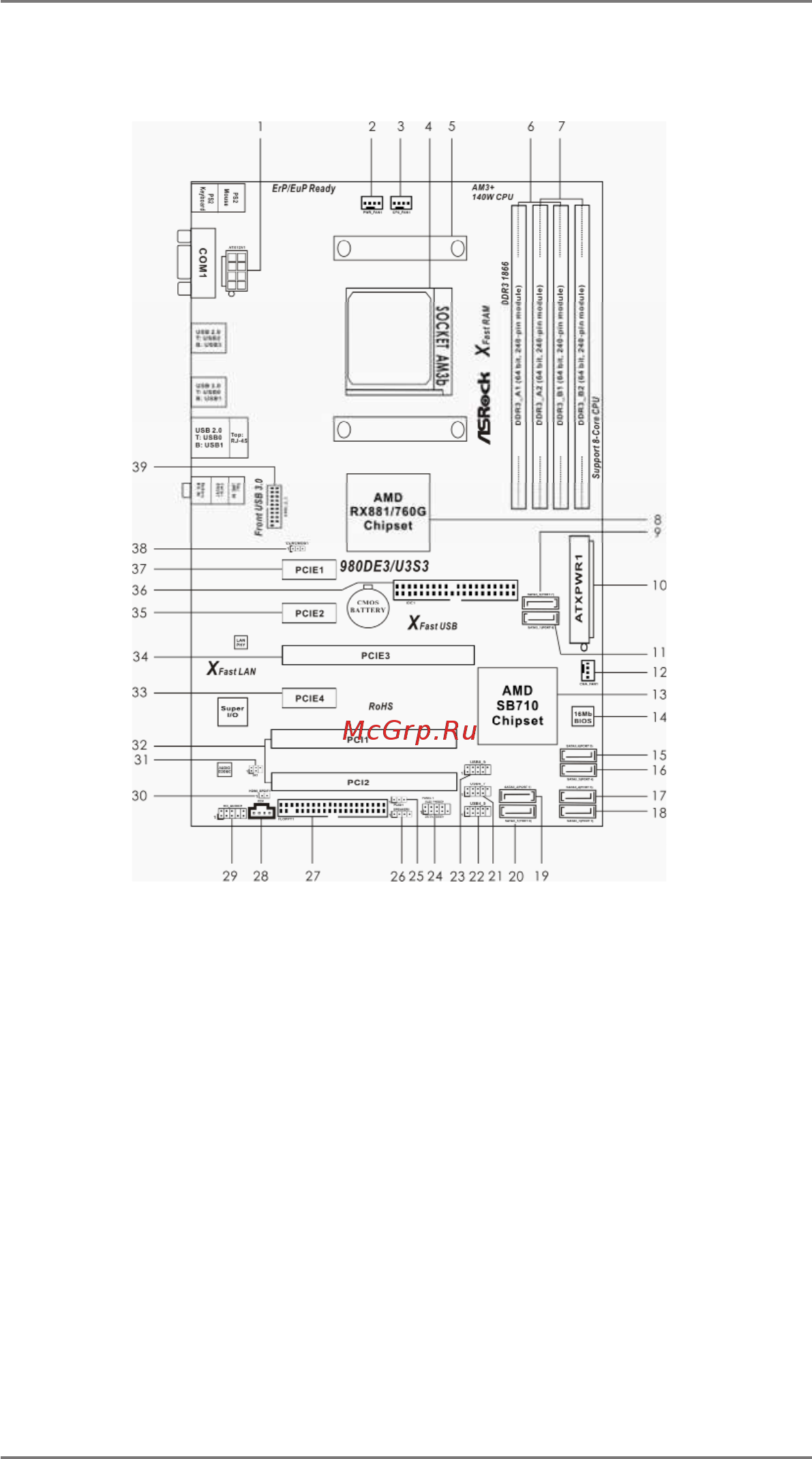

1.4 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 20 SATA2 Connector (SATA2_1 (PORT 1))
2 Power Fan Connector (PWR_FAN1) 21 USB 2.0 Header (USB6_7)
3 CPU Fan Connector (CPU_FAN1) 22 USB 2.0 Header (USB4_5)
4 AM3+ CPU Socket 23 USB 2.0 Header (USB8_9)
5 CPU Heatsink Retention Module 24 System Panel Header (PANEL1)
6 2 x 240-pin DDR3 DIMM Slots 25 Power LED Header (PLED1)
(Dual Channel: DDR3_A1, DDR3_B1) 26 Chassis Speaker Header (SPEAKER1)
7 2 x 240-pin DDR3 DIMM Slots 27 Floppy Connector (FLOPPY1)
(Dual Channel: DDR3_A2, DDR3_B2) 28 Internal Audio Connector (CD1)
8 Northbridge Controller 29 Front Panel Audio Header (HD_AUDIO1)
9 SATA3 Connector (SATA3_2 (PORT 7)) 30 HDMI_SPDIF Header (HDMI_SPDIF1)
10 ATX Power Connector (ATXPWR1) 31 Infrared Module Header (IR1)
11 SATA3 Connector (SATA3_1 (PORT 6)) 32 PCI Slots (PCI1-2)
12 Chassis Fan Connector (CHA_FAN1) 33 PCI Express 2.0 x1 Slot (PCIE4)
13 Southbridge Controller 34 PCI Express 2.0 x16 Slot (PCIE3)
14 SPI Flash Memory (16Mb) 35 PCI Express 2.0 x1 Slot (PCIE2)
15 SATA2 Connector (SATA2_6 (PORT 5)) 36 IDE1 Connector (IDE1)
16 SATA2 Connector (SATA2_5 (PORT 4)) 37 PCI Express 2.0 x1 Slot (PCIE1)
17 SATA2 Connector (SATA2_4 (PORT 3)) 38 Clear CMOS Jumper (CLRCMOS1)
18 SATA2 Connector (SATA2_3 (PORT 2)) 39 USB 3.0 Header (USB3_2_3)
19 SATA2 Connector (SATA2_2 (PORT 1))
