![ASRock 870iCafe R2.0 [12/56] 1 1 1 1 i o p i o p i o p i o p i o panel anel anel anel anel](/img/pdf.png)
ASRock 870iCafe R2.0 [12/56] 1 1 1 1 i o p i o p i o p i o p i o panel anel anel anel anel
![ASRock 870iCafe R2.0 [12/56] 1 1 1 1 i o p i o p i o p i o p i o panel anel anel anel anel](/views2/1691335/page12/bgc.png)
1212
1212
12
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15
1.41.4
1.41.4
1.4

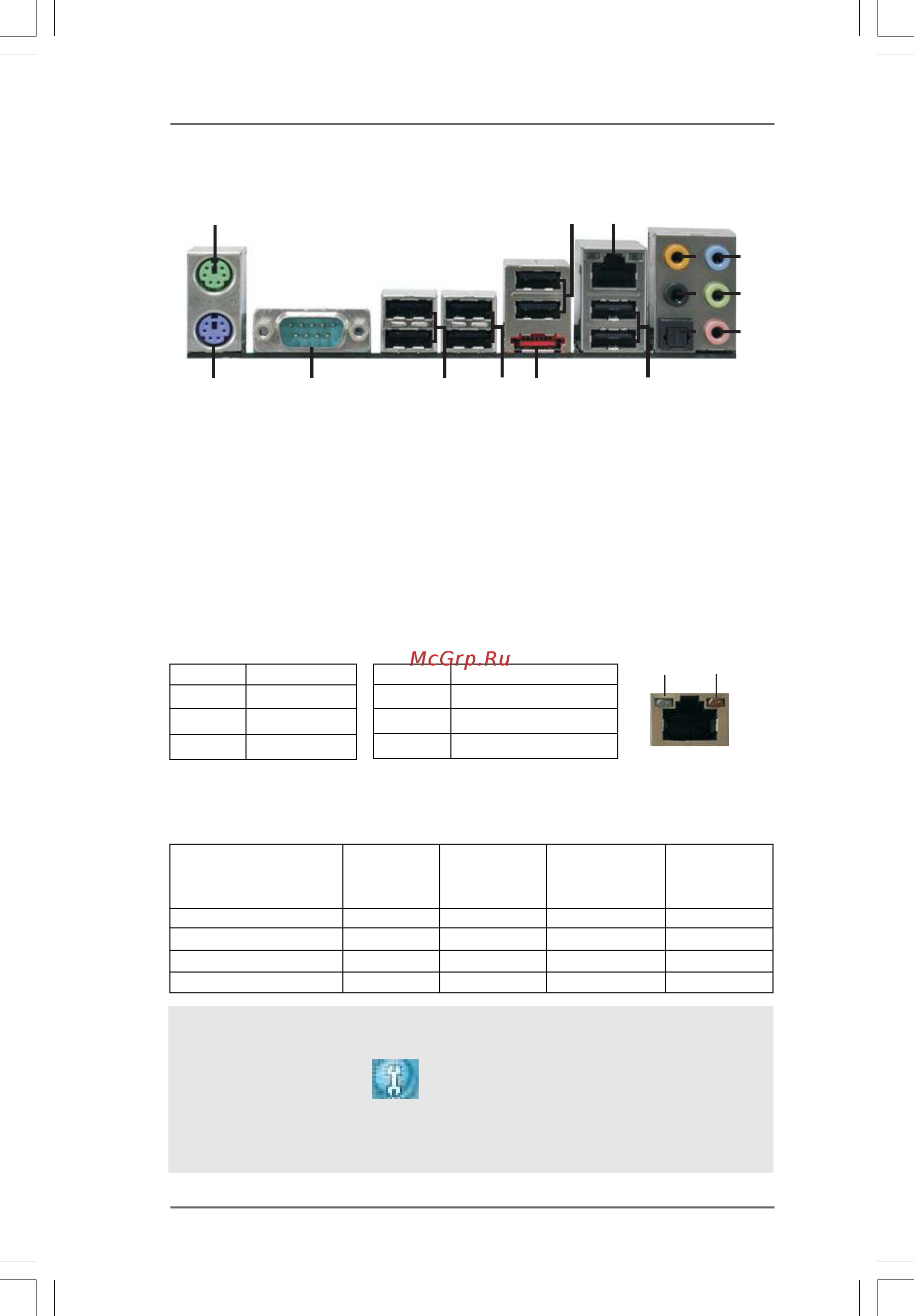

I/O PI/O P
I/O PI/O P
I/O P
anelanel
anelanel
anel
1 PS/2 Mouse Port (Green) 9 Microphone (Pink)
2 USB 2.0 Ports (USB1213) 10 USB 2.0 Ports (USB01)
* 3 LAN RJ-45 Port (LAN) *** 11 eSATA3 Connector
4 Central / Bass (Orange) 12 USB 2.0 Ports (USB45)
5 Rear Speaker (Black) 13 USB 2.0 Ports (USB23)
6 Optical SPDIF Out Port 14 Serial Port (COM1)
7 Line In (Light Blue) 15 PS/2 Keyboard Port (Purple)
** 8 Front Speaker (Lime)
LAN Port
ACT/LINK
LED
SPEED
LED
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or
(No. 8) (No. 5) (No. 4) Side Speaker
(No. 7)
2 V -- -- --
4VV----
6VVV--
8VVVV
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA
Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek
HDA Audio 2nd output” to use front panel audio.
*** eSATA3 connector supports SATA Gen3 in cable 1M.
