ASRock N68-GS3 FX / N68-S3 FX Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

(N68-(N68-

(N68-

GS3 FX / N68-S3 FX)GS3 FX / N68-S3 FX)

GS3 FX / N68-S3 FX)

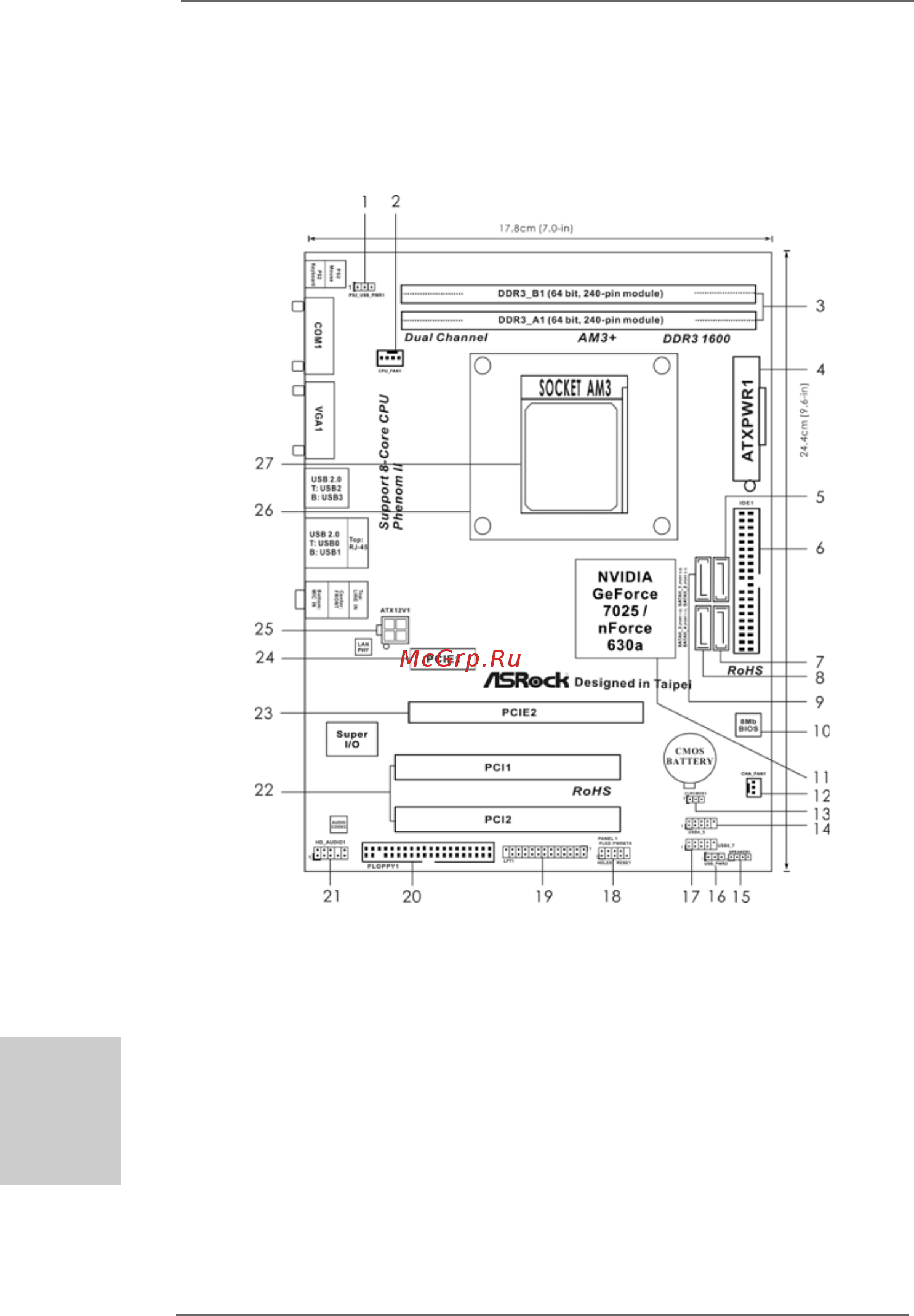

1 PS2_USB_PWR1 Jumper 15 Chassis Speaker Header

2 CPU Fan Connector (CPU_FAN1) (SPEAKER 1, White)

3 2 x 240-pin DDR3 DIMM Slots 16 USB_PWR2 Jumper

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 17 USB 2.0 Header (USB6_7, Blue)

4 ATX Power Connector (ATXPWR1) 18 System Panel Header (PANEL1, White)

5 SATAII Connector (SATAII_2 (PORT 0.1)) 19 Print Port Header (LPT1, White)

6 Primary IDE Connector (IDE1, Blue) 20 Floppy Connector (FLOPPY1)

7 SATAII Connector (SATAII_4 (PORT 1.1)) 21 Front Panel Audio Header

8 SATAII Connector (SATAII_3 (PORT 1.0)) (HD_AUDIO1, Lime)

9 SATAII Connector (SATAII_1 (PORT 0.0)) 22 PCI Slots (PCI1- 2)

10 SPI Flash Memory (4Mb) 23 PCI Express x16 Slot (PCIE2)

11 NVIDIA GeForce 7025 / nForce 630a 24 PCI Express x1 Slot (PCIE1)

12 Chassis Fan Connector (CHA_FAN1) 25 ATX 12V Power Connector (ATX12V1)

13 Clear CMOS Jumper (CLRCMOS1) 26 CPU Heatsink Retention Module

14 USB 2.0 Header (USB4_5, Blue) 27 AM3 CPU Socket
