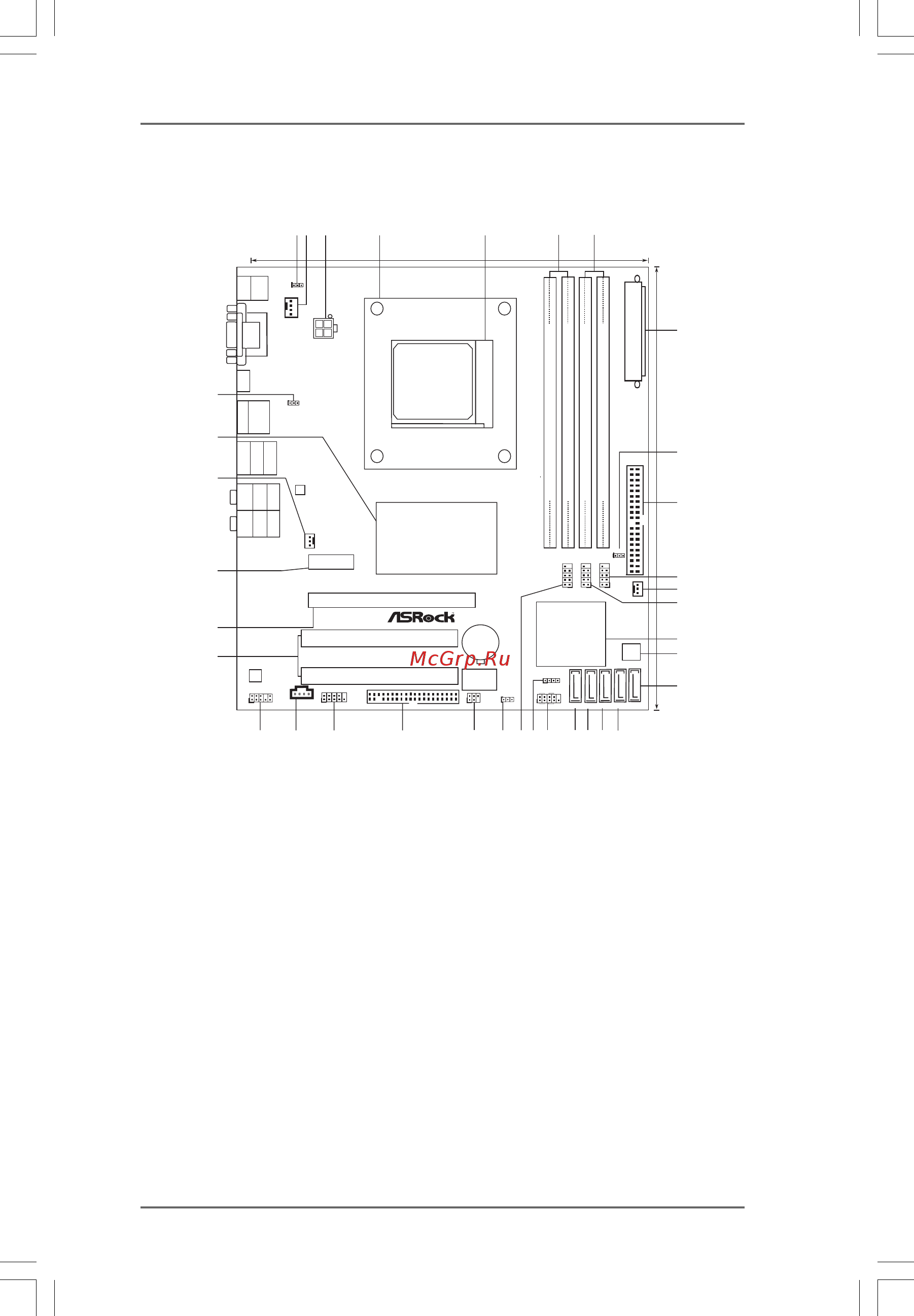

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
Super
I/O
CMOS
BATTERY
ATXPWR1
SOCKET AM3
AMD
880G
Chipset
ATX12V1
PS2_USB_PW1
1
COM1
PCIE1
PCI1
PCI2
LAN
AUDIO
CODEC
1
CLRCMOS1
1
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
1
24.4cm (9.6-in)
22.9cm (9.0-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
8Mb
BIOS
IR1
1
AMD
SB710
Chipset
PCIE2
33
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
FSB800
DDR3_A2 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
SATAII_1
(
SATAII_2 SATAII_3 SATAII_4 SATAII_5
PORT 0) (PORT 1) (PORT 2) (PORT 3) (PORT 4)
34
USB 2.0
T: U SB 2
B: USB3
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
Top :
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
eSATA1
USB 2.0
T: U SB 4
B: USB5
USB 2.0:USB0
USB 3.0:USB1
USB_PW1
1
1
1
1
USB10_11
USB8_9
USB6_7
PWR_FAN1
USB_PW2
1
DX10.1
880GMH/USB3
Six-Core CPU Ready
ErP/EuP Ready
Sideport memory 128M
Hybrid CrossFire
USB 3.0
Designed in Taipei
RoHS
AM3
HT3.0
Phenom II
DDR3 1800
Dual Channel
FSB2.6GHz
CD1
FLOPPY1
IDE1
35
1 PS2_USB_PW1 Jumper 19 SATAII Connector (SATAII_2 (PORT 1), Blue)
2 CPU Fan Connector (CPU_FAN1) 20 SATAII Connector (SATAII_1 (PORT 0), Blue)
3 ATX 12V Power Connector (ATX12V1) 21 System Panel Header (PANEL1, White)
4 CPU Heatsink Retention Module 22 Chassis Speaker Header
5 AM3 CPU Socket (SPEAKER 1, White)
6 2 x 240-pin DDR3 DIMM Slots 23 USB 2.0 Header (USB10_11, Blue)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 24 Clear CMOS Jumper (CLRCMOS1)
7 2 x 240-pin DDR3 DIMM Slots 25 Infrared Module Header (IR1)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 26 Floppy Connector (FLOPPY1)
8 ATX Power Connector (ATXPWR1) 27 Serial Port Connector (COM1)
9 USB_PW1 Jumper 28 Internal Audio Connector: CD1 (Black)
10 Primary IDE Connector (IDE1, Blue) 29 Front Panel Audio Header
11 USB 2.0 Header (USB6_7, Blue) (HD_AUDIO1, White)
12 Chassis Fan Connector (CHA_FAN1) 30 PCI Slots (PCI1-2)
13 USB 2.0 Header (USB8_9, Blue) 31 PCI Express 2.0 x16 Slot (PCIE2; Blue)
14 Southbridge Controller 32 PCI Express 2.0 x1 Slot (PCIE1; White)
15 SPI Flash Memory (8Mb) 33 Power Fan Connector (PWR_FAN1)
16 SATAII Connector (SATAII_5 (PORT 4), Blue) 34 Northbridge Controller
17 SATAII Connector (SATAII_4 (PORT 3), Blue) 35 USB_PW2 Jumper
18 SATAII Connector (SATAII_3 (PORT 2), Blue)
