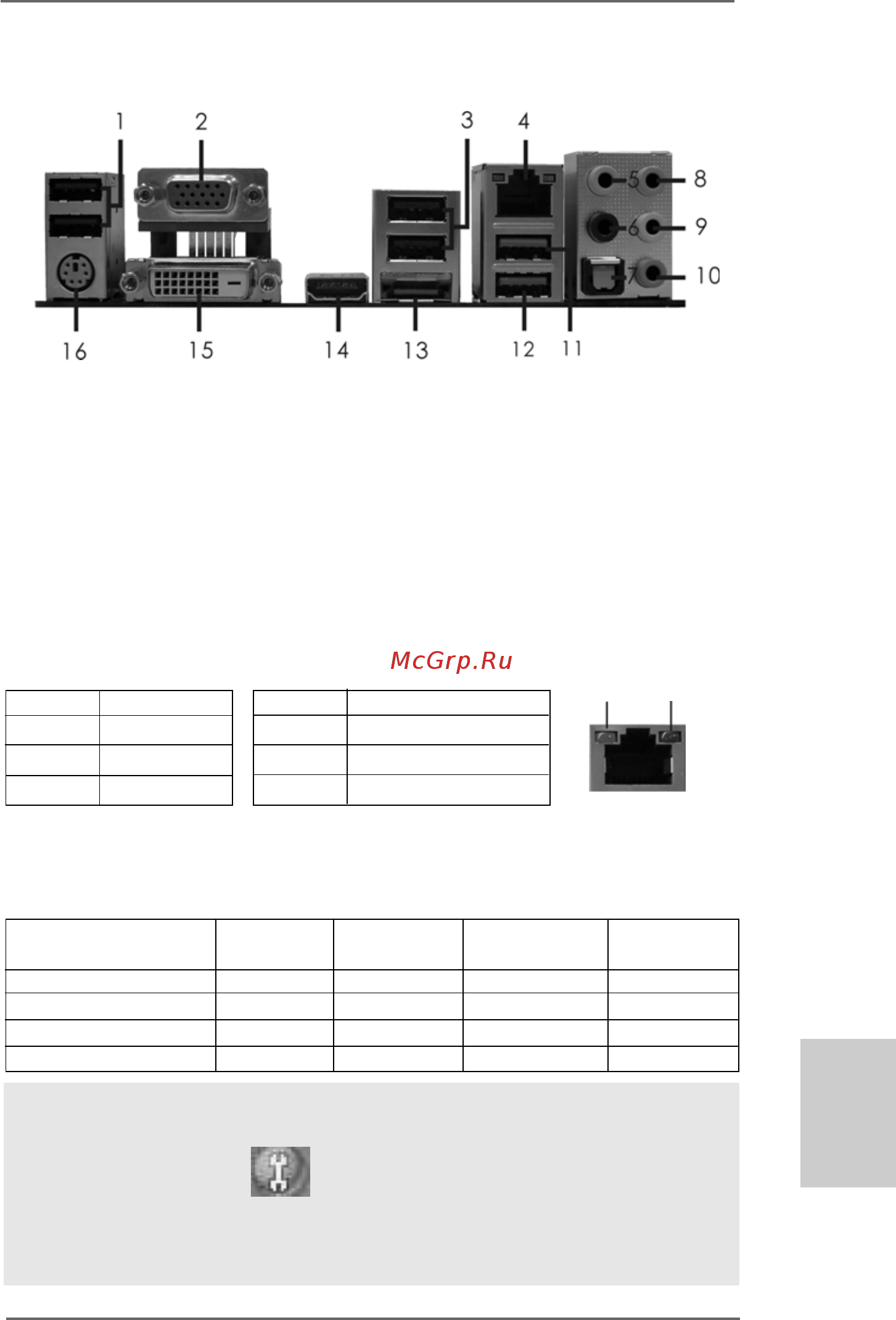

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In

(No. 9) (No. 6) (No. 5) (No. 8)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 USB 2.0 Ports (USB23) ** 9 Front Speaker (Lime)

2 VGA/D-Sub Port 10 Microphone (Pink)

3 USB 2.0 Ports (USB45) 11 USB 2.0 Port (USB0)

* 4 LAN RJ-45 Port 12 USB 3.0 Port (USB1)

5 Central / Bass (Orange) 13 eSATAII Port (eSATA1)

6 Rear Speaker (Black) 14 VGA/HDMI Port

7 Optical SPDIF Out Port 15 VGA/DVI-D Port

8 Line In (Light Blue) 16 PS/2 Keyboard Port (Purple)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.
