ASRock 880GM-LE Motherboard

EnglishEnglish

English

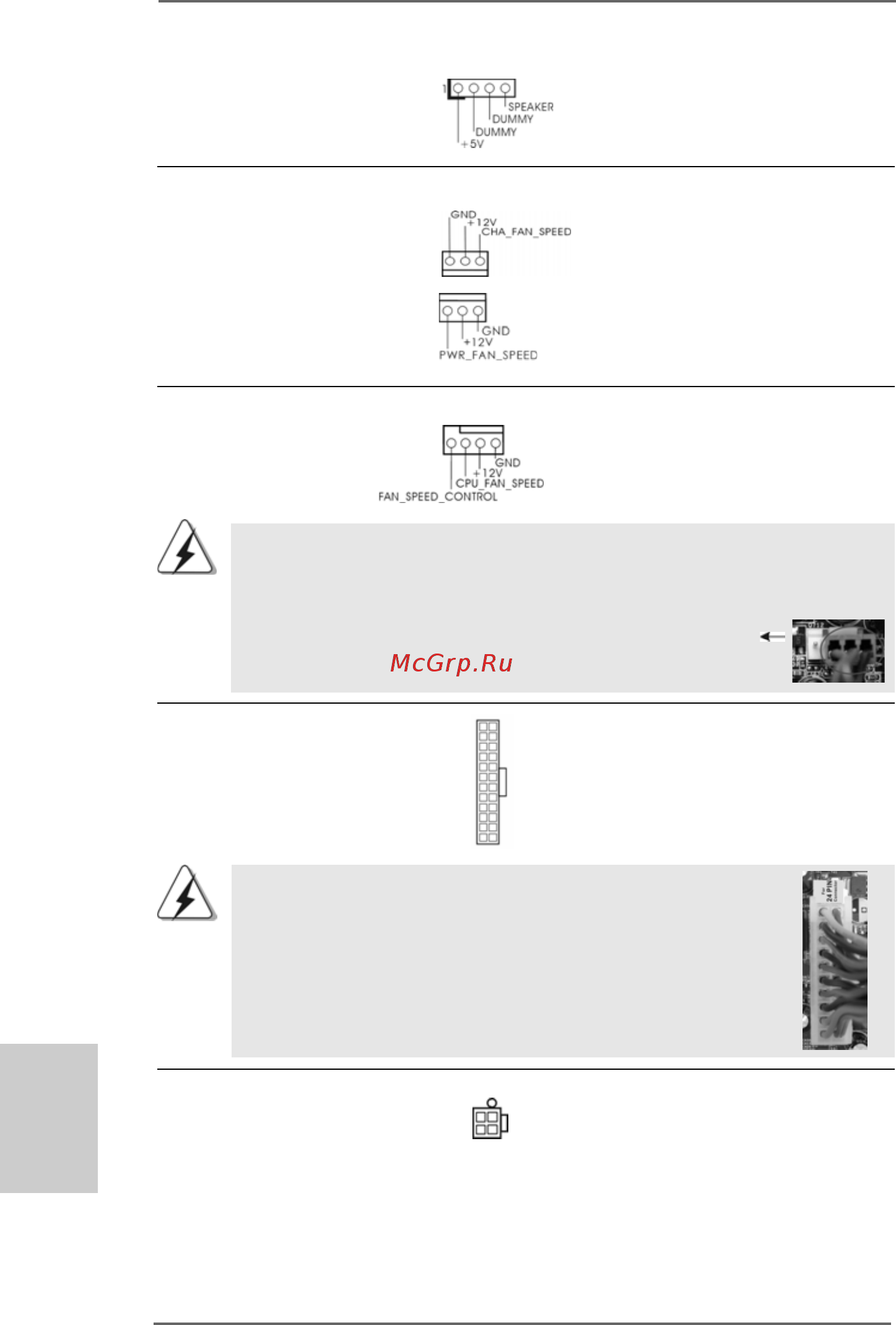

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1) cable to this connector and

(see p.2 No. 6) match the black wire to the

ground pin.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.2 No. 15)

4 3 2 1

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1) supply to this connector.

(see p.2 No. 8)

ATX 12V Power Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.2 No. 1) ATX 12V plug to this connector.

Failing to do so will cause power

up failure.

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your power

supply along with Pin 1 and Pin 13.

Chassis and Power Fan Connectors Please connect the fan cables

(3-pin CHA_FAN1) to the fan connectors and

(see p.2 No. 20) match the black wire to the

ground pin.

(3-pin PWR_FAN1)

(see p.2 No. 7)
