ASRock 880GXH/USB3 Motherboard

EnglishEnglish

English

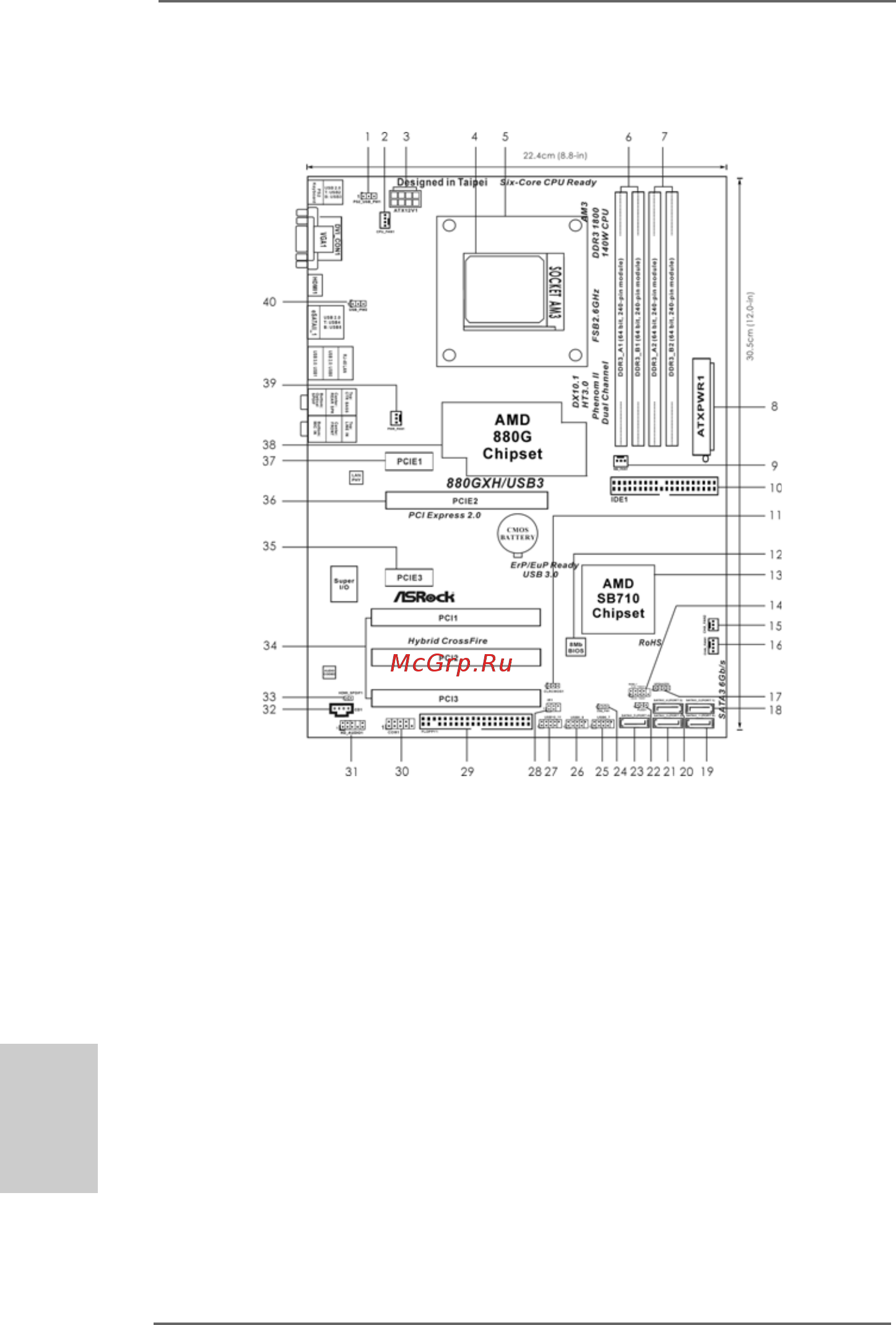

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 21 SATAII Connector (SATAII_3 (PORT 2), Blue)

2 CPU Fan Connector (CPU_FAN1) 22 Power LED Header (PLED1)

3 ATX 12V Power Connector (ATX12V1) 23 SATAII Connector (SATAII_5 (PORT 4), Blue)

4 AM3 CPU Socket 24 USB_PW1 Jumper

5 CPU Heatsink Retention Module 25 USB 2.0 Header (USB6_7, Blue)

6 2 x 240-pin DDR3 DIMM Slots 26 USB 2.0 Header (USB8_9, Blue)

(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 27 USB 2.0 Header (USB10_11, Blue)

7 2 x 240-pin DDR3 DIMM Slots 28 Infrared Module Header (IR1)

(Dual Channel B: DDR3_A2, DDR3_B2; White) 29 Floppy Connector (FLOPPY1)

8 ATX Power Connector (ATXPWR1) 30 Serial Port Connector (COM1)

9 Northbridge Fan Connector (NB_FAN1) 31 Front Panel Audio Header

10 Primary IDE Connector (IDE1, Blue) (HD_AUDIO1, White)

11 Clear CMOS Jumper (CLRCMOS1) 32 Internal Audio Connector: CD1 (Black)

12 SPI Flash Memory (8Mb) 33 HDMI_SPDIF Header

13 Southbridge Controller (HDMI_SPDIF1, White)

14 System Panel Header (PANEL1, White) 34 PCI Slots (PCI1-3)

15 Chassis Fan Connector (CHA_FAN2) 35 PCI Express 2.0 x1 Slot (PCIE3; White)

16 Chassis Fan Connector (CHA_FAN1) 36 PCI Express 2.0 x16 Slot (PCIE2; Blue)

17 Chassis Speaker Header (SPEAKER 1, White) 37 PCI Express 2.0 x1 Slot (PCIE1; White)

18 SATAII Connector (SATAII_2 (PORT 1), Blue) 38 Northbridge Controller

19 SATAII Connector (SATAII_1 (PORT 0), Blue) 39 Power Fan Connector (PWR_FAN1)

20 SATAII Connector (SATAII_4 (PORT 3), Blue) 40 USB_PW2 Jumper
