3030
3030
30

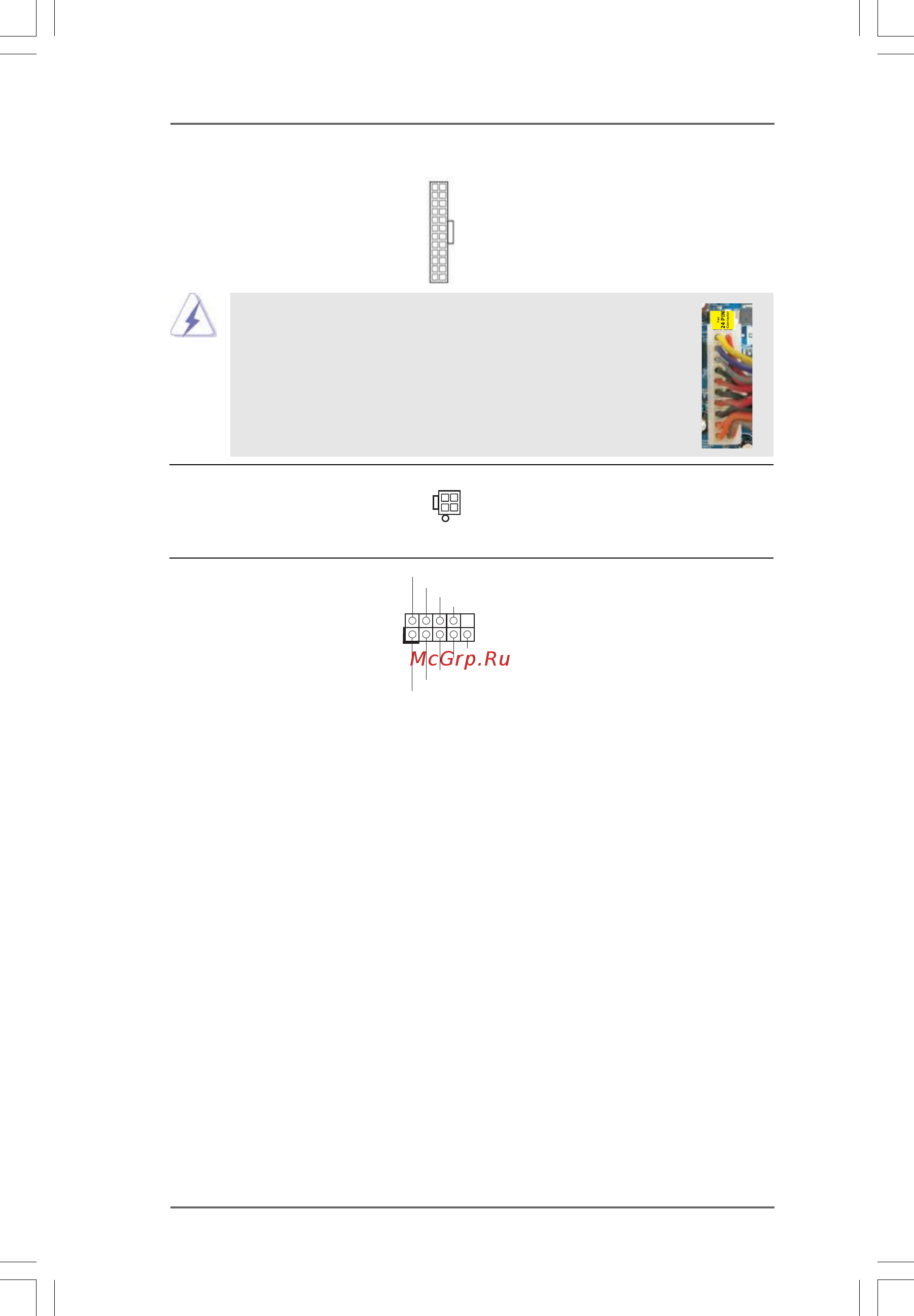

20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.13 No.26)
CCTS#1
DDS R#1
DDTR#1
RRXD1
DDCD#1
TTXD1
GND
RRTS #1
RRI#1
1
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1) power supply to this connector.
(see p.13 No. 2)
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.13 No. 8)
12
1
24
13
12
1
24
13
