ASRock A790GMH/128M Motherboard

EnglishEnglish

English

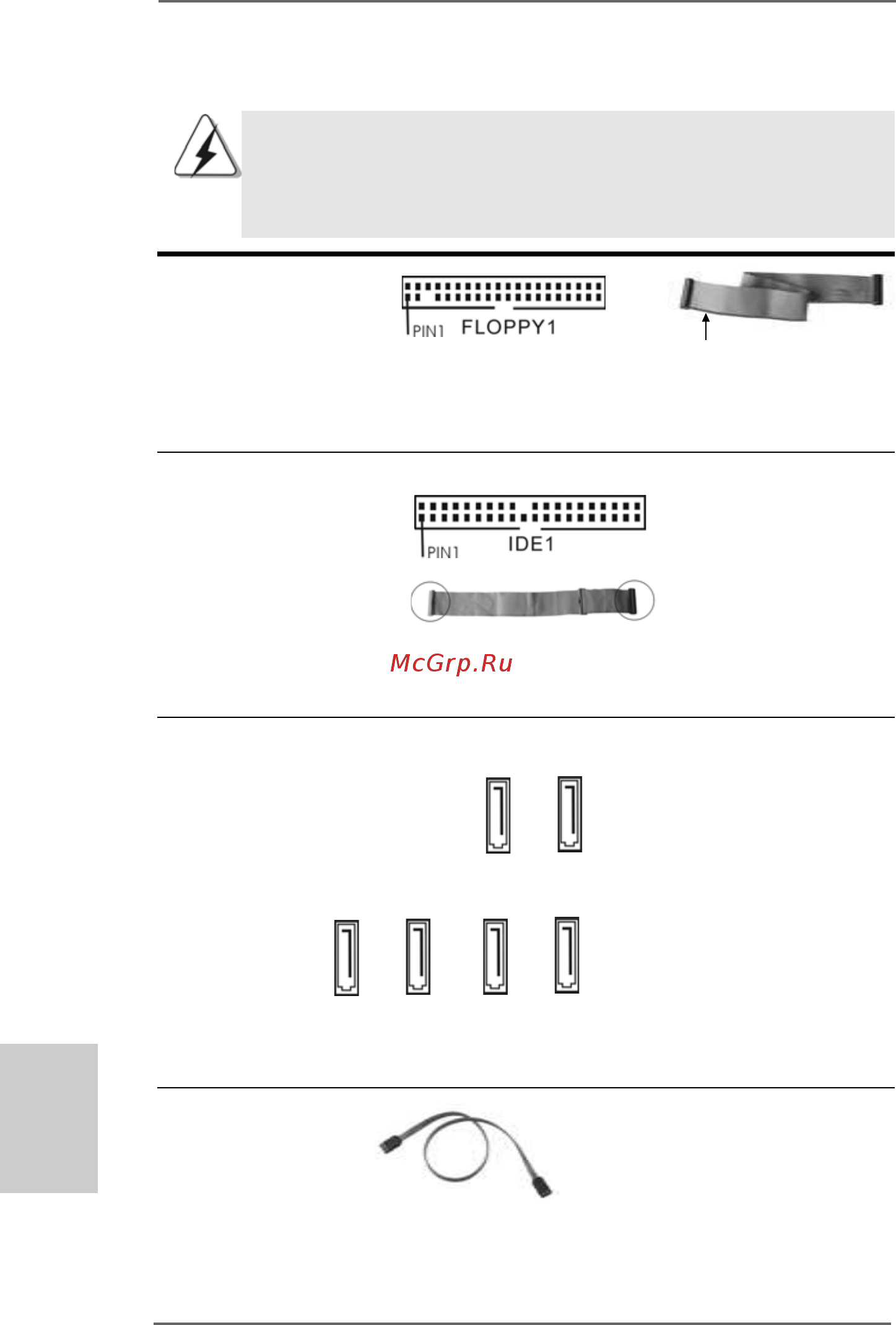

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

•

Floppy Connector

(33-pin FLOPPY1)

(see p.2 No. 25)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 9)

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These six Serial ATAII (SATAII)

(SATAII_1 (PORT 0): connectors support SATAII

see p.2, No. 17) or SATA hard disk for internal

(SATAII_2 (PORT 1): storage devices. The current

see p.2, No. 16) SATAII interface allows up to 3.0

(SATAII_3 (PORT 2): Gb/s data transfer rate.

see p.2, No. 15)

(SATAII_4 (PORT 3):

see p.2, No. 14)

(SATAII_5 (PORT 4):

see p.2, No. 11)

(SATAII_6 (PORT 5):

see p.2, No. 10)

connect the black end

to the IDE devices

connect the blue end

to the motherboard

80-conductor ATA 66/100/133 cable

the red-striped side to Pin1

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on this motherboard.

SATAII_5 SATAII_6

(PORT 4) (PORT 5)

SATAII_3 SATAII_4

(PORT 2) (PORT 3)

SATAII_1 SATAII_2

(PORT 0) (PORT 1)
