Connect one end of the eSATAII
device cable to eSATAII device
Connect the other end of the eSATAII
device cable to eSATAII port of the I/O
shield
2. Use the eSATAII device cable to connect eSATAII device and the eSATAII port
of the I/O shield according to the eSATAII connector that you connect the
SATA data cable.
Connect the SATA data cable
to the orange SATAII
connector (SATAII_6)
Connect the SATA
data cable to the
eSATAII connector
(eSATAII_TOP)
1. In order to enable the eSATAII port of the I/O shield, you need to connect the
orange SATAII connector (SATAII_6; see p.13 No.15) and the eSATAII
connector (eSATAII_TOP; see p.13 No.1) with a SATA data cable first.
eSATAII_TOP

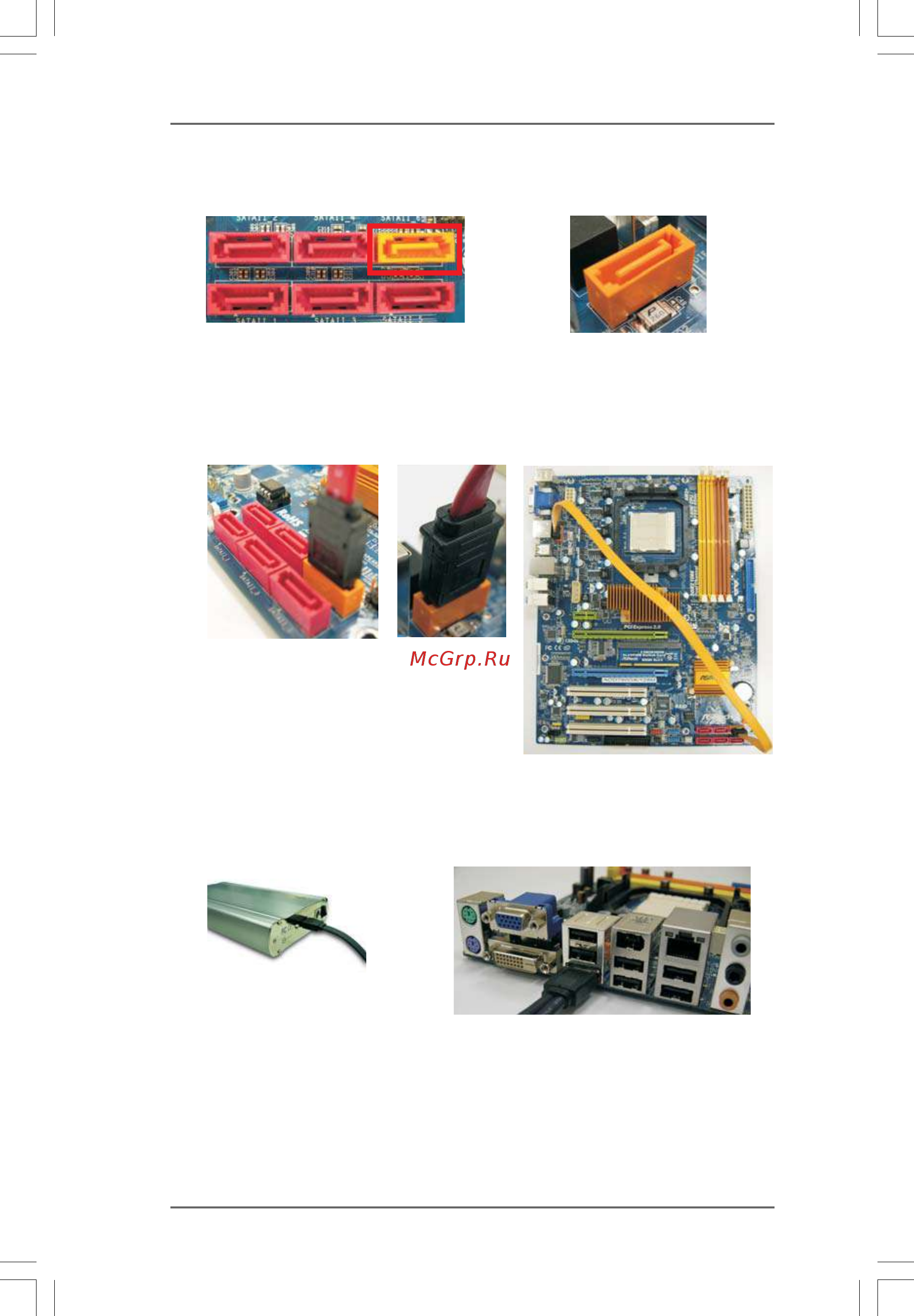

How to install eSATAII?
SATAII_6
