ASRock 760GM-GS3 / 760GM-S3 Motherboard

EnglishEnglish

English

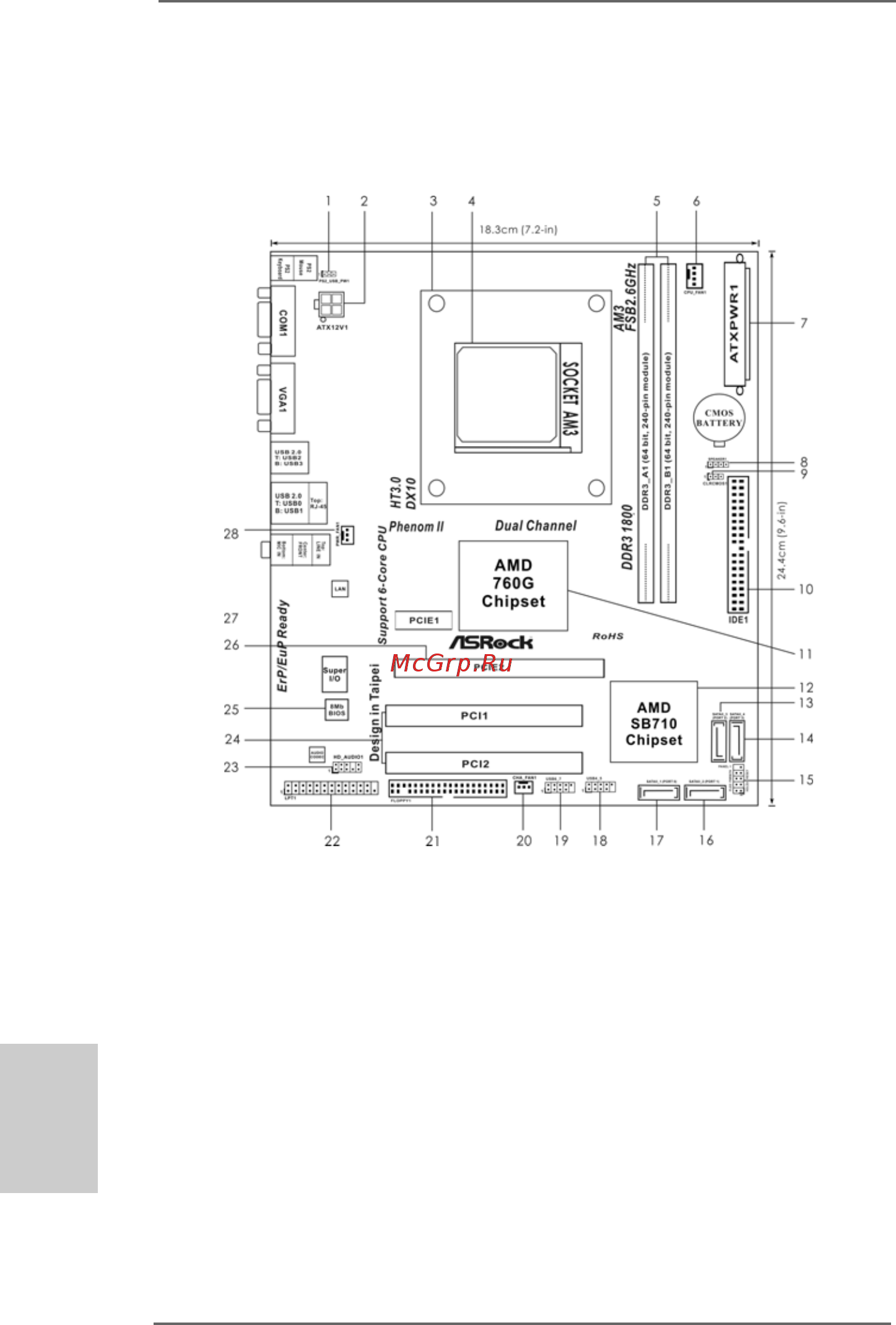

Motherboard LayoutMotherboard Layout

Motherboard Layout

(7680GM-(7680GM-

(7680GM-

GS3 / 760GM-S3)GS3 / 760GM-S3)

GS3 / 760GM-S3)

1 PS2_USB_PW1 Jumper 15 System Panel Header (PANEL1, White)

2 ATX 12V Power Connector (ATX12V1) 16 Secondary SATAII Connector

3 CPU Heatsink Retention Module (SATAII_2 (PORT 1))

4 AM3 CPU Socket 17 Primary SATAII Connector

5 2 x 240-pin DDR3 DIMM Slots (SATAII_1 (PORT 0))

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 18 USB 2.0 Header (USB4_5, Blue)

6 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB6_7, Blue)

7 ATX Power Connector (ATXPWR1) 20 Chassis Fan Connector (CHA_FAN1)

8 Chassis Speaker Header 21 Floppy Connector (FLOPPY1)

(SPEAKER 1, White) 22 Print Port Header (LPT1, White)

9 Clear CMOS Jumper (CLRCMOS1) 23 Front Panel Audio Header

10 Primary IDE Connector (IDE1, Blue) (HD_AUDIO1, White)

11 Northbridge Controller 24 PCI Slots (PCI1- 2)

12 Southbridge Controller 25 SPI Flash Memory (8Mb)

13 Third SATAII Connector (SATAII_3 (PORT 2)) 26 PCI Express 2.0 x16 Slot (PCIE2; Blue)

14 Fourth SATAII Connector (SATAII_4 (PORT 3)) 27 PCI Express 2.0 x1 Slot (PCIE1; Blue)

28 Power Fan Connector (PWR_FAN1)
