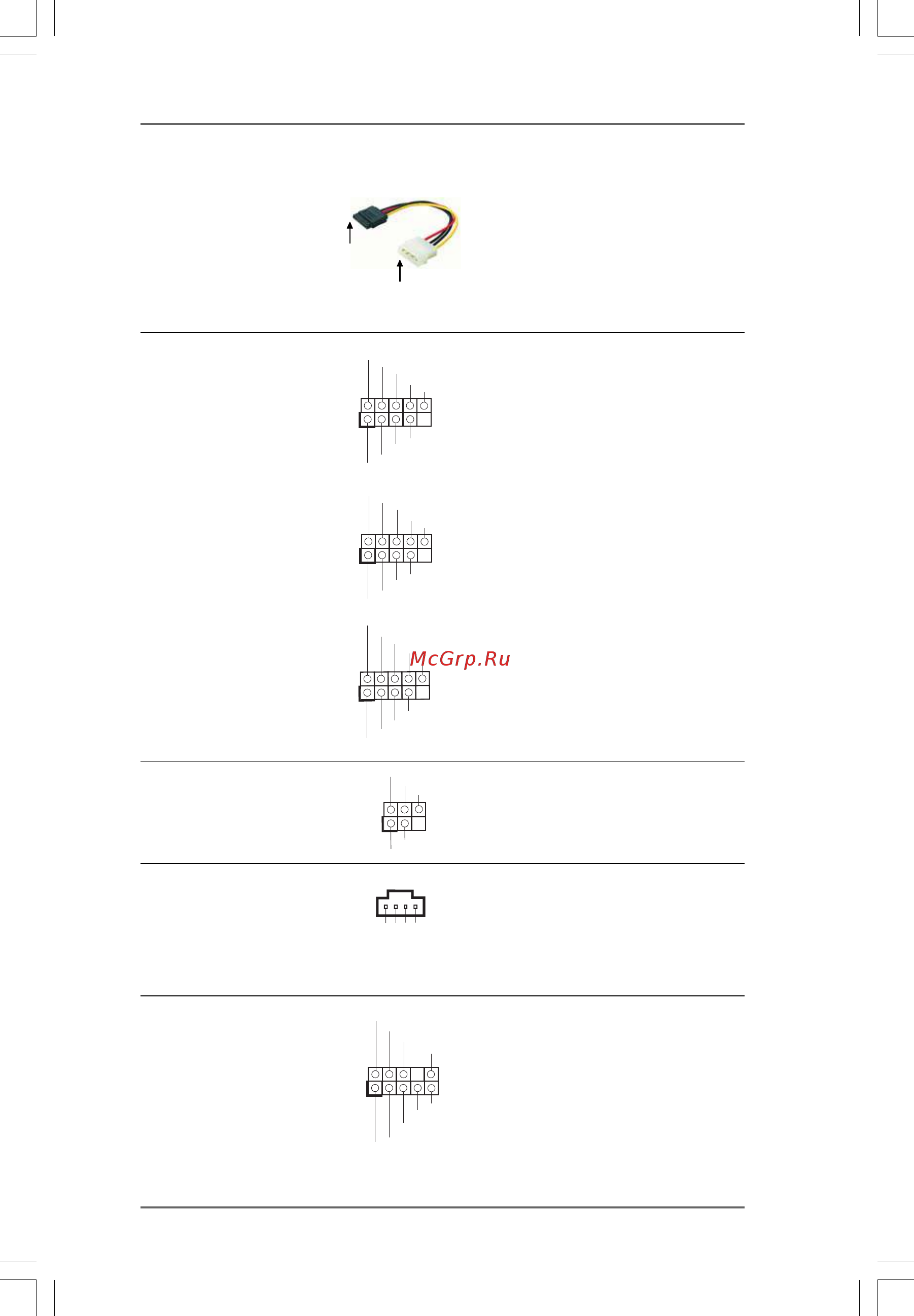

1919
1919
19
CD-L
GND
GND
CD-R
CD1
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input
(CD1: see p.10 No. 30) from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
J_SENSE
OUT2_L
1
MIC _R ET
P R ESENC E#
GND
OUT2_R
MIC 2_R
MIC 2_L
OUT_RET
Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.10, No. 29) convenient connection and
control of audio devices.
USB 2.0 Headers Besides five default USB 2.0
(9-pin USB10_11) ports on the I/O panel, there are
(see p.10 No. 23) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.10 No. 21)
(9-pin USB6_7)
(see p.10 No. 22)
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.10 No. 26) and receiving infrared module.
D U MMY
GND
+5V
IRTX
IRRX
1
USB_PWR
USB_PWR
P +7
P-7
P +6
P-6
GND
GND
D U MMY
1
1
USB _PWR
P-8
GND
D UMMY
USB _PWR
P+8
GND
P-9
P+9
1
USB_P WR
P-10
GND
D U MMY
USB_P WR
P +10
GND
P-11
P +11
Serial ATA (SATA) Please connect the black end of
Power Cable SATA power cable to the power
(Optional) connector on each drive. Then
connect the white end of SATA
power cable to the power
connector of the power supply.
connect to the SATA HDD
power connector
connect to the
power supply
