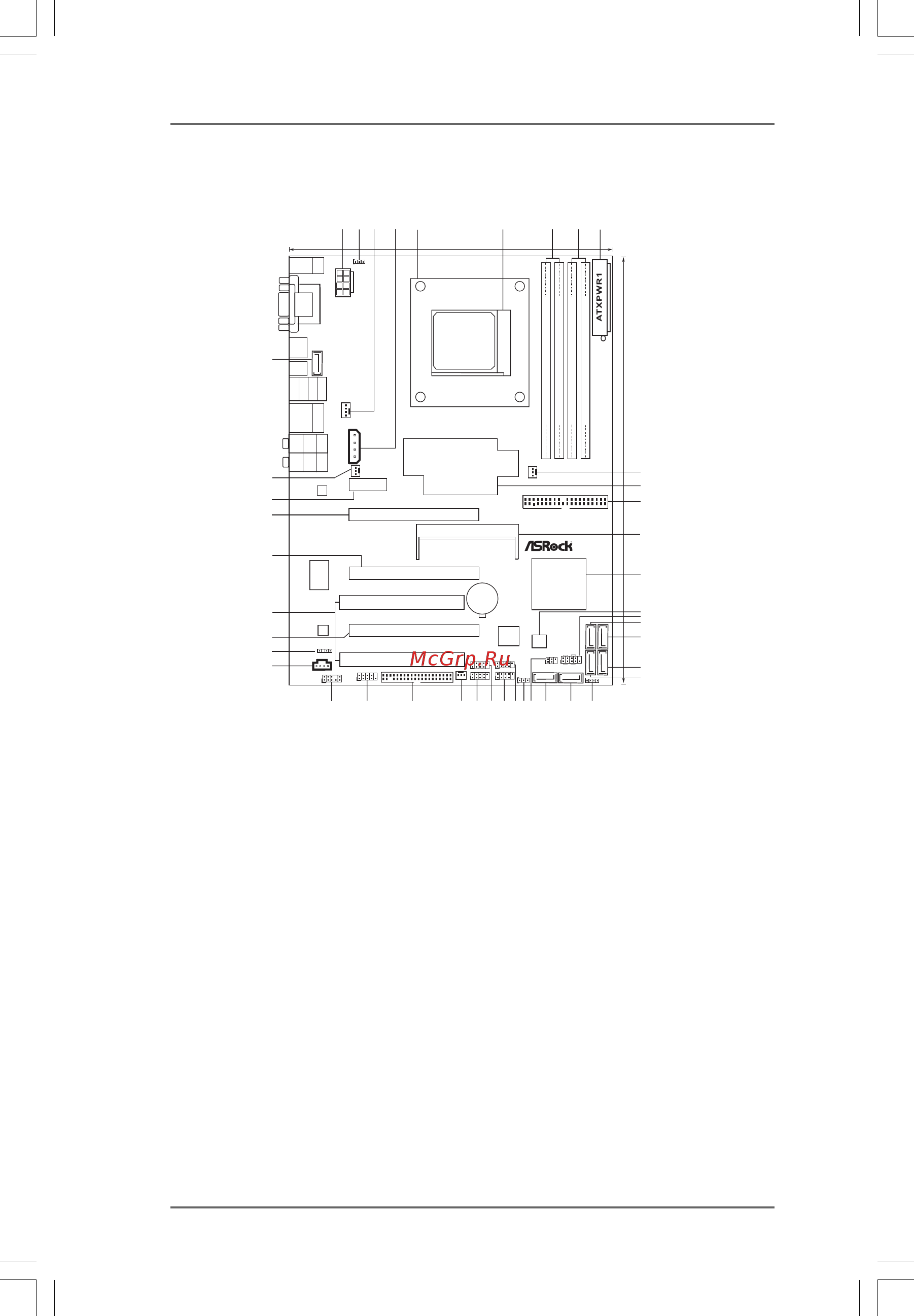

1.7 Motherboard Layout
IDE1
SOCKET AM3
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
FSB800
DDR3_A2 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
AMD
SB710
Chipset
PS2_USB_PW1
1
ATX12V1
CPU_FAN1
8Mb
BIOS
CMOS
BATTERY
CLRCMOS1
COM1
LAN
PHY
1
AUDIO
CODEC
Super
I/O
IR1
1
CD1
HD_AUDIO1
1
PCIE1
1
HDMI_SPDIF1
FLOPPY1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
USB6_7
1
SATAII_6
22.4cm (8.8-in)
30.5cm (12.0-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
2728
29
3031
3233
34
35
M3A780GXH/128M
SATAII_5
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top :
RJ-45
Dual Channel
PCI Express 2.0
RAID
RoHS
VGA1
DVI_CON1
HDMI1
SPDIF_O1
PCI1
NB_FAN1
PWR_FAN1
Sideport memory 128MB
Hybrid CrossFire
36
37
USB 2.0
T: U SB 4
B: USB5
USB2
USB3
IEEE 1394
eSATAII
PCIE2
PCIE3
PCIE4
PCI2
VIA
VT6803S
USB8_9
1
USB10_11
1
SLI/XFIRE_PWR1
FRONT_1394
1
SATAII_1_2
SATAII_3_4
HT3.0
FSB2.6GHz
140W CPU
AM3
CrossFireX
1394a
eSATAII_TOP
DDR3 1600
1
38
39
40
41
42
AMD
780G
Chipset
1 ATX 12V Power Connector (ATX12V1) 23 Sixth SATAII Connector
2 PS2_USB_PW1 Jumper (SATAII_6, Orange)
3 CPU Fan Connector (CPU_FAN1) 24 Infrared Module Header (IR1)
4 SLI / XFIRE Power Connector 25 Clear CMOS Jumper (CLRCMOS1)
5 CPU Heatsink Retention Module 26 Front Panel IEEE 1394 Header
6 AM3 941-Pin CPU Socket (FRONT_1394)
7 2 x 240-pin DDR3 DIMM Slots 27 USB 2.0 Header (USB10_11, Blue)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 28 USB 2.0 Header (USB6_7, Blue)
8 2 x 240-pin DDR3 DIMM Slots 29 USB 2.0 Header (USB8_9, Blue)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 30 Chassis Fan Connector (CHA_FAN1)
9 ATX Power Connector (ATXPWR1) 31 Floppy Connector (FLOPPY1)
10 North Bridge Fan Connector (NB_FAN1) 32 Serial Port Connector (COM1)
11 Northbridge Controller 33 Front Panel Audio Header
12 Primary IDE Connector (IDE1, Blue) (HD_AUDIO1, Lime)
13 SLI/XFire Switch Card Retention Slot 34 Internal Audio Connector: CD1 (Black)
14 Southbridge Controller 35 HDMI_SPDIF Header
15 SPI Flash Memory (8Mb) (HDMI_SPDIF1, Yellow)
16 System Panel Header (PANEL1, Orange) 36 PCI Express 2.0 x16 Slot
17 Primary SATAII Connector (SATAII_1, Red) (PCIE4; Orange)
18 Secondary SATAII Connector (SATAII_2, Red) 37 PCI Slots (PCI1- 2)
19 Fourth SATAII Connector (SATAII_4, Red) 38 PCI Express 2.0 x16 Slot (PCIE3; Blue)
20 Third SATAII Connector (SATAII_3, Red) 39 PCI Express 2.0 x16 Slot (PCIE2; Green)
21 Chassis Speaker Header 40 PCI Express 2.0 x1 Slot (PCIE1; Green)
(SPEAKER 1, Purple) 41 Power Fan Connector (PWR_FAN1)
22 Fifth SATAII Connector (SATAII_5, Red) 42 eSATAII Connector (eSATAII_TOP)
