ASRock M3A780GXH/128M Motherboard

EnglishEnglish

English

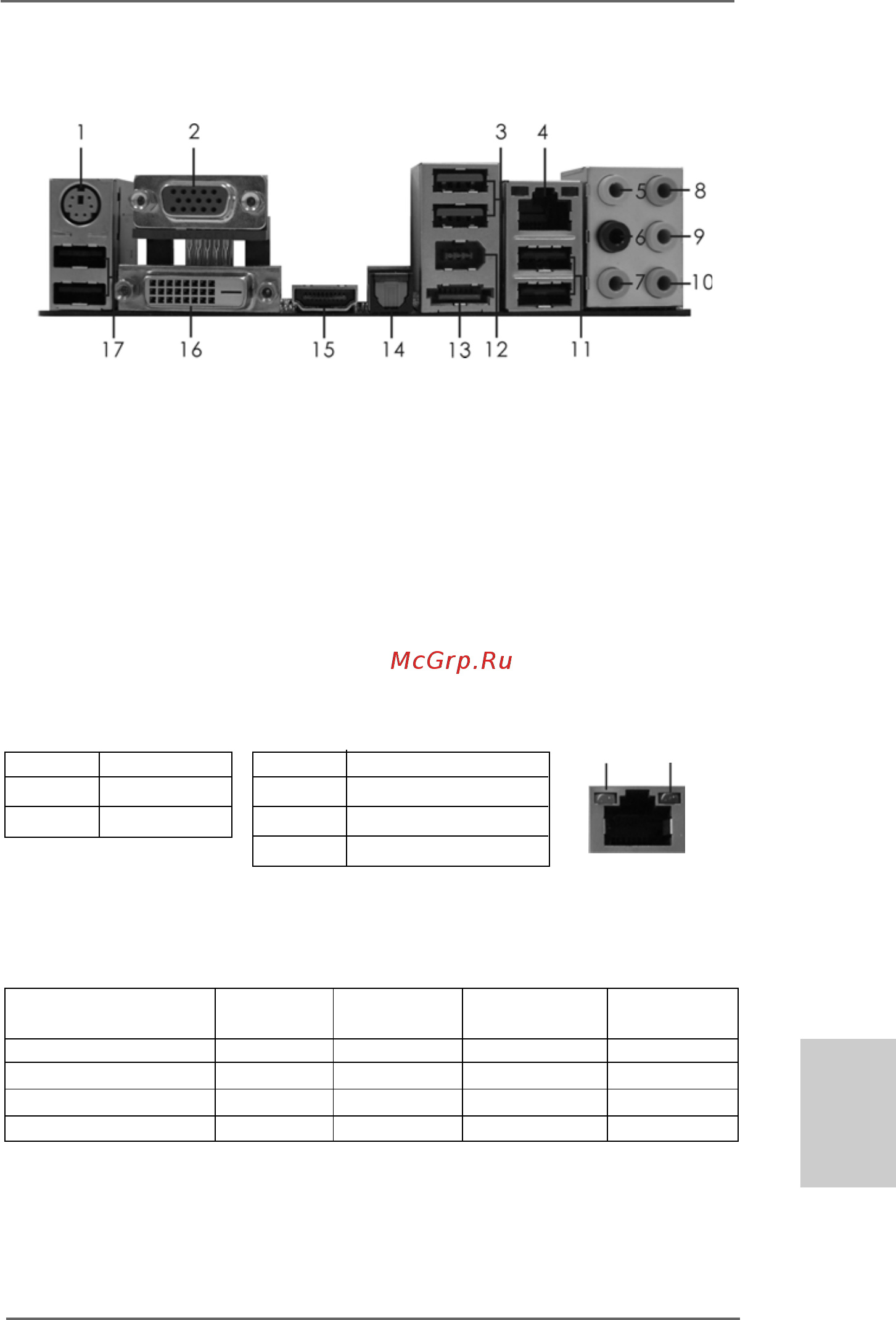

I/O PI/O P

I/O P

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 9) (No. 6) (No. 7) (No. 5)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

1 PS/2 Keyboard Port (Purple) 10 Microphone (Pink)

2 VGA/D-Sub Port 11 USB 2.0 Ports (USB01)

3 USB 2.0 Ports (USB23) 12 IEEE 1394 Port

* 4 LAN RJ-45 Port 13 eSATAII Port

5 Side Speaker (Gray) 14 Optical SPDIF Out Port

6 Rear Speaker (Black) *** 15 HDMI Port

7 Central / Bass (Orange) 16 VGA/DVI-D Port

8 Line In (Light Blue) 17 USB 2.0 Ports (USB45)

** 9 Front Speaker (Lime)

*** To support AC3 audio format with HDMI Audio under Vista

, please install the HDMI audio

driver in XP support CD AAX780GX-10.

The driver is located under the path: ..\Drivers\NB Audio\REALTEK\XP64_XP(R1.68)

And note for LPCM support up to stereo 2 channels only.
