ASRock K10N78M Pro Motherboard

EnglishEnglish

English

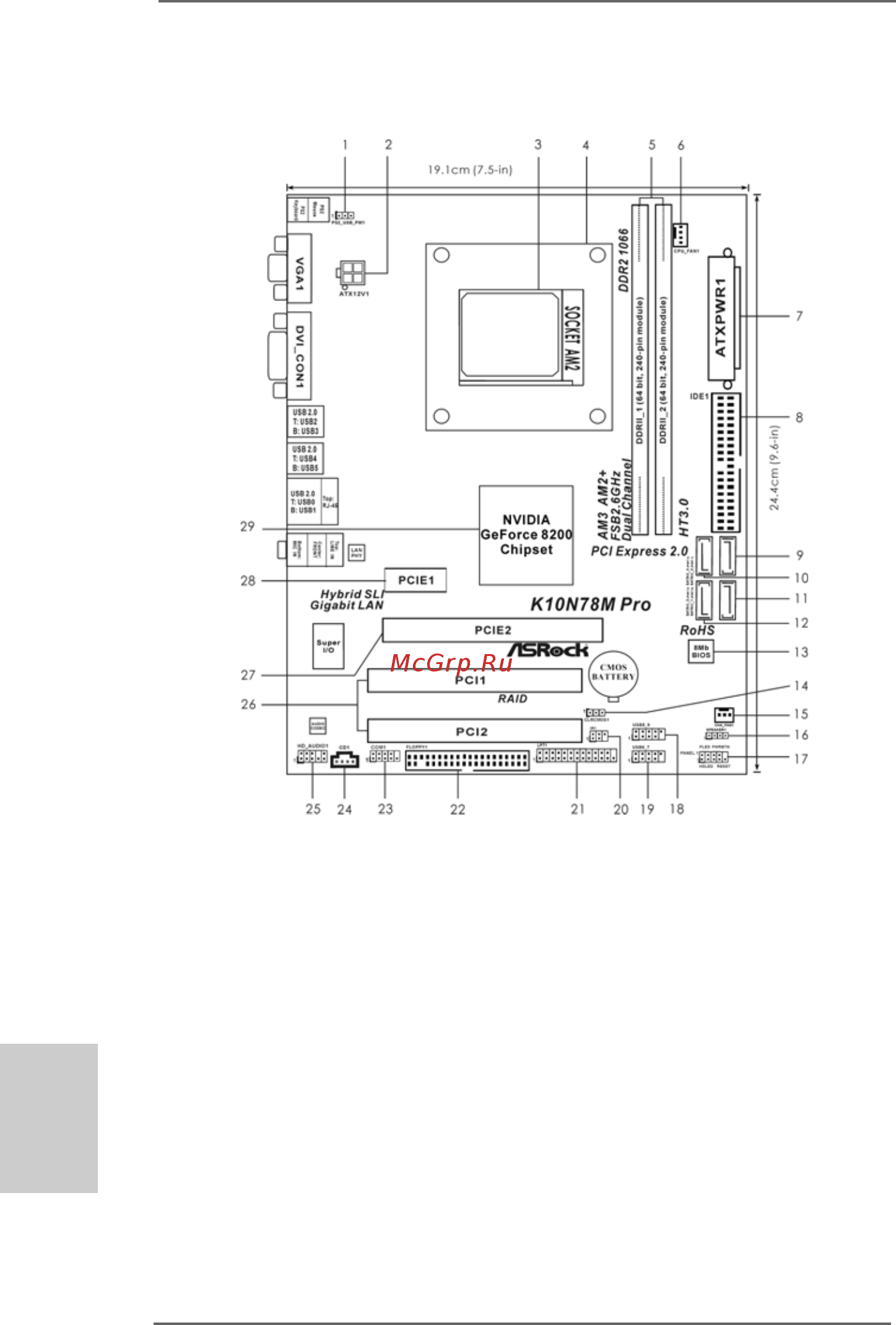

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 16 Chassis Speaker Header

2 ATX 12V Power Connector (ATX12V1) (SPEAKER 1, Purple)

3 AM2 940-Pin CPU Socket 17 System Panel Header (PANEL1, Orange)

4 CPU Heatsink Retention Module 18 USB 2.0 Header (USB8_9, Blue)

5 2 x 240-pin DDR2 DIMM Slots 19 USB 2.0 Header (USB6_7, Blue)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 20 Infrared Module Header (IR1)

6 CPU Fan Connector (CPU_FAN1) 21 Print Port Header (LPT1, Purple)

7 ATX Power Connector (ATXPWR1) 22 Floppy Connector (FLOPPY1)

8 Primary IDE Connector (IDE1, Blue) 23 Serial Port Connector (COM1)

9 SATAII Connector (SATAII_2 (PORT 1), Red) 24 Internal Audio Connector: CD1 (Black)

10 SATAII Connector (SATAII_4 (PORT 3), Red) 25 Front Panel Audio Header

11 SATAII Connector (SATAII_1 (PORT 0), Red) (HD_AUDIO1, Lime)

12 SATAII Connector (SATAII_3 (PORT 2), Red) 26 PCI Slots (PCI1- 2)

13 SPI BIOS Chip 27 PCI Express x16 Slot (PCIE2, Green)

14 Clear CMOS Jumper (CLRCMOS1) 28 PCI Express x1 Slot (PCIE1, White)

15 Chassis Fan Connector (CHA_FAN1) 29 NVIDIA GeForce 8100 Chipset
