ASRock K10N7SLI [2/196] Motherboard l motherboard l motherboard l motherboard l motherboard layout ayout ayout ayout ayout

ASRock K10N7SLI Motherboard

EnglishEnglish

English

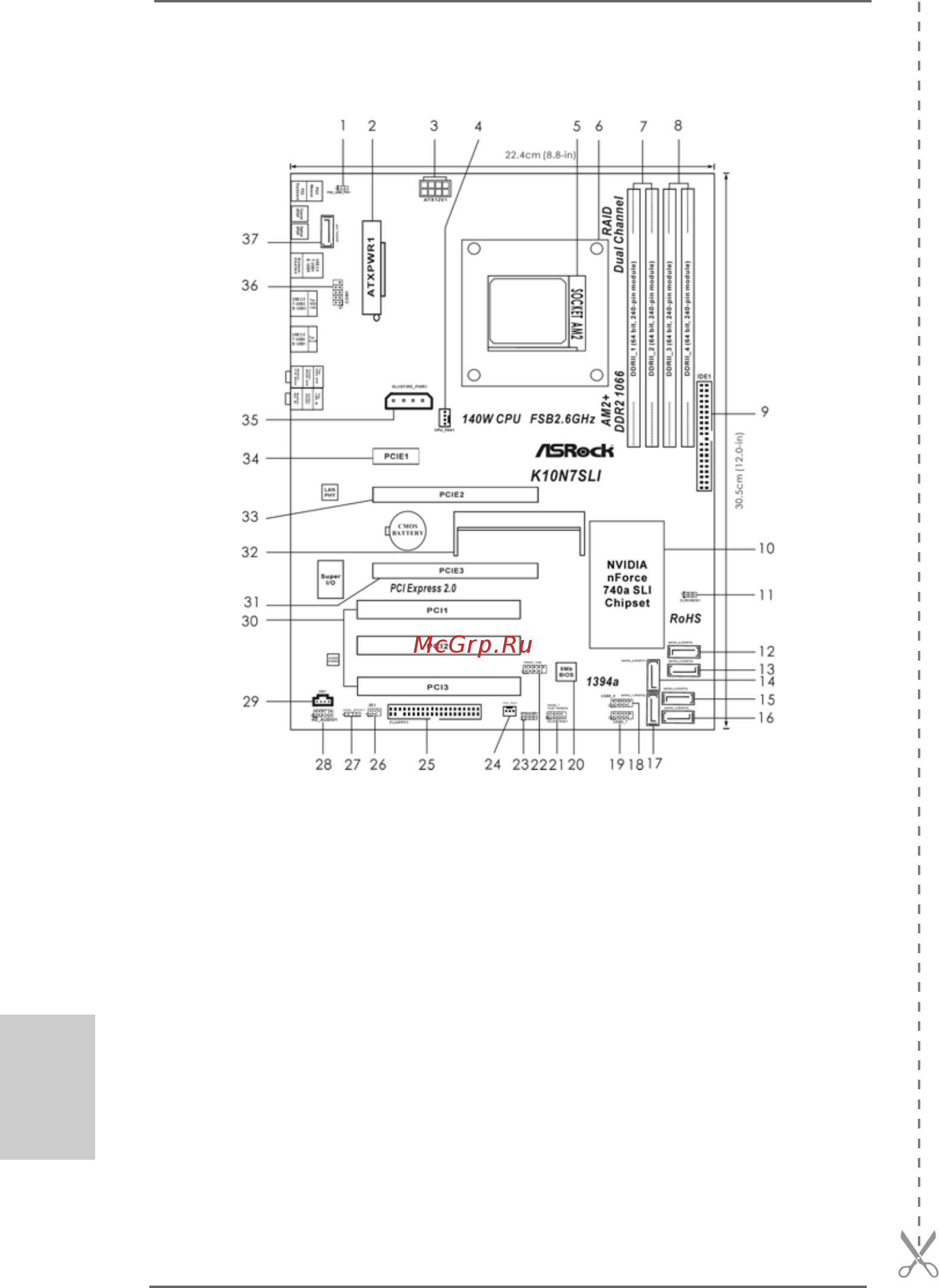

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PW1 Jumper 21 System Panel Header (PANEL1, Orange)

2 ATX Power Connector (ATXPWR1) 22 Front Panel IEEE 1394 Header

3 ATX 12V Power Connector (ATX12V1) (FRONT_1394, Red)

4 CPU Fan Connector (CPU_FAN1) 23 Chassis Speaker Header

5 AM2 940-Pin CPU Socket (SPEAKER 1, Purple)

6 CPU Heatsink Retention Module 24 Chassis Fan Connector (CHA_FAN1)

7 2 x 240-pin DDR2 DIMM Slots 25 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 Infrared Module Header (IR1)

8 2 x 240-pin DDR2 DIMM Slots 27 HDMI_SPDIF Header

(Dual Channel B: DDRII_3, DDRII_4; Orange) (HDMI_SPDIF1, Yellow)

9 Primary IDE Connector (IDE1, Blue) 28 Front Panel Audio Header

10 NVIDIA nForce 740a SLI Chipset (HD_AUDIO1, Lime)

11 Clear CMOS Jumper (CLRCMOS1) 29 Internal Audio Connector: CD1 (Black)

12 SATAII Connector (SATAII_6 (PORT5), Orange) 30 PCI Slots (PCI1- 3)

13 SATAII Connector (SATAII_5 (PORT4), Red) 31 PCI Express x16 Slot (PCIE3, Blue)

14 SATAII Connector (SATAII_2 (PORT1), Red) 32 SLI/XFire Switch Card Retention Slot

15 SATAII Connector (SATAII_4 (PORT3), Red) 33 PCI Express x16 Slot (PCIE2, Green)

16 SATAII Connector (SATAII_3 (PORT2), Red) 34 PCI Express x1 Slot (PCIE1, White)

17 SATAII Connector (SATAII_1 (PORT0), Red) 35 SLI / XFIRE Power Connector

18 USB 2.0 Header (USB8_9, Blue) 36 COM Port Header (COM1)

19 USB 2.0 Header (USB6_7, Blue) 37 eSATAII Connector (eSATAII_TOP, Orange)

20 SPI BIOS Chip
