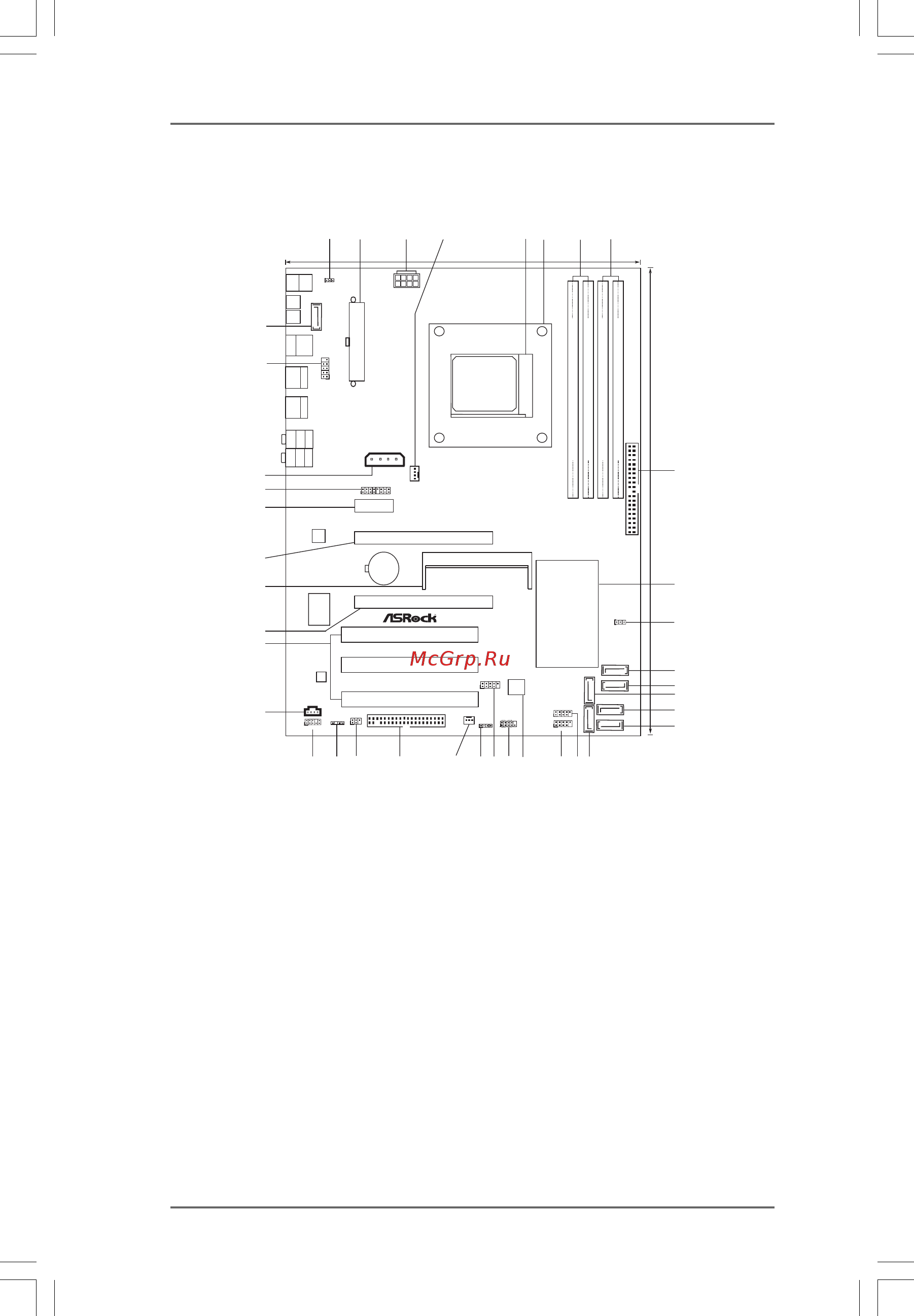

1.5 Motherboard Layout1.5 Motherboard Layout
1.5 Motherboard Layout1.5 Motherboard Layout
1.5 Motherboard Layout
Super
I/O
PCI
EXPRESS
CMOS
BATTERY
ATXPWR1
SOCKET AM2
K10N750SLI-110dB
CD1
NVIDIA
nForce
750a SLI
Chipset
PS2_USB_PW1
1
IDE1
FSB800
DDRII_1 (64 bit, 240-pin module)
DDRII_2 (64 bit, 240-pin module)
FSB800
DDRII_3 (64 bit, 240-pin module)
DDRII_4 (64 bit, 240-pin module)
PCIE1
PCI1
LAN
PHY
AUDIO
CODEC
1
CLRCMOS1
Dual Channel
RAID
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
FLOPPY1
HD_AUDIO1
1
RoHS
30.5cm (12.0-in)
22.4cm (8.8-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
1920
21
22
23
24
25
26
27
28
PCIE2
USB6_7
1
1
HDMI_SPDIF1
29
30
31
8Mb
BIOS
WIFI/E
1
SATAII_1(PORT0)
IR1
1
DDR2 800
AM2+
SATAII
FSB2.6GHz
PCI Express 2.0
ATX 12V1
SATAII_2(PORT1)
SATAII_6(PORT5)
SATAII_5(PORT4)
SATAII_4(PORT3)
SATAII_3(PORT2)
eSATAII_TOP
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
USB 2.0
T: U SB 0
B: USB1
Top:
RJ-45
USB 2.0
T: U SB 2
B: USB3
Top:
IEEE
1394
PCIE3
PCI2
PCI3
USB8_9
1
FRONT_1394
11
Gigabit LAN
SLI/XFIRE_PWR1
1394a
7.1CH HD
eSATAII
32
33
34
35
36
Coaxial
SPDIF
Optical
SPDIF
Bottom:
ESATAII
USB 2.0
T: U SB 4
B: USB5
38
37
COM1
1
1 PS2_USB_PW1 Jumper 20 SPI BIOS Chip
2 ATX Power Connector (ATXPWR1) 21 System Panel Header (PANEL1)
3 ATX 12V Power Connector (ATX12V1) 22 Front Panel IEEE 1394 Header
4 CPU Fan Connector (CPU_FAN1) (FRONT_1394)
5 AM2 940-Pin CPU Socket 23 Chassis Speaker Header (SPEAKER 1)
6 CPU Heatsink Retention Module 24 Chassis Fan Connector (CHA_FAN1)
7 2 x 240-pin DDR2 DIMM Slots 25 Floppy Connector (FLOPPY1)
(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 DeskExpress Hot Plug Detection Header
8 2 x 240-pin DDR2 DIMM Slots (IR1)
(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 HDMI_SPDIF Header (HDMI_SPDIF1)
9 Primary IDE Connector (IDE1, Blue) 28 Front Panel Audio Header (HD_AUDIO1)
10 NVIDIA nForce 750a SLI Chipset 29 Internal Audio Connector: CD1 (Black)
11 Clear CMOS Jumper (CLRCMOS1) 30 PCI Slots (PCI1- 3)
12 SATAII Connector (SATAII_6 (PORT5)) 31 PCI Express x16 Slot (PCIE3, Blue)
13 SATAII Connector (SATAII_5 (PORT4)) 32 SLI/XFire Switch Card Retention Slot
14 SATAII Connector (SATAII_2 (PORT1)) 33 PCI Express x16 Slot (PCIE2, Green)
15 SATAII Connector (SATAII_4 (PORT3)) 34 PCI Express x1 Slot (PCIE1, White)
16 SATAII Connector (SATAII_3 (PORT2)) 35 WiFi/E Header (WIFI/E)
17 SATAII Connector (SATAII_1 (PORT0)) 36 SLI / XFIRE Power Connector
18 USB 2.0 Header (USB8_9, Blue) 37 COM Port Header (COM1)
19 USB 2.0 Header (USB6_7, Blue) 38 eSATAII Connector (eSATAII_TOP)
