ASRock K10N750SLI-110dB Motherboard

EnglishEnglish

English

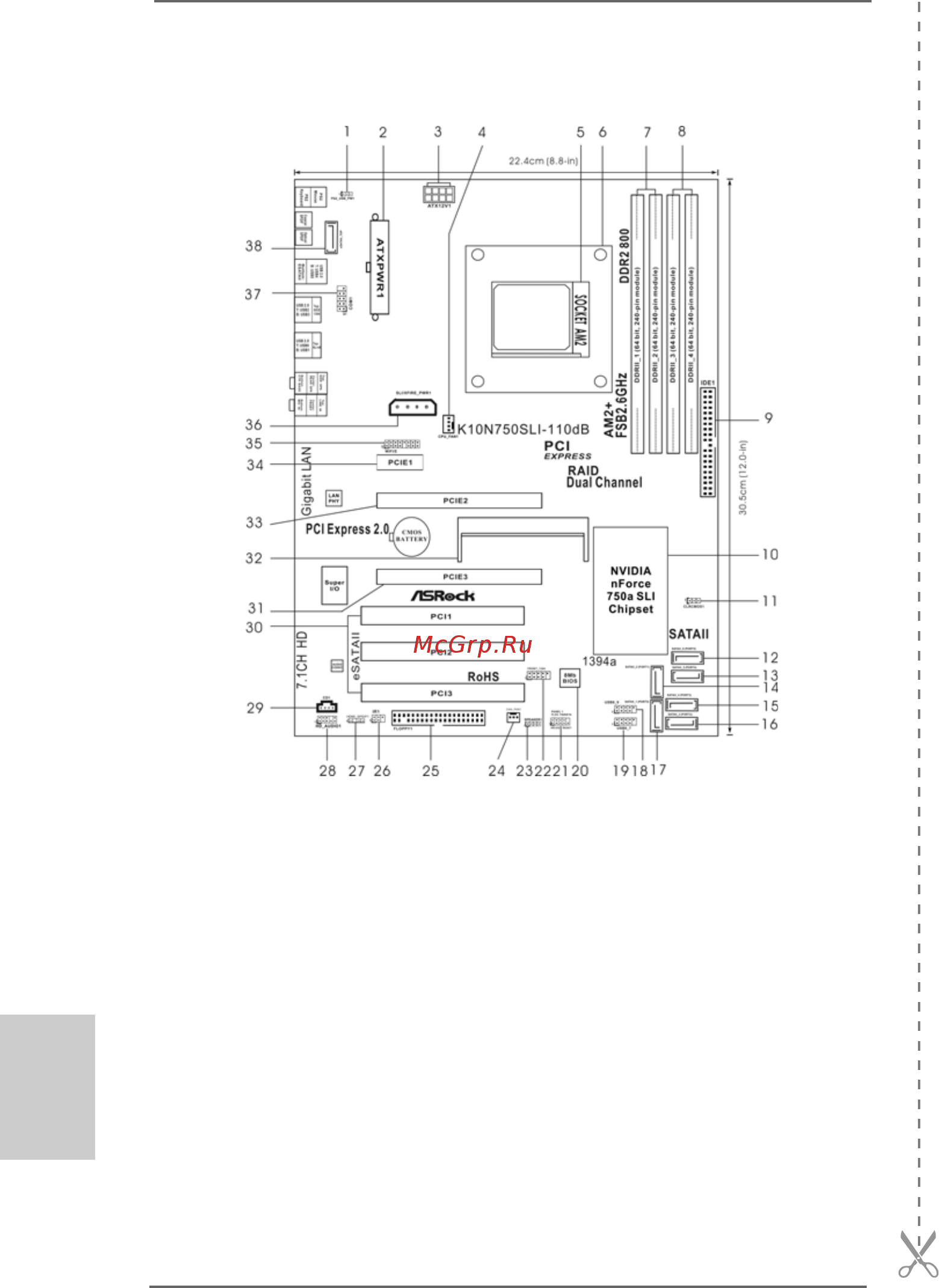

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PW1 Jumper 20 SPI BIOS Chip

2 ATX Power Connector (ATXPWR1) 21 System Panel Header (PANEL1)

3 ATX 12V Power Connector (ATX12V1) 22 Front Panel IEEE 1394 Header

4 CPU Fan Connector (CPU_FAN1) (FRONT_1394)

5 AM2 940-Pin CPU Socket 23 Chassis Speaker Header (SPEAKER 1)

6 CPU Heatsink Retention Module 24 Chassis Fan Connector (CHA_FAN1)

7 2 x 240-pin DDR2 DIMM Slots 25 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 DeskExpress Hot Plug Detection Header

8 2 x 240-pin DDR2 DIMM Slots (IR1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 HDMI_SPDIF Header (HDMI_SPDIF1)

9 Primary IDE Connector (IDE1, Blue) 28 Front Panel Audio Header (HD_AUDIO1)

10 NVIDIA nForce 750a SLI Chipset 29 Internal Audio Connector: CD1 (Black)

11 Clear CMOS Jumper (CLRCMOS1) 30 PCI Slots (PCI1- 3)

12 SATAII Connector (SATAII_6 (PORT5)) 31 PCI Express x16 Slot (PCIE3, Blue)

13 SATAII Connector (SATAII_5 (PORT4)) 32 SLI/XFire Switch Card Retention Slot

14 SATAII Connector (SATAII_2 (PORT1)) 33 PCI Express x16 Slot (PCIE2, Green)

15 SATAII Connector (SATAII_4 (PORT3)) 34 PCI Express x1 Slot (PCIE1, White)

16 SATAII Connector (SATAII_3 (PORT2)) 35 WiFi/E Header (WIFI/E)

17 SATAII Connector (SATAII_1 (PORT0)) 36 SLI / XFIRE Power Connector

18 USB 2.0 Header (USB8_9, Blue) 37 COM Port Header (COM1)

19 USB 2.0 Header (USB6_7, Blue) 38 eSATAII Connector (eSATAII_TOP)
