ASRock N68-GE Motherboard

EnglishEnglish

English

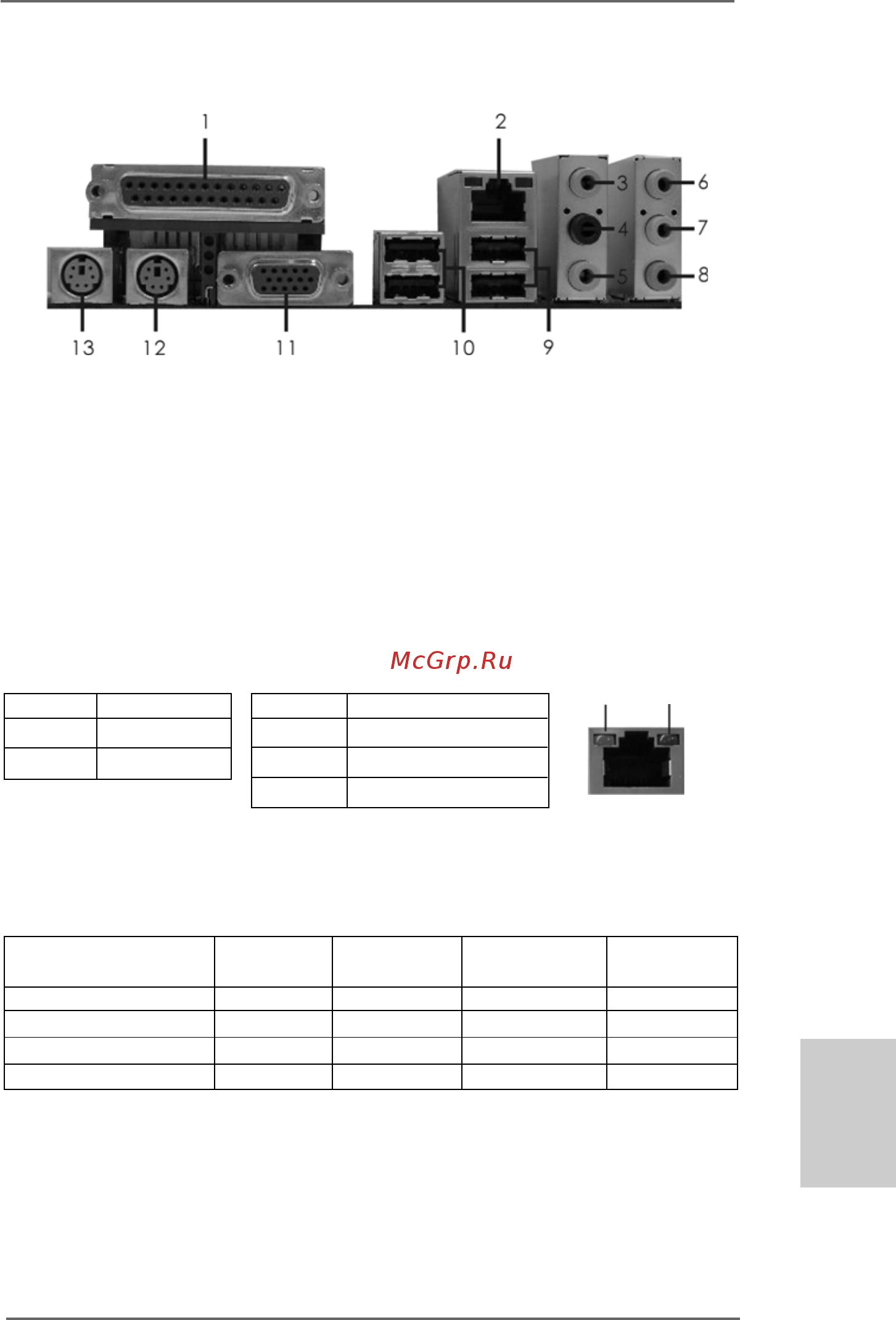

I/O PI/O P

I/O P

anelanel

anel

1 Parallel Port 8 Microphone (Pink)

* 2 LAN RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 VGA Port

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

** 7 Front Speaker (Lime)

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection
