AM1H-M
AM1B-MDH
AM1B-M
27
English

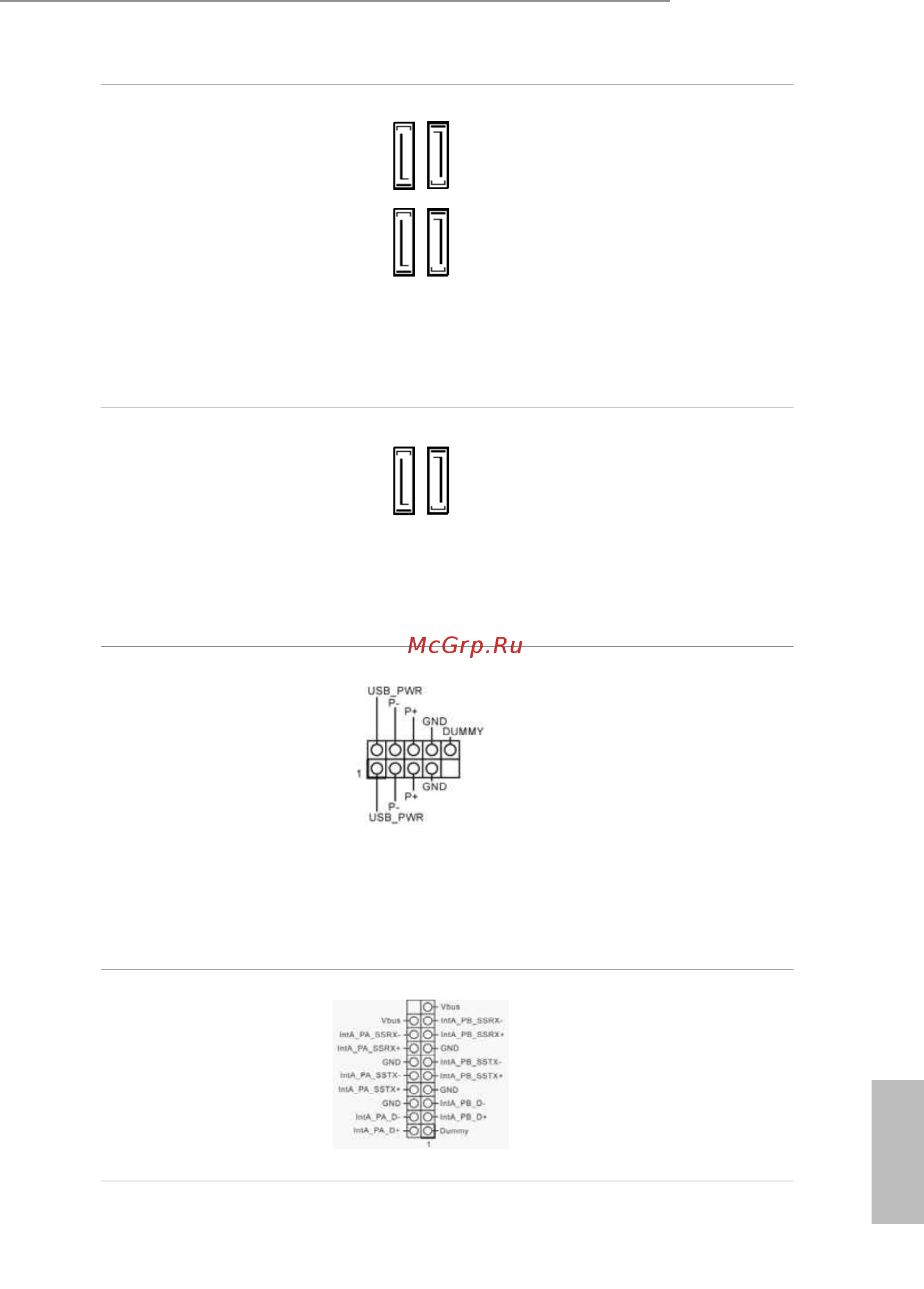

Serial ATA3 Connectors
(for AM1H-M)
(SATA3_1:
see p.9, No. 7)
(SATA3_2:
see p.9, No. 6)
(SATA3_A1:
see p.9, No. 9)
(SATA3_A2:
see p.9, No. 8)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
Serial ATA3 Connectors
(for AM1B-MDH /
AM1B-M)
(SATA3_1:
see p.11, 13, No. 7)
(SATA3_2:
see p.11, 13, No. 6)
ese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB6_7)
(see p.9, No. 19)
or
(see p.11, 13, No. 17)
(9-pin USB8_9)
(see p.9, No. 17)
or
(see p.11, 13, No. 15)
Besides the USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(for AM1H-M)
(19-pin USB3_0_1)
(see p.9, No. 21)
Besides three USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. is USB
3.0 header can support
two ports.
SATA3_A1 SATA3_1
SATA3_A2 SATA3_2
SATA3_1
SATA3_2
