ASRock ALiveSATA2-GLAN Motherboard

EnglishEnglish

English

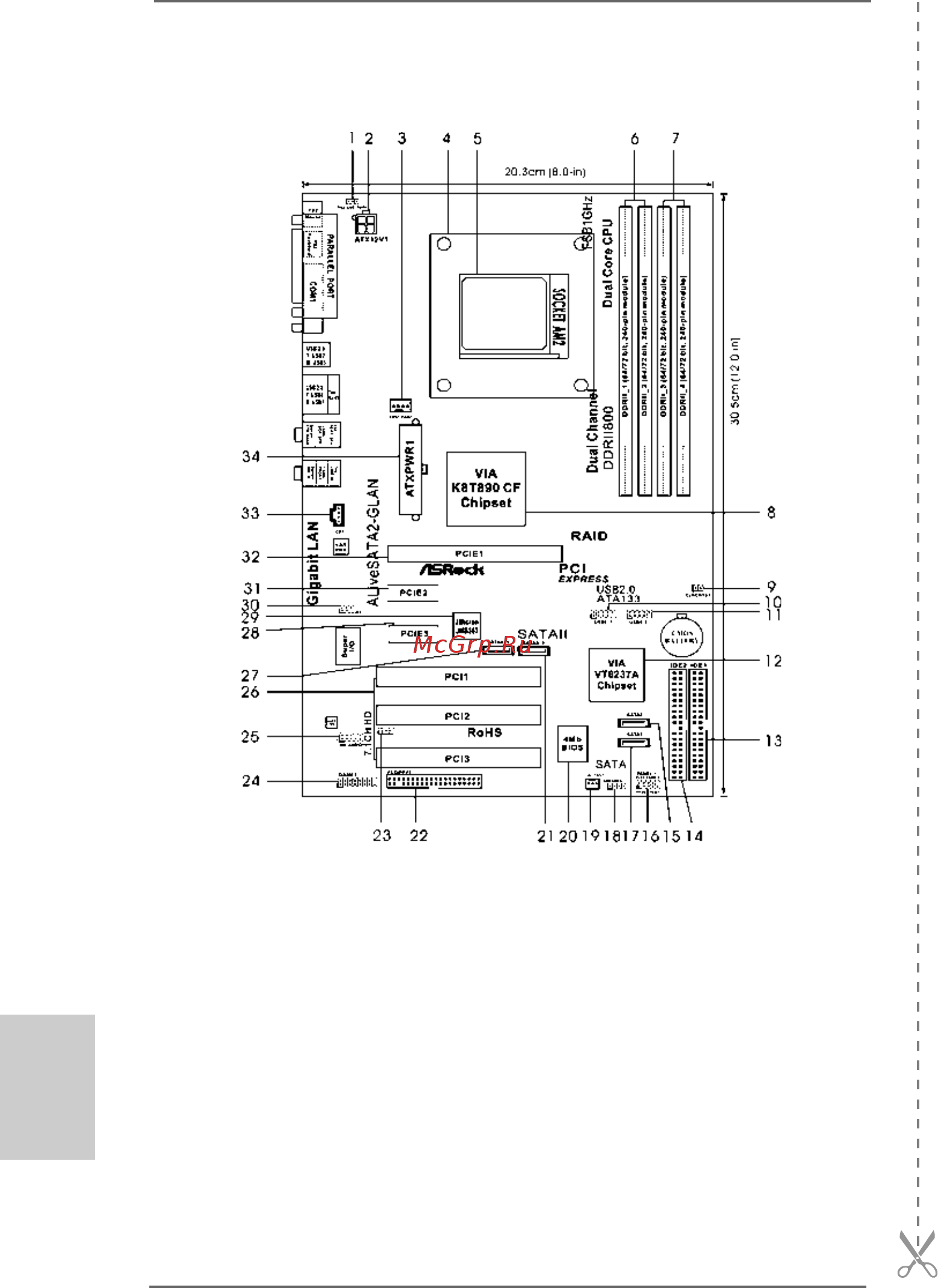

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 17 Primary Serial ATA Connector (SATA1, Black)

2 ATX 12V Power Connector (ATX12V1) 18 Chassis Speaker Header (SPEAKER 1)

3 CPU Fan Connector (CPU_FAN1) 19 Chassis Fan Connector (CHA_FAN1)

4 CPU Heatsink Retention Module 20 Flash Memory

5 AM2 940-Pin CPU Socket 21 Serial ATAII Connector (SATAII_2, Red)

6 2 x 240-pin DDRII DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 23 HDMI_SPDIF Header (HDMI_SPDIF1)

7 2 x 240-pin DDRII DIMM Slots 24 Game Port Header (GAME1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 25 Front Panel Audio Header (HD_AUDIO1)

8 North Bridge Controller 26 PCI Slots (PCI1- 3)

9 Clear CMOS Jumper (CLRCMOS1) 27 Serial ATAII Connector (SATAII_1, Red)

10 USB 2.0 Header (USB6_7, Blue) 28 PCI Express x1 Slot (PCIE3)

11 USB 2.0 Header (USB4_5, Blue) 29 JMicron JMB363 Chipset (PCIE x1 interface)

12 South Bridge Controller 30 Infrared Module Header (IR1)

13 Primary IDE Connector (IDE1, Blue) 31 PCI Express x1 Slot (PCIE2)

14 Secondary IDE Connector (IDE2, Black) 32 PCI Express x16 Slot (PCIE1)

15 Secondary Serial ATA Connector (SATA2, Black) 33 Internal Audio Connector: CD1 (Black)

16 System Panel Header (PANEL1) 34 ATX Power Connector (ATXPWR1)
