ASRock AM2NF4G-SATA2 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

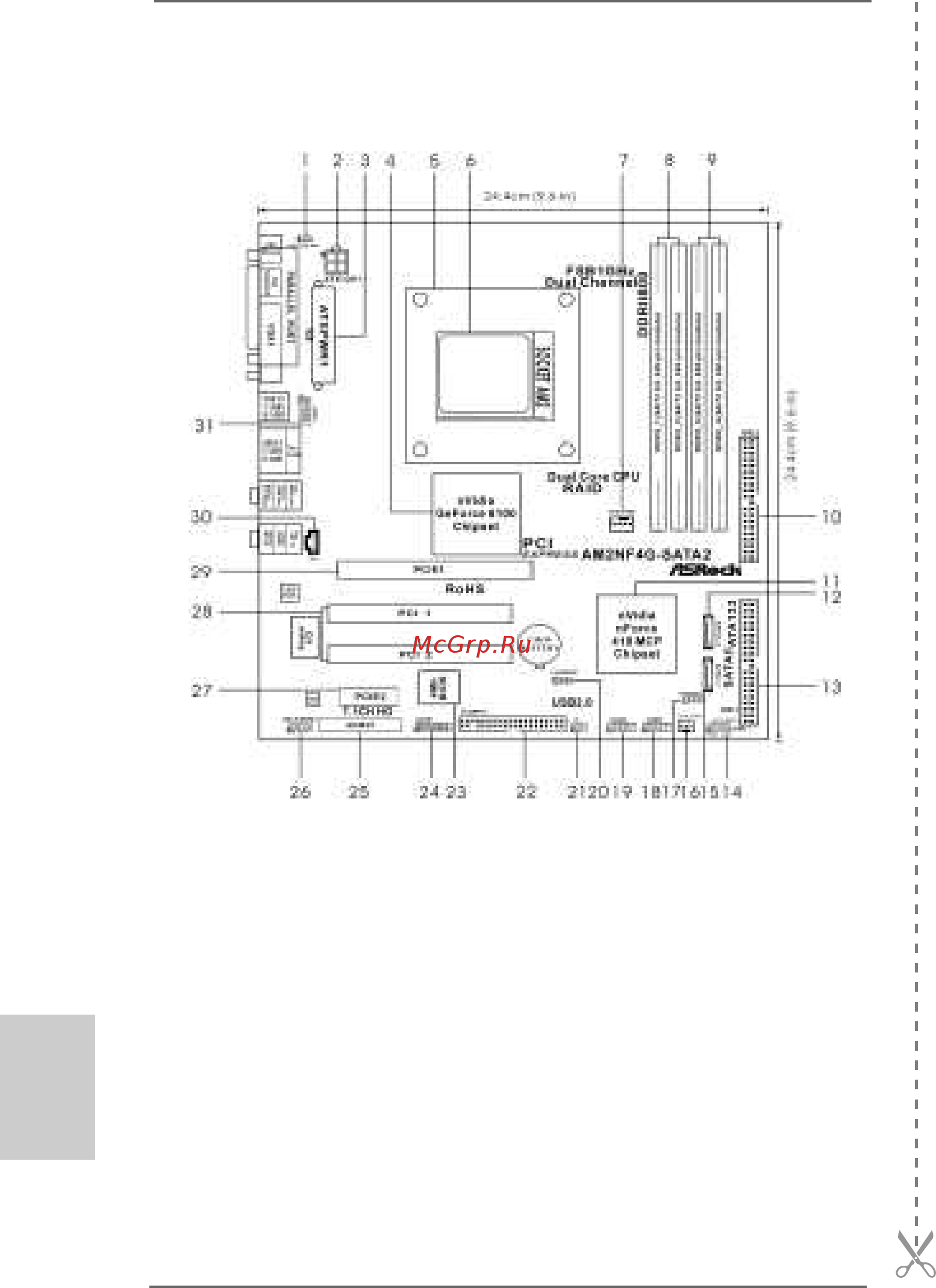

1 PS2_USB_PW1 Jumper 16 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Power Connector (ATX12V1) 17 Chassis Speaker Header (SPEAKER 1)

3 ATX Power Connector (ATXPWR1) 18 USB 2.0 Header (USB67, Blue)

4 North Bridge Controller 19 USB 2.0 Header (USB45, Blue)

5 CPU Heatsink Retention Module 20 Clear CMOS Jumper (CLRCMOS1)

6 AM2 940-Pin CPU Socket 21 Infrared Module Header (IR1)

7 CPU Fan Connector (CPU_FAN2) 22 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDRII DIMM Slots 23 Flash Memory

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 24 Game Port Header (GAME1)

9 2 x 240-pin DDRII DIMM Slots 25 HDMR Slot (HDMR1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 26 Front Panel Audio Header (HD_AUDIO1)

10 Secondary IDE Connector (IDE2, Black) 27 PCI Express x 1 Slot (PCIE2)

11 South Bridge Controller 28 2 x PCI Slots (PCI1- 2)

12 Secondary Serial ATAII Connector (SATAII_2, red) 29 PCI Express x 16 Slot (PCIE1)

13 Primary IDE Connector (IDE1, Blue) 30 Internal Audio Connector: CD1 (Black)

14 System Panel Header (PANEL1) 31 Serial Port Connector (COM1)

15 Primary Serial ATAII Connector (SATAII_1, red)
