MIDI_OUT
JAB2
JBY
JBB2
MIDI_IN
+5 V
JAY
GND
GND
1
JAX
JAB1
+5 V
JBX
JBB1
+5 V

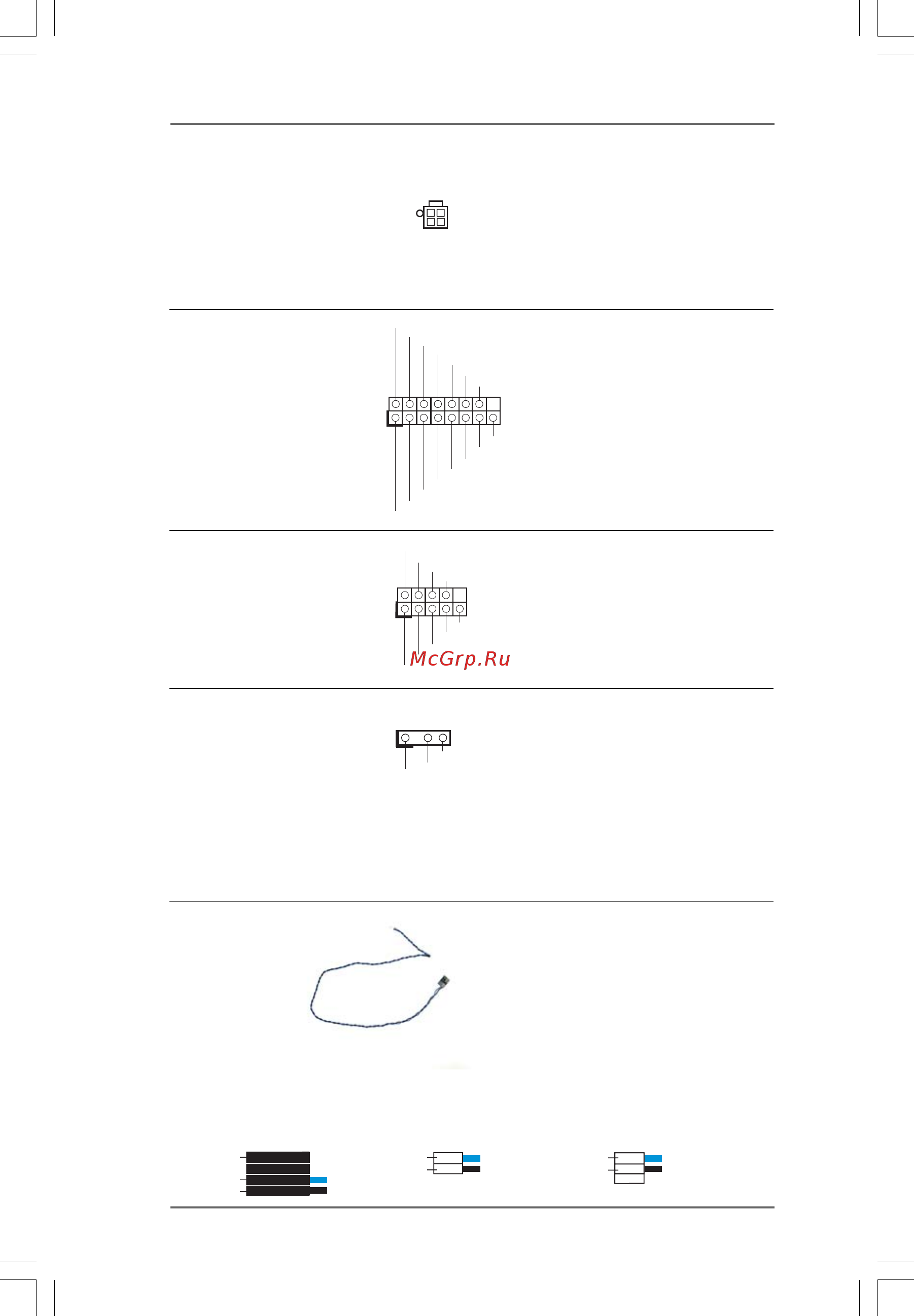

Game Port Header Connect a Game cable to this
(15-pin GAME1) header if the Game port bracket
(see p.10 No. 9) is installed.
Serial port Header This COM1 header
(9-pin COM1) supports a serial port module.
(see p.10 No.33)
HDMI_SPDIF Header HDMI_SPDIF header, providing
(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA
(see p.10 No. 27) card, allows the system to
con nect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
CCTS#1
DDSR#1
DDTR#1
RRXD 1
DDCD#1
TTXD1
GND
RRTS#1
RRI#1
1
1
GND
+5 V
SPDIFOUT
C
B
GND
+5 V
SPDIFOUT
blue
black
blue
black
GND
SPDIFOUT
blue
black
GND
SPDIFOUT
A
HDMI_SPDIF Cable Please connect the black end (A)
(Optional) of HDMI_SPDIF cable to the
HDMI_SPDIF header on the
motherboard. Then connect the
white end (B or C) of
HDMI_SPDIF cable to the
HDMI_SPDIF connector of HDMI
VGA card.
A. black end B. white end (2-pin) C. white end (3-pin)
ATX 12V Power Connector Please note that it is necessary
(4-pin ATX12V1) to connect a power supply with
(see p.10 No. 2) ATX 12V plug to this connector.
Failing to do so will cause power
up failure.
