ASRock ALiveNF6G-VSTA Motherboard

EnglishEnglish

English

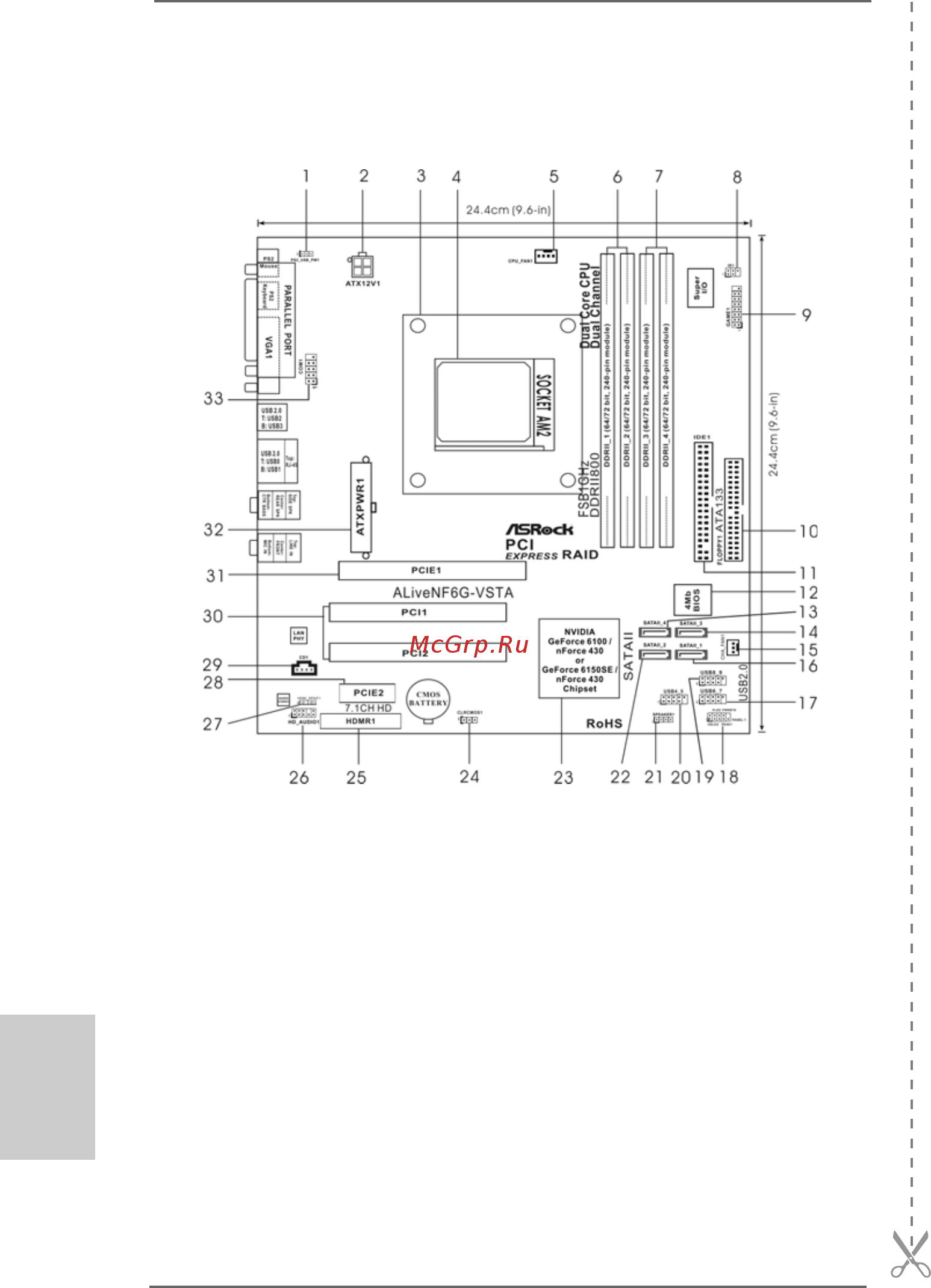

1 PS2_USB_PW1 Jumper 17 USB 2.0 Header (USB6_7, Blue)

2 ATX 12V Power Connector (ATX12V1) 18 System Panel Header (PANEL1)

3 CPU Heatsink Retention Module 19 USB 2.0 Header (USB8_9, Blue)

4 AM2 940-Pin CPU Socket 20 USB 2.0 Header (USB4_5, Blue)

5 CPU Fan Connector (CPU_FAN1) 21 Chassis Speaker Header (SPEAKER 1)

6 2 x 240-pin DDRII DIMM Slots 22 Secondary SATAII Connector

(Dual Channel A: DDRII_1, DDRII_2; Yellow) (SATAII_2, Red)

7 2 x 240-pin DDRII DIMM Slots 23 NVIDIA Single Chip

(Dual Channel B: DDRII_3, DDRII_4; Orange) 24 Clear CMOS Jumper (CLRCMOS1)

8 DeskExpress Hot Plug Detection Header 25 HDMR Slot (HDMR1)

(IR1) 26 Front Panel Audio Header (HD_AUDIO1)

9 Game Port Header (GAME1) 27 HDMI_SPDIF Header (HDMI_SPDIF1)

10 Floppy Connector (FLOPPY1) 28 PCI Express x1 Slot (PCIE2)

11 Primary IDE Connector (IDE1, Blue) 29 Internal Audio Connector: CD1 (Black)

12 Flash Memory 30 PCI Slots (PCI1- 2)

13 Fourth SATAII Connector (SATAII_4, Red) 31 PCI Express x16 Slot (PCIE1)

14 Third SATAII Connector (SATAII_3, Red) 32 ATX Power Connector (ATXPWR1)

15 Chassis Fan Connector (CHA_FAN1) 33 Serial Port Connector (COM1)

16 Primary SATAII Connector (SATAII_1, Red)
