ASRock FM2A88X+ BTC [25/65] Onboard headers and connectors

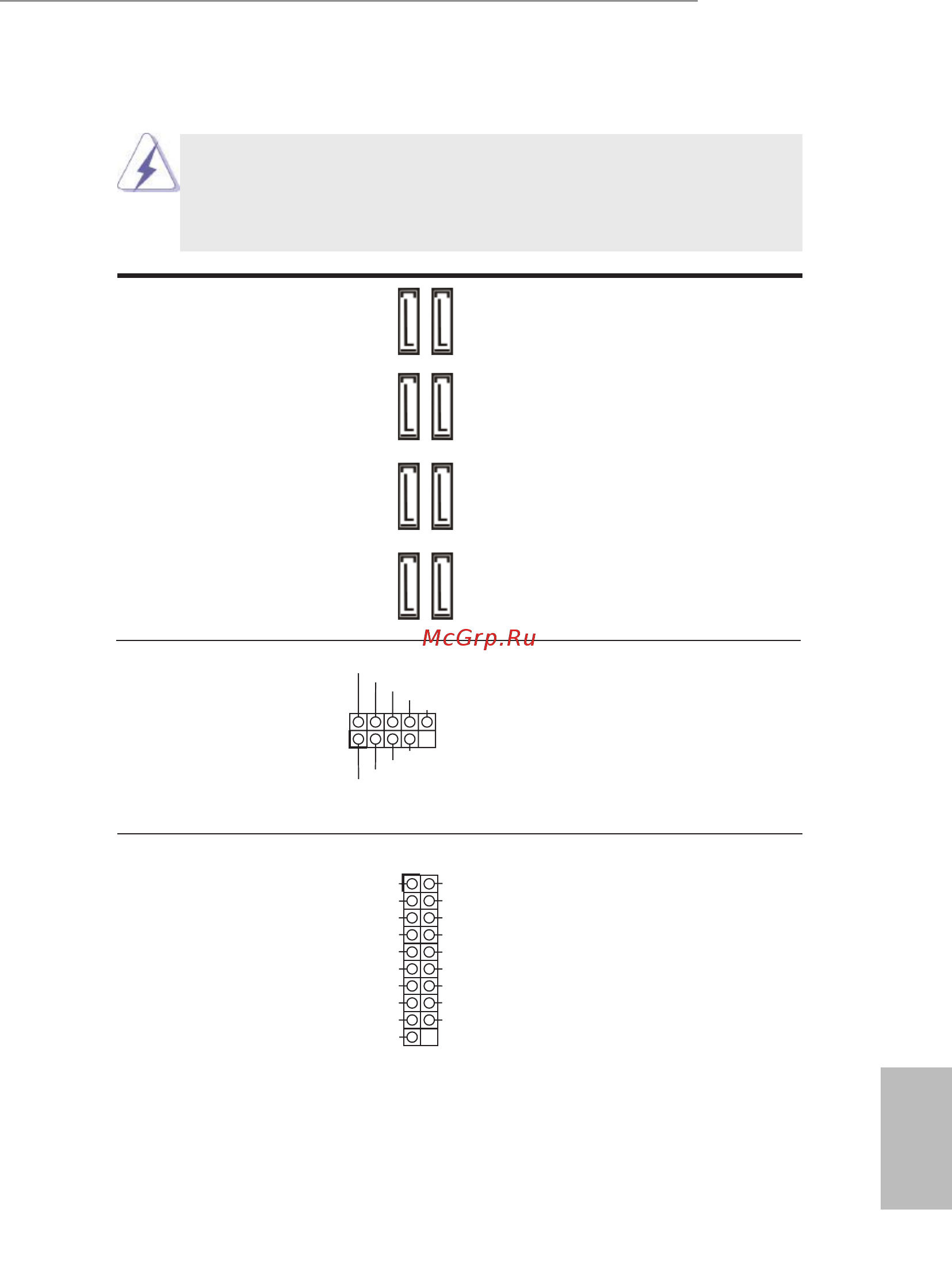

![ASRock FM2A88X+ BTC [25/65] Onboard headers and connectors](/views2/1692126/page25/bg19.png)
21
English
FM2A88X+ BTC
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB6_7)
ports on the I/O panel, there
(see p.11 No. 19)
are two USB 2.0 headers on
(9-pin USB8_9)
this motherboard. Each USB 2.0
(see p.11 No. 18)
header can support two USB
2.0 ports.
Serial ATA3 Connectors These eight Serial ATA3
(SATA_1_2: see p.11, No. 12)
(SATA3) connectors support
(SATA_3_4: see p.11, No. 11)
SATA data cables for internal
(SATA_5_6: see p.11, No. 10)
storage devices. The current
(SATA_7_8: see p.11, No. 9)
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA_5_6 SATA_7_8SATA_3_4SATA_1_2
USB 3.0 Header Besides two default USB 3.0
(19-pin USB3_2_3)
ports on the I/O panel, there is
(see p.11 No. 7)
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
Vbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
