2
ASRock FM2A85X-ITX Motherboard
English

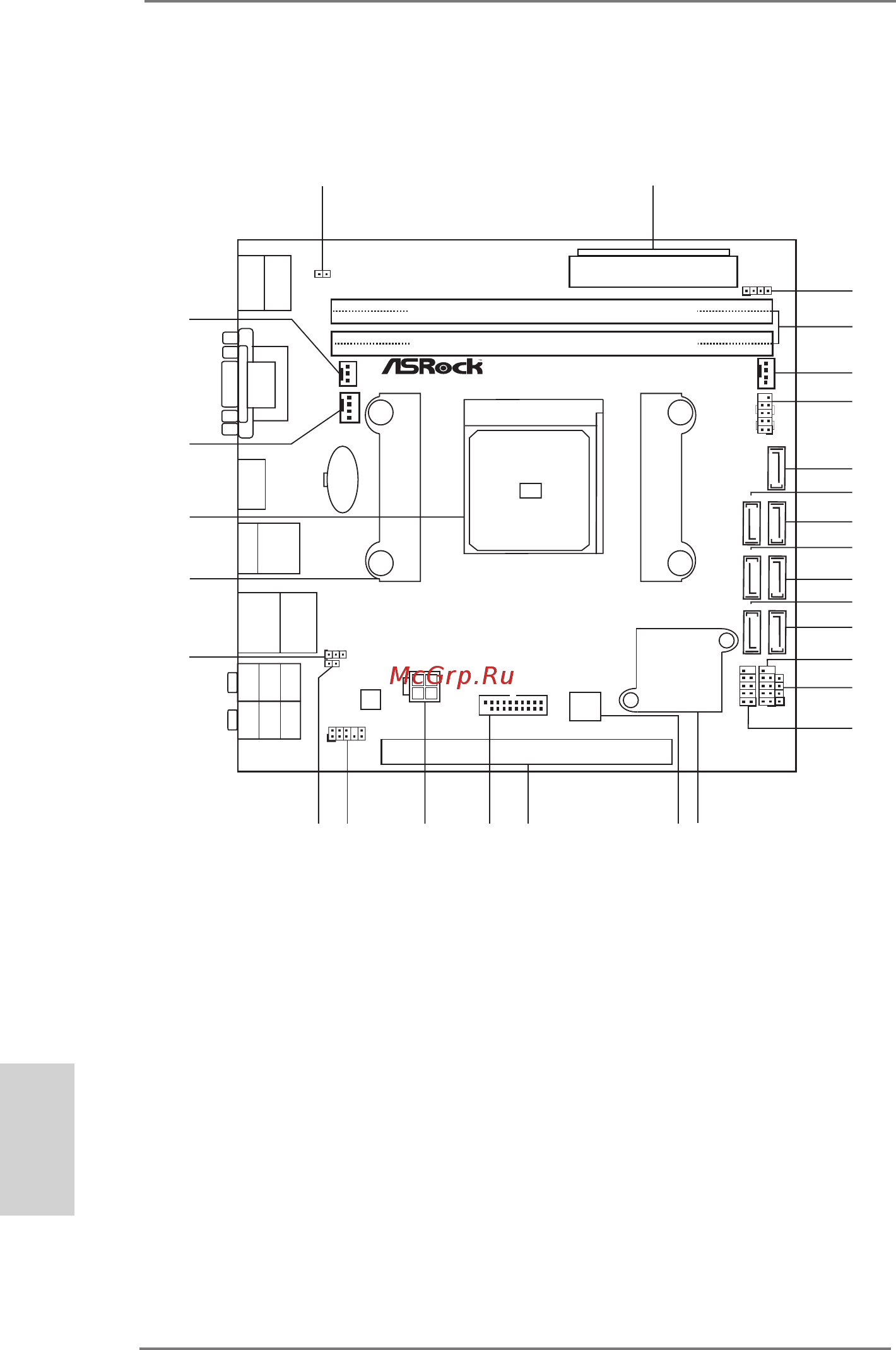

Motherboard Layout
1 Chassis Intrusion Header (CI1) 15 Consumer Infrared Module Header (CIR1)
2 ATX Power Connector (ATXPWR1) 16 USB 2.0 Header (USB_67)
3 Chassis Speaker Header (SPEAKER1) 17 Southbridge Controller
4 2 x 240-pin DDR3 DIMM Slots 18 SPI Flash Memory (64Mb)
(Dual Channel: DDR3_A1, DDR3_B1) 19 PCI Express 2.0 x16 Slot (PCIE1)
5 Chassis Fan Connector (CHA_FAN1) 20 USB 3.0 Header (USB3_0_1)
6 System Panel Header (PANEL1) 21 ATX 12V Power Connector (ATX12V1)
7 SATA3 Connector (SATA3_7) 22 Front Panel Audio Header (HD_AUDIO1)
8 SATA3 Connector (SATA3_6) 23 HDMI_SPDIF Header (HDMI_SPDIF1)
9 SATA3 Connector (SATA3_5) 24 Clear CMOS Jumper (CLRCMOS1)
10 SATA3 Connector (SATA3_4) 25 CPU Heatsink Retention Module
11 SATA3 Connector (SATA3_3) 26 CPU Socket
12 SATA3 Connector (SATA3_2) 27 CPU Fan Connector (CPU_FAN1)
13 SATA3 Connector (SATA3_1) 28 CPU Fan Connector (CPU_FAN2)
14 USB 2.0 Header (USB_45)
ATXPWR1
DDR3_B1 (64 bit, 240-pin modu le)
DDR3_A1 (64 bit, 240-pin modu le)
SOCKET FM2
PCIE1
AMD
A85X
(Hud son-D4)
Chipset
CPU _FAN 1
CPU _FAN 2
X
Fast RAM
Front USB 3. 0
USB 2. 0
T: U SB 0
B: U SB 1
Ps2
Keybo ar d
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Top:
RJ-4 5
USB 3.0
T: USB2
B: USB3
USB 2.0
T: USB2
B: USB3
eSATA3_1
HD_ AU DI O1
1
1
CLRC MOS1
64Mb
BIOS
Ro H S
FM2A85X-ITX
SPE AKE R1
1
HDLE D RESE T
PLED PWRBT N
1
PANE L 1
CHA _FAN 1
CIR 1
USB _67
1
USB _45
AUD IO
COD EC
1
HDMI _SPD IF1
CMOS
Battery
USB 3_0 _1
1
2
14
15
16
17
18
19
20
21
3
4
7
9
8
5
6
10
11
12
13
22
23
CI1
1
25
24
1 1
SATA3_ 2
SATA3_ 4
SATA3_ 1
SATA3_ 3
SATA3_ 6
SATA3_ 5
SATA3_ 7
ATX1 2V 1
VGA 1
DVI1
HD MI1
27
26
28
