Caution

1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug

cannot be processed.

2. Even some SATA / SATAII HDDs provide both SATA 15-pin power connector and

IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin

conventional power connector interface is denitely not able to support Hot Plug

and will cause the HDD damage and data loss.

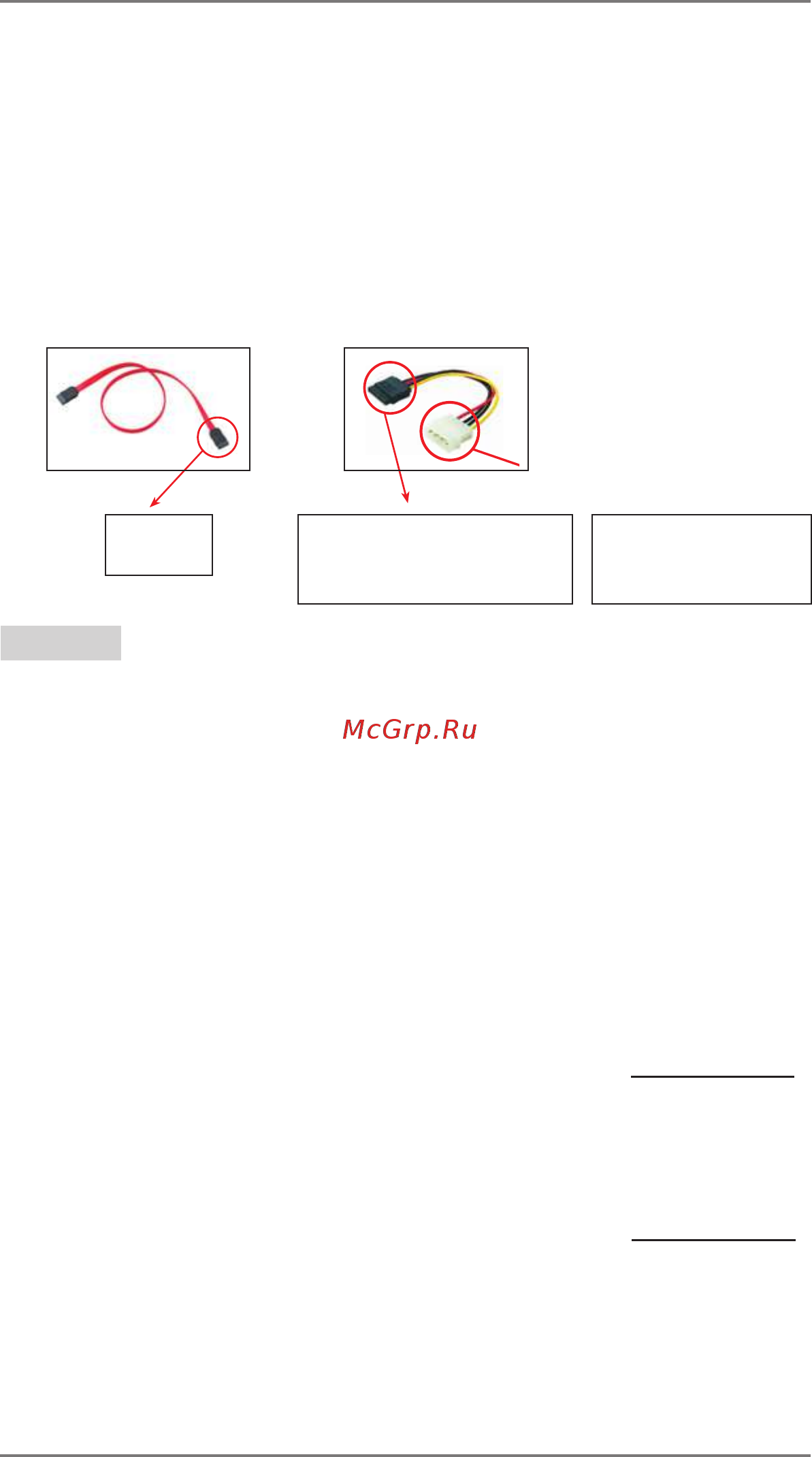

SATA 7-pin

connector

1x4-pin conventional

power connector (White)

connect to power supply

2.12 SATA / SATAII HDD Hot Plug Feature and Operation Guide

This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID / AHCI

mode. Please read below operation guide of Hot Plug feature carefully. Before you

process the SATA / SATAII HDD Hot Plug, please check below cable accessories

from the motherboard gift box pack.

A. 7-pin SATA data cable

B. SATA power cable with SATA 15-pin power connector interface

The SATA 15-pin power

connector (Black) connect

to SATA / SATAII HDD

Points of attention, before you process the Hot Plug:

1. Below operation procedure is designed only for our motherboard, which supports

SATA / SATAII HDD Hot Plug.

* The SATA / SATAII Hot Plug feature might not be supported by the chipset

because of its limitation, the SATA / SATAII Hot Plug support information of our

motherboard is indicated in the product spec on our website: www.asrock.com

2. Make sure your SATA / SATAII HDD can support Hot Plug function from your

dealer or HDD user manual. The SATA / SATAII HDD, which cannot support Hot

Plug function, will be damaged under the Hot Plug operation.

3. Please make sure the SATA / SATAII driver is installed into system properly. The

latest SATA / SATAII driver is available on our support website: www.asrock.com

4. Make sure to use the SATA power cable & data cable, which are from our

motherboard package.

5. Please follow below instructions step by step to reduce the risk of HDD crash

or data loss.

A. SATA data cable (Red) B. SATA power cable
