2
ASRock A75M-DGS Motherboard
English

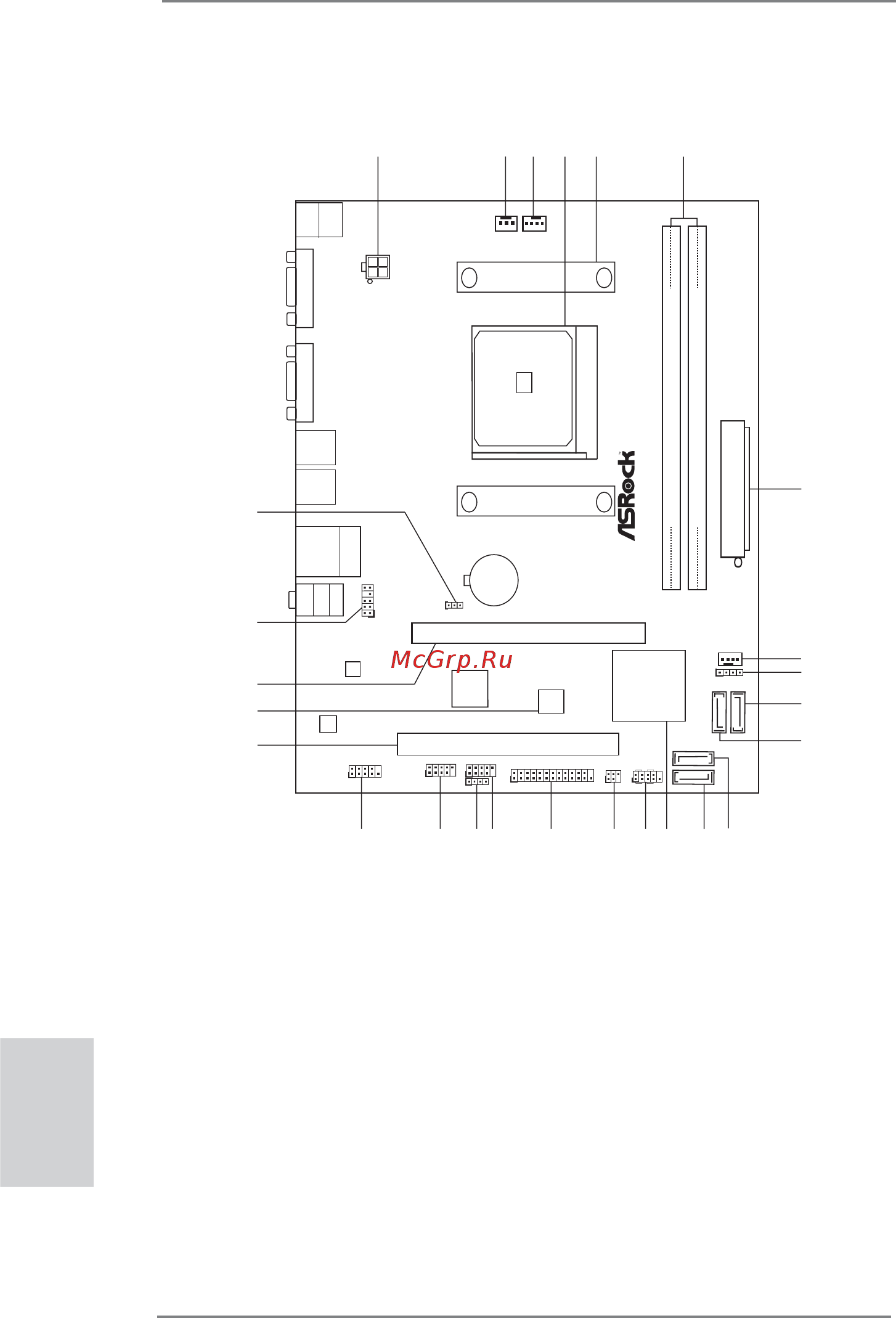

Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 14 Southbridge Controller
2 Power Fan Connector (PWR_FAN1) 15 System Panel Header (PANEL1)
3 CPU Fan Connector (CPU_FAN1) 16 Infrared Module Header (IR1)
4 CPU Socket 17 Print Port Header (LPT1)
5 CPU Heatsink Retention Module 18 USB 2.0 Header (USB6_7)
6 2 x 240-pin DDR3 DIMM Slots 19 Consumer Infrared Module Header (CIR1)
(Dual Channel: DDR3_A1, DDR3_B1) 20 USB 2.0 Header (USB8_9)
7 ATX 12V Power Connector (ATX12V1) 21 COM Port Header (COM1)
8 Chassis Fan Connector (CHA_FAN1) 22 PCI Slot (PCI1)
9 Chassis Speaker Header (SPEAKER1) 23 SPI Flash Memory (32Mb)
10 SATA3 Connector (SATA_4) 24 PCI Express 2.0 x16 Slot (PCIE1)
11 SATA3 Connector (SATA_3) 25 Front Panel Audio Header (HD_AUDIO1)
12 SATA3 Connector (SATA_1) 26 Clear CMOS Jumper (CLRCMOS1)
13 SATA3 Connector (SATA_2)
Super
I/O
CMOS
BATTERY
ATXPWR1
AMD
A75 FCH
(Hudson-D3)
Chipset
COM1
PCI1
LAN
AUDIO
CODEC
1
CLRCMOS1
1
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
1
32Mb
BIOS
IR1
1
PCIE1
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
1
1
USB6_7
USB8_9
A75M-DGS
ErP/EuP Ready
RoHS
DDR3 2400+
USB 2.0
T: USB0
B: USB1
CIR1
1
SOCKET FM1
SATA_4
SATA_3
1
LPT1
PS2
Mouse
PS2
Keyboard
VGA1
USB 3.0
T: USB2
B: USB3
Dual Graphics
X
Fast USB
PWR_FAN1
X
Fast LAN
X
Fast RAM
SATA_2
SATA_1
ATX12V1
DX11
1
24
3
5
6
7
8
9
10
11
12
13
14
15
16
17
181920
21
22
23
24
25
26
DVI1
USB 3.0
T: USB4
B: USB5
