2
ASRock A75 Pro4/MVP Motherboard
English

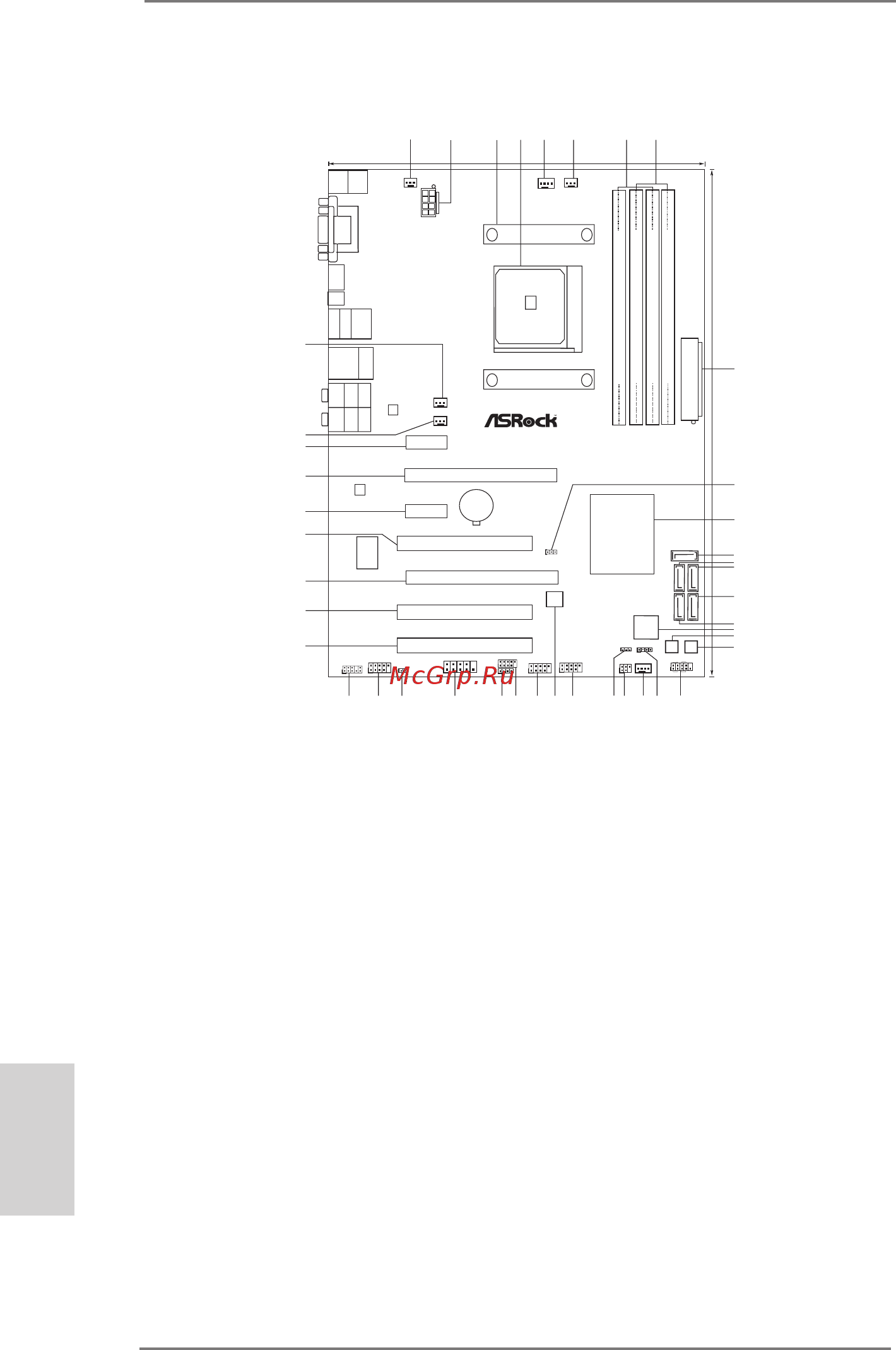

Motherboard Layout
1 Power Fan Connector (PWR_FAN1) 22 Chassis Fan Connector (CHA_FAN1)
2 ATX 12V Power Connector (ATX12V1) 23 Infrared Module Header (IR1)
3 CPU Heatsink Retention Module 24 Power LED Header (PLED1)
4 CPU Socket 25 USB 2.0 Header (USB10_11, Black)
5 CPU Fan Connector (CPU_FAN1) 26 SPI Flash Memory (32Mb)
6 CPU Fan Connector (CPU_FAN2) 27 USB 2.0 Header (USB8_9, Black)
7 2 x 240-pin DDR3 DIMM Slots 28 USB 2.0 Header (USB6_7, Black)
(Dual Channel A: DDR3_A1, DDR3_B1; Black) 29 Consumer Infrared Module Header (CIR1)
8 2 x 240-pin DDR3 DIMM Slots 30 COM Port Header (COM1)
(Dual Channel B: DDR3_A2, DDR3_B2; Black) 31 HDMI_SPDIF Header (HDMI_SPDIF1, Black)
9 ATX Power Connector (ATXPWR1) 32 Front Panel IEEE 1394 Header
10 Clear CMOS Jumper (CLRCMOS1) (FRONT_1394, Black)
11 Southbridge Controller 33 Front Panel Audio Header (HD_AUDIO1, Black)
12 SATA3 Connector (SATA3_5, Gray) 34 PCI Slot (PCI3)
13 SATA3 Connector (SATA3_4, Gray) 35 PCI Slot (PCI2)
14 SATA3 Connector (SATA3_3, Gray) 36 PCI Express 2.0 x16 Slot (PCIE4; Black)
15 SATA3 Connector (SATA3_1, Gray) 37 PCI Slot (PCI1)
16 SATA3 Connector (SATA3_2, Gray) 38 PCI Express 2.0 x1 Slot (PCIE3; Black)
17 Dr. Debug (LED) 39 PCI Express 2.0 x16 Slot (PCIE2; Black)
18 Power Switch (PWRBTN) 40 PCI Express 2.0 x1 Slot (PCIE1; Black)
19 Reset Switch (RSTBTN) 41 Chassis Fan Connector (CHA_FAN2)
20 System Panel Header (PANEL1, Black) 42 Chassis Fan Connector (CHA_FAN3)
21 Chassis Speaker Header (SPEAKER 1, Black)
Sup er
I/O
CMO S
BAT TER Y
ATXPWR1
AMD
A75 FCH
(Hudson-D3)
Chipset
COM1
PCIE1
PCI1
LAN
AUDIO
CODEC
1
CLRCM OS1
1
CPU_FA N1
HDLED RESET
PLED P WRBTN
1
PANEL 1
CHA_FA N1
SPEAK ER1
1
HD_A UDIO1
1
30.5cm (12.0-in)
22.4cm (8.8-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2627
28
29
32M b
BIO S
IR1
1
PCIE2
HDMI1
Top:
CTR BASS
Cent er:
REAR SPK
Bott om:
Opti cal
SPDI F
Top:
LINE IN
Cent er:
FRON T
Bott om:
MIC IN
1
USB6_ 7
CPU_ FAN2
A75 Pro4/MVP
ErP/Eu P Ready
RoHS
DDR3 2400 +
USB 3. 0
T: USB4
B: USB 5
CIR1
1
SATA3 6G b/s
ATX12 V1
HDMI 1.4a
Ps2
Key boar d/
Mou se
SOCKE T F M1
PCIE4
Dr.
Debug
PWRBT N
RSTBT N
PLED1
1
SATA3_ 1
SATA3_ 2
SATA3_ 3
SATA3_ 4
DDR3_ A1 (6 4 bit , 240 -pin modul e)
DDR3_ A2 (6 4 bit , 240 -pin modul e)
DDR3_ B1 (6 4 bit , 240 -pin modul e)
DDR3_ B2 (6 4 bit , 240 -pin modul e)
PWR_ FAN1
FRONT _1394
1
1
HDMI_S PDIF1
1
USB8_ 9
1
USB10 _11
VGA1
DVI_C ON1
Clr
CMO S
USB 2.0
T: US B2
B: USB3
IEEE 1394
eSATA1
Top:
RJ- 45
USB 3.0
T: US B0
B: USB1
CHA_ FAN3
CHA_ FAN2
USB 3.0
1394a
303132
33
34
35
36
37
38
39
40
41
42
PCIE3
PCI2
PCI3
SATA3_ 5
DX11
X
Fast U SB
Desig ned in Tai pei
Dual Graphics
