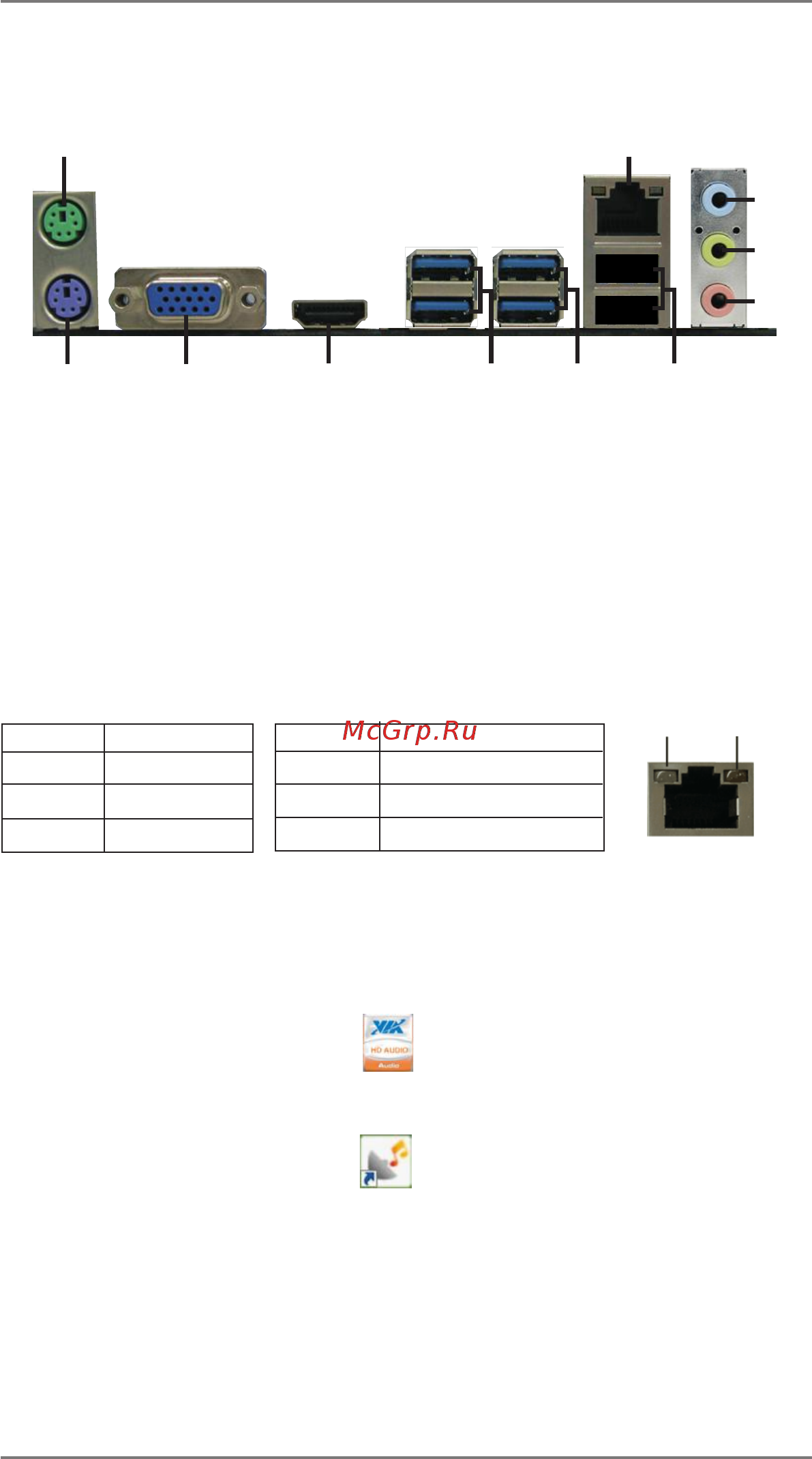

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse Port (Green) 7 USB 3.0 Ports (USB45)

* 2 LAN RJ-45 Port 8 USB 3.0 Ports (USB23)

3 Line In (Light Blue) 9 HDMI Port

** 4 Front Speaker (Lime) 10 D-Sub Port

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

*** 6 USB 2.0 Ports (USB01)

LAN Port

ACT/LINK

LED

SPEED

LED

1011

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows

XP / XP 64-bit OS:

Please click “VIA HD Audio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel” or “4 Channel”. Click “Power” to save your change.

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

*** It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB01)

instead of USB 3.0 ports.
