10

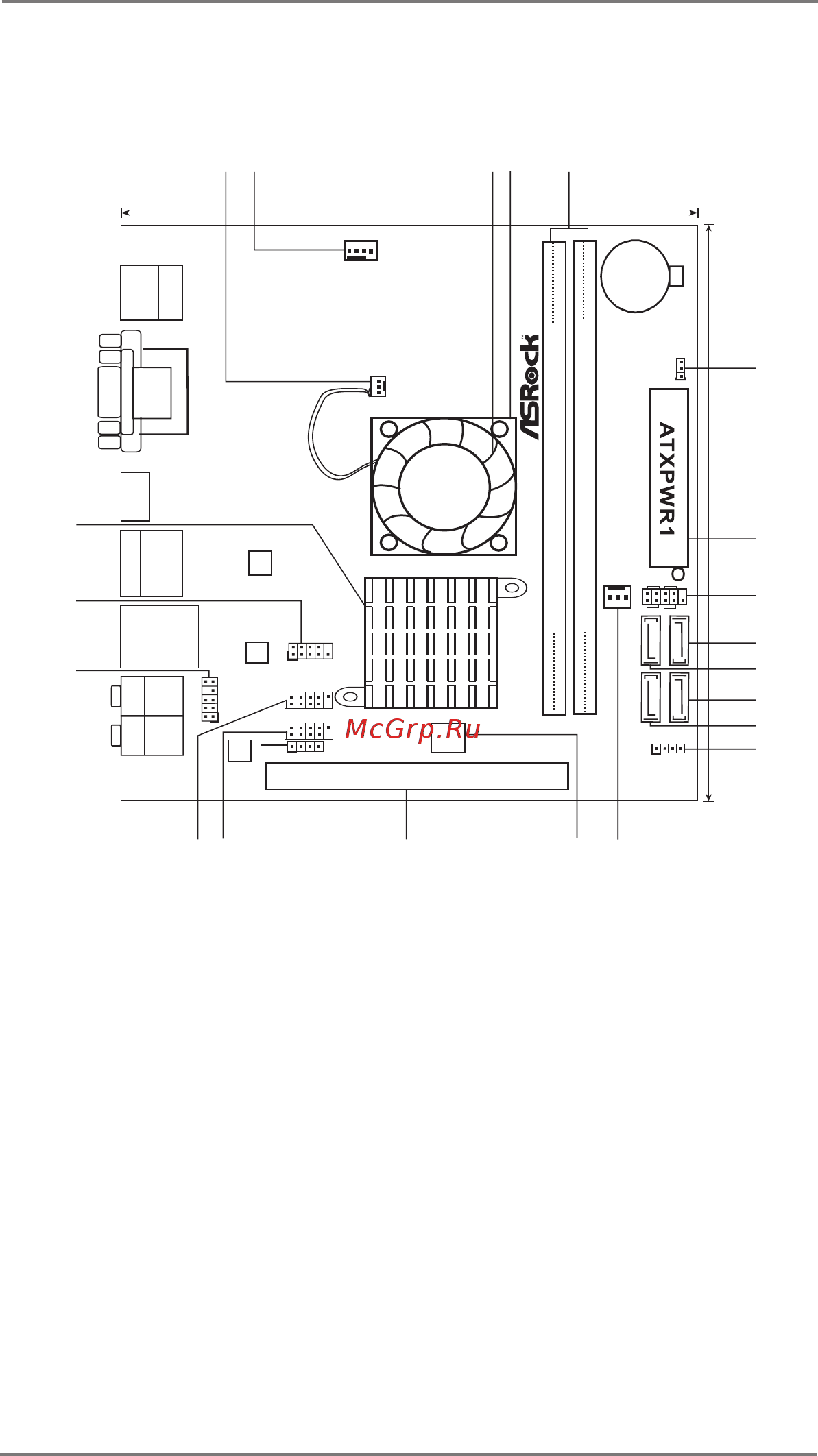

1.3 Motherboard Layout
1 CPU Fan Connector (CPU_FAN1) 13 Chassis Speaker Header
2 Chassis Fan Connector (CHA_FAN1) (SPEAKER 1, White)
3 CPU Fan 14 Chassis Fan Connector (CHA_FAN2)
4 CPU Heatsink 15 32Mb SPI Flash
5 2 x 240-pin DDR3 DIMM Slots 16 PCI Express 2.0 x16 Slot (PCIE1, Blue)
(DDR3_A1, DDR3_A2, Blue) 17 Consumer Infrared Module Header (CIR1)
6 Clear CMOS Jumper (CLRCMOS1) 18 USB 2.0 Header (USB8_9, Blue)
7 ATX Power Connector (ATXPWR1) 19 USB 2.0 Header (USB6_7, Blue)
8 System Panel Header (PANEL1, White) 20 Front Panel Audio Header
9 SATA3 Connector (SATA3_4, White) (HD_AUDIO1, White)
10 SATA3 Connector (SATA3_2, White) 21 COM Port Header (COM1)
11 SATA3 Connector (SATA3_3, White) 22 AMD A50M Chipset
12 SATA3 Connector (SATA3_1, White)
SPE AKE R1
1
PANE L 1
HDL E D RESE T
PLE D PWR BTN
1
CMOS
Battery
32Mb
BIOS
17.0cm (6.7 in)
17.0cm (6.7 in)
Sup er
IO
FSB800
DDR3_A1 (64 bit, 240-pin module)
FSB800
DDR3_A2 (64 bit, 240-pin module)
1
USB 6_7
PCIE1
1
USB 8_9
CHA _FA N2
SATA3_ 1
SATA3_ 2
SATA3_ 3 SATA3_ 4
HD_ AUD IO1
1
AUD IO
COD EC
LAN
PHY
1
COM 1
CHA _FA N1
RoHS
SATA3 6Gb/s
USB 3.0
T: USB0
B: USB1
PS2
Keyboard/Mouse
VGA1
DVI_CON 1
HDMI1
USB 2.0
T: USB2
B: USB3
eSATA3_1
USB 2.0
T: US B4
B: USB5
Top:
RJ-45
Top:
CTR BAS S
Cen ter :
REA R SPK
Bot tom :
Opt ica l
SPD IF
Top:
LIN E IN
Cen ter :
FRO NT
Bot tom :
MIC IN
CLR CMO S1
1
E350M1/USB3
DX11
CPU _FAN 1
1
2
4
3
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
DD R3
CIR 1
1
22
