ASRock 939A790GMH Motherboard

EnglishEnglish

English

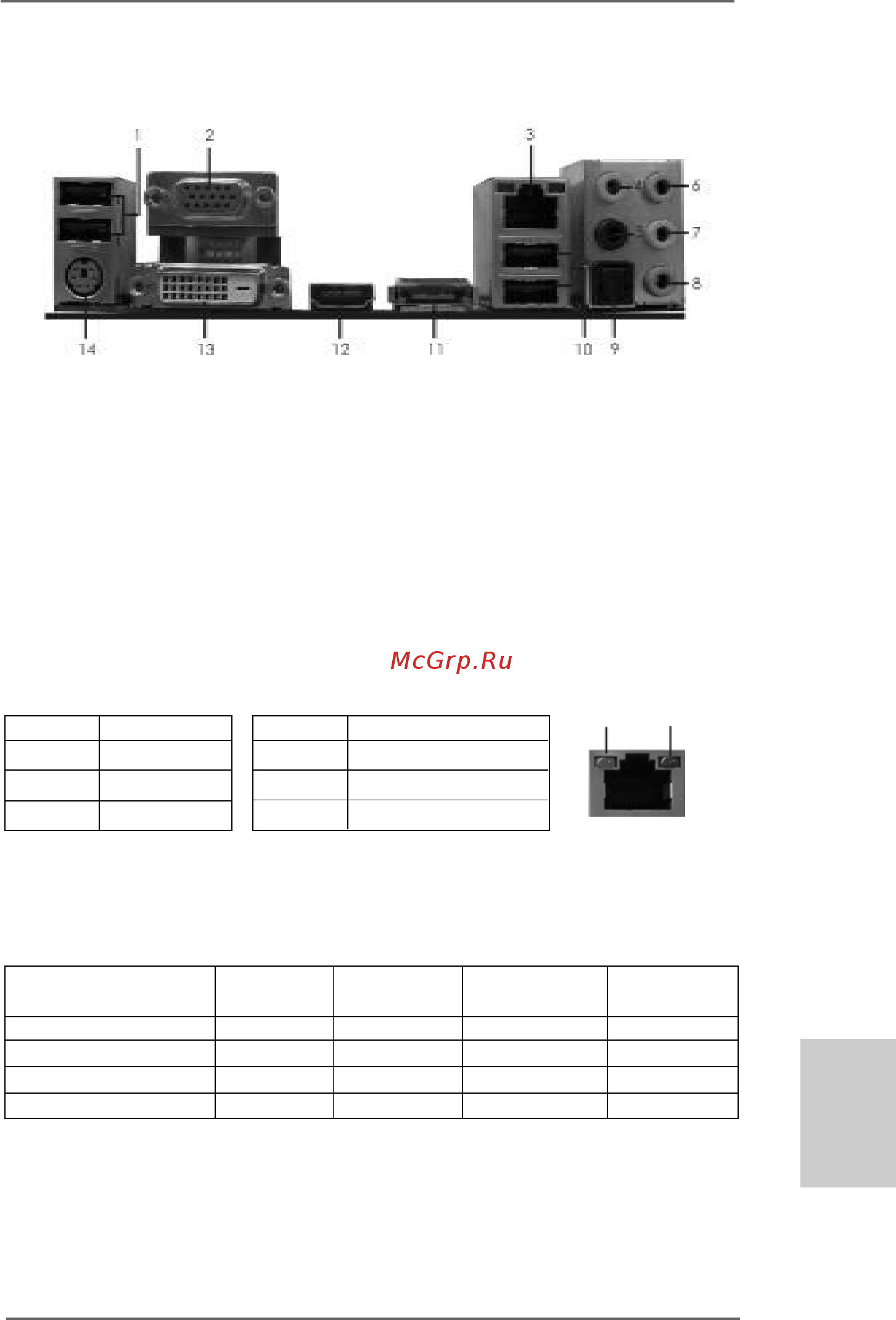

I/O PI/O P

I/O P

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In

(No. 7) (No. 5) (No. 4) (No. 6)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

1 USB 2.0 Ports (USB23) 8 Microphone (Pink)

2 VGA/D-Sub Port 9 Optical SPDIF Out Port

* 3 LAN RJ-45 Port 10 USB 2.0 Ports (USB01)

4 Central / Bass (Orange) 11 eSATAII Port

5 Rear Speaker (Black) *** 12 HDMI Port

6 Line In (Light Blue) 13 VGA/DVI-D Port

** 7 Front Speaker (Lime) 14 PS/2 Keyboard Port (Purple)

*** To support AC3 audio format with HDMI Audio under Vista

, please install the XP HDMI

audio driver.

The driver is located under the path: ..\Drivers\NB Audio\REALTEK\XP64_XP(R1.68)

And note for LPCM support up to stereo 2 channels only.

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection
