ASRock K8Upgrade-VM800 Motherboard

EnglishEnglish

English

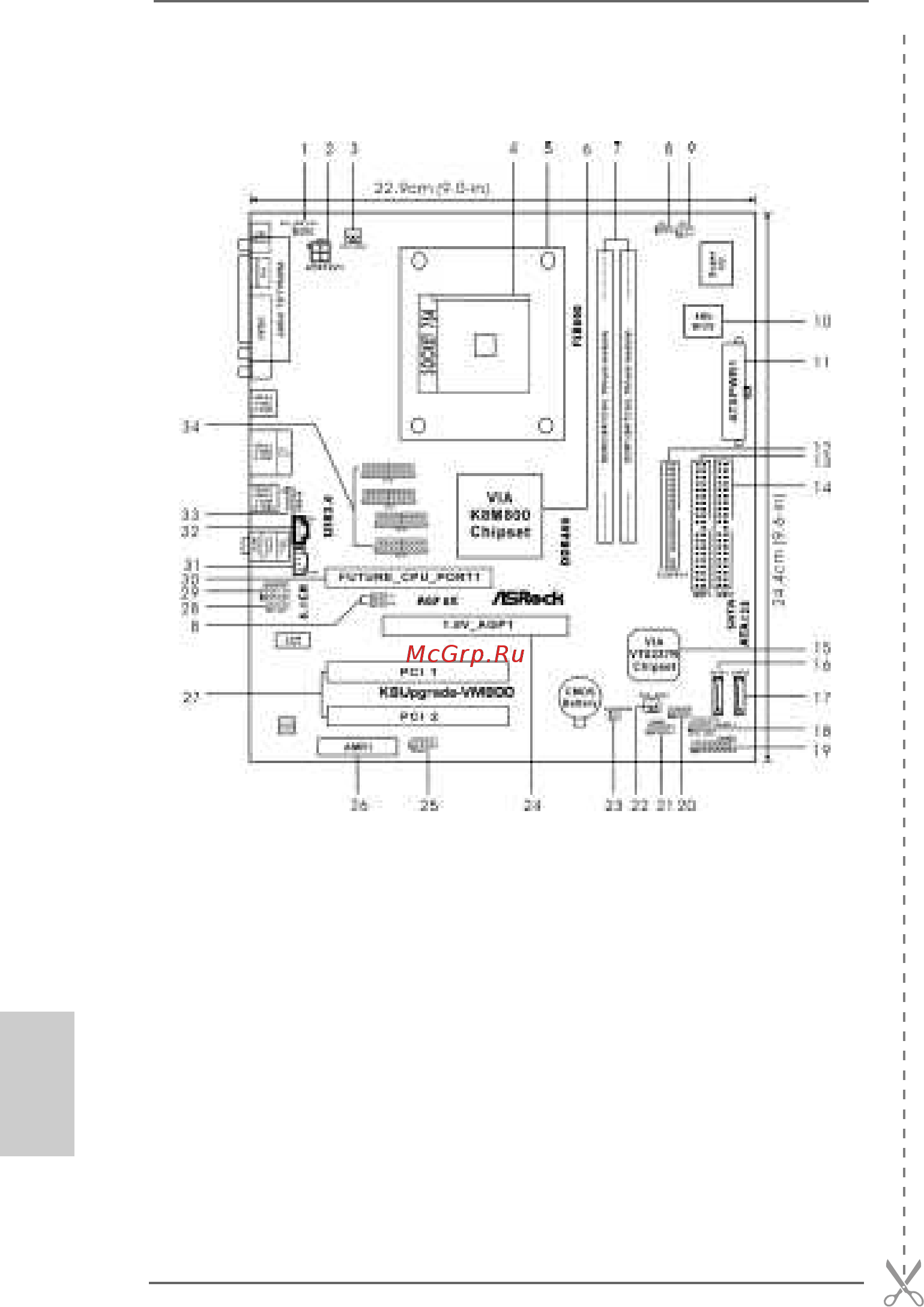

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 18 System Panel Header (PANEL1)

2 ATX 12V Power Connector (ATX12V1) 19 Game Port Header (GAME1)

3 CPU Fan Connector (CPU_FAN1) 20 Chassis Speaker Header (SPEAKER 1)

4 754-Pin CPU Socket 21 USB 2.0 Header (USB67, Blue)

5 CPU Heatsink Retention Module 22 Chassis Fan Connector (CHA_FAN1)

6 North Bridge Controller 23 Clear CMOS Jumper (CLRCMOS2)

7 184-pin DDR DIMM Slots (DDR1- 2) 24 AGP Slot (1.5V_AGP1)

8 J9 / J10 / J15 Jumpers 25 COM Port Header (COM1)

9 Infrared Module Header (IR1) 26 AMR Slot (AMR1)

10 Flash Memory 27 PCI Slots (PCI1- 2)

11 ATX Power Connector (ATXPWR1) 28 JR1 / JL1 Jumpers

12 Floppy Connector (FLOPPY1) 29 Front Panel Audio Header (AUDIO1)

13 Primary IDE Connector (IDE1, Blue) 30 Future CPU Port (FUTURE_CPU_PORT1)

14 Secondary IDE Connector (IDE2, Black) 31 Internal Audio Connector: AUX1 (White)

15 South Bridge Controller 32 Internal Audio Connector: CD1 (Black)

16 Primary Serial ATA Connector (SATA1) 33 Shared USB 2.0 Header (USB45, Blue)

17 Secondary Serial ATA Connector (SATA2) 34 J1 - J8 Jumpers
