ASRock 939NF6G-VSTA [2/160] Motherboard l motherboard l motherboard l motherboard l motherboard layout ayout ayout ayout ayout

ASRock 939NF6G-VSTA Motherboard

EnglishEnglish

English

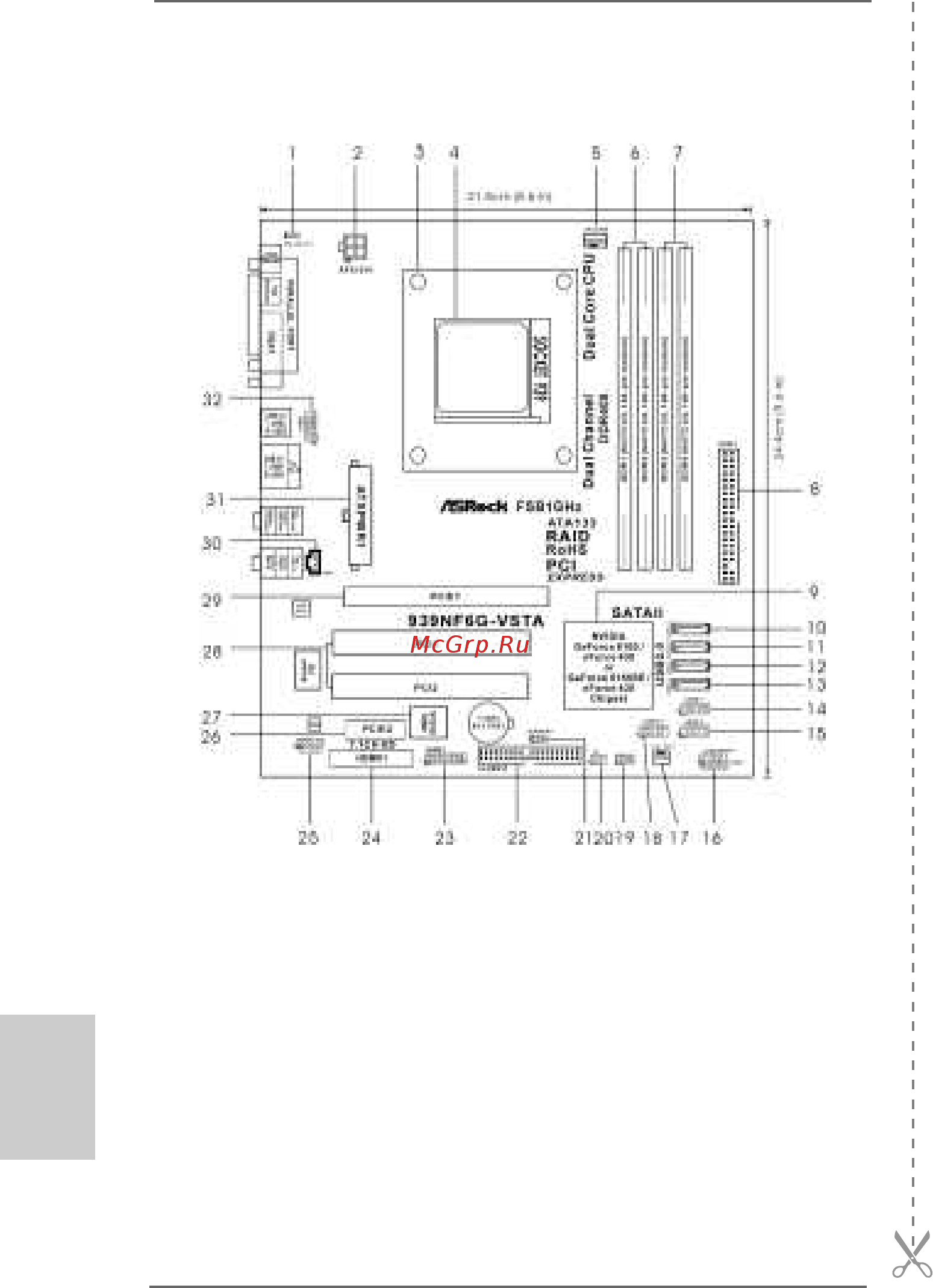

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PW1 Jumper 16 System Panel Header (PANEL1)

2 ATX 12V Power Connector (ATX12V1) 17 Chassis Fan Connector (CHA_FAN1)

3 CPU Heatsink Retention Module 18 USB 2.0 Header (USB4_5, Blue)

4 939-Pin CPU Socket 19 Chassis Speaker Header (SPEAKER 1)

5 CPU Fan Connector (CPU_FAN1) 20 Infrared Module Header (IR1)

6 2 x 184-pin DDR DIMM Slots 21 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel A: DDR1, DDR2; Blue) 22 Floppy Connector (FLOPPY1)

7 2 x 184-pin DDR DIMM Slots 23 Game Port Header (GAME1)

(Dual Channel B: DDR3, DDR4; Black) 24 HDMR Slot (HDMR1)

8 Primary IDE Connector (IDE1, Blue) 25 Front Panel Audio Header (HD_AUDIO1)

9 NVIDIA Single Chip 26 PCI Express x1 Slot (PCIE2)

10 Fourth SATAII Connector (SATAII_4, Red) 27 Flash Memory

11 Third SATAII Connector (SATAII_3, Red) 28 PCI Slots (PCI1- 2)

12 Secondary SATAII Connector (SATAII_2, Red) 29 PCI Express x16 Slot (PCIE1)

13 Primary SATAII Connector (SATAII_1, Red) 30 Internal Audio Connector: CD1 (Black)

14 USB 2.0 Header (USB6_7, Blue) 31 ATX Power Connector (ATXPWR1)

15 USB 2.0 Header (USB8_9, Blue) 32 Serial Port Connector (COM1)
