ASRock PV530A Motherboard

EnglishEnglish

English

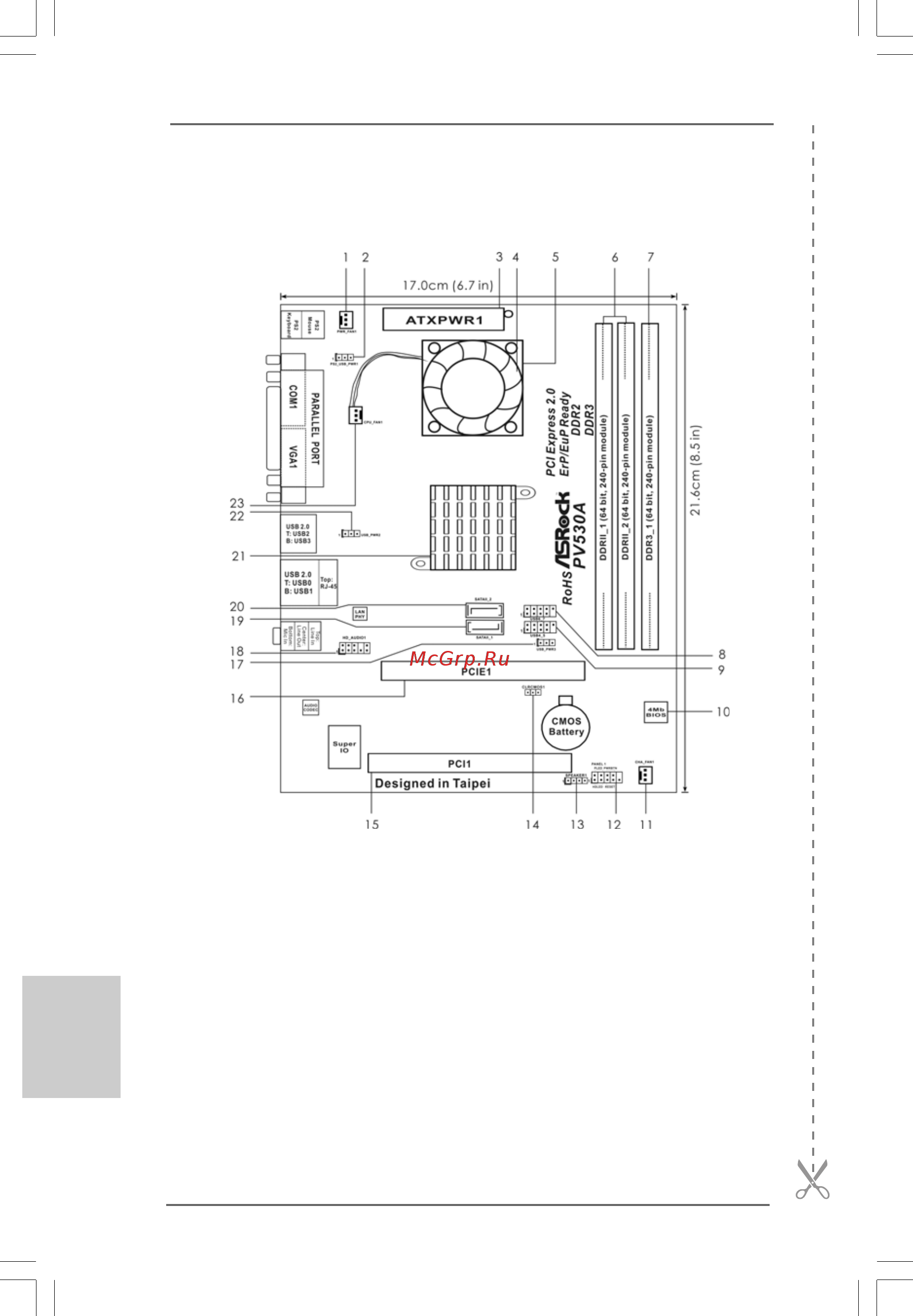

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 Power Fan Connector (PWR_FAN1) 13 Chassis Speaker Header (SPEAKER 1, White)

2 PS2_USB_PWR1 Jumper 14 Clear CMOS Jumper (CLRCMOS1)

3 ATX Power Connector (ATXPWR1) 15 PCI Slot (PCI1)

4 CPU Fan 16 PCI Express 2.0 x16 Slot (PCIE1)

5 CPU Heatsink 17 USB_PWR3 Jumper

6 2 x 240-pin DDR2 DIMM Slots 18 Front Panel Audio Header

(DDRII_1, DDRII_2; Yellow) (HD_AUDIO1, White)

7 1 x 240-pin DDR3 DIMM Slot (DDR3_1; Blue) 19 Primary SATAII Connector (SATAII_1; Blue)

8 USB 2.0 Header (USB6_7, Blue) 20 Secondary SATAII Connector (SATAII_2; Blue)

9 USB 2.0 Header (USB4_5, Blue) 21 VIA VX900 A3 Chipset

10 BIOS SPI Chip 22 USB_PWR2 Jumper

11 Chassis Fan Connector (CHA_FAN1) 23 CPU Fan Connector (CPU_FAN1)

12 System Panel Header (PANEL1, White)
