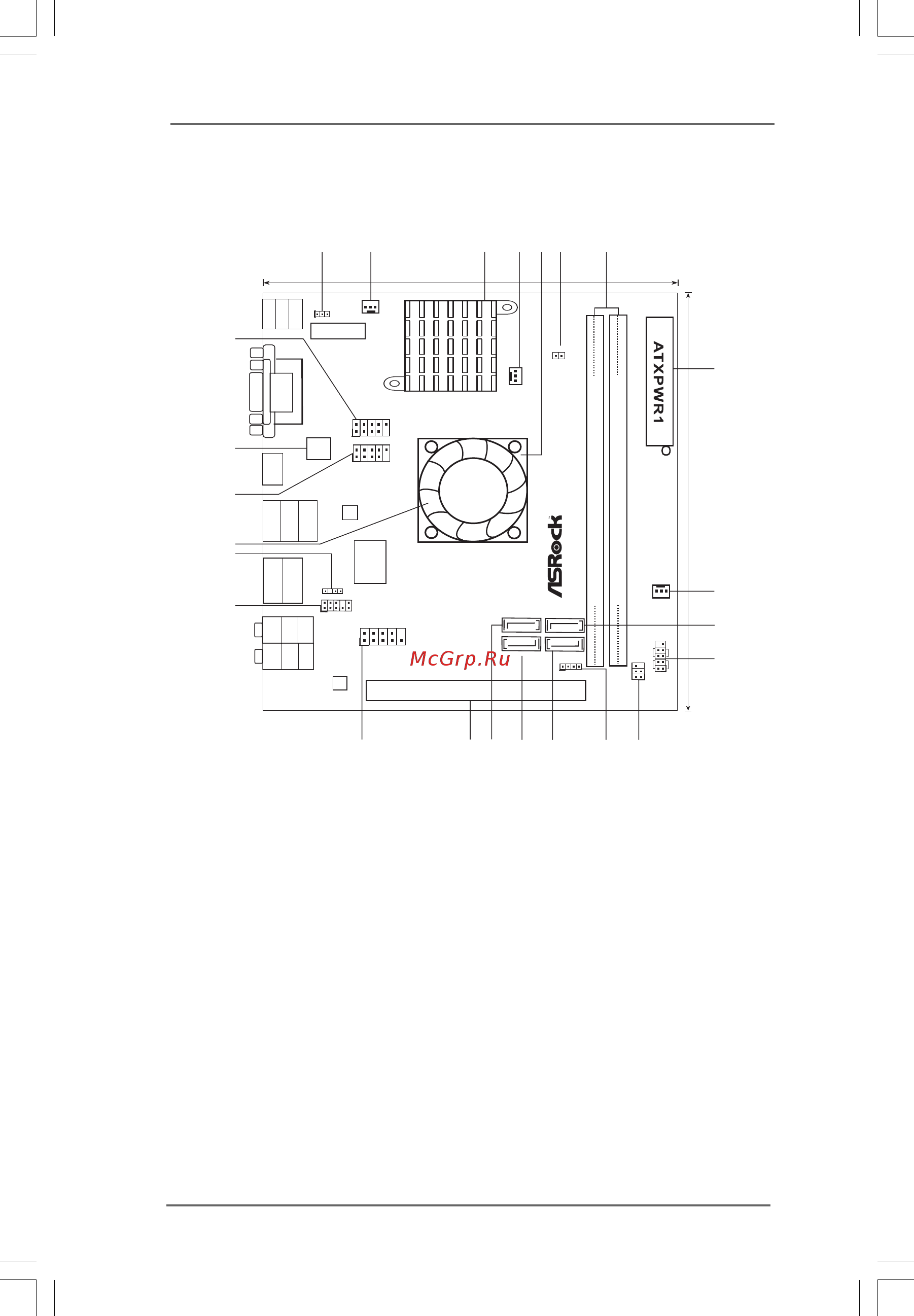

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 14 Third SATAII Connector (SATAII_3; Red)
2 Chassis Fan Connector (CHA_FAN1) 15 Primary SATAII Connector (SATAII_1; Red)
3 CPU Heatsink 16 Secondary SATAII Connector (SATAII_2; Red)
4 CPU Fan Connector (CPU_FAN1) 17 PCI Express 2.0 x16 Slot (PCIE1, Blue)
5 Chipset Heatsink 18 COM Port Header (COM1)
6 Clear CMOS Jumper (CLRCMOS1) 19 Front Panel Audio Header
7 2 x 240-pin DDR3 DIMM Slots (HD_AUDIO1, Lime)
(Dual Channel: DDR3_1, DDR3_2; Blue) 20 HDMI_SPDIF Header
8 ATX Power Connector (ATXPWR1) (HDMI_SPDIF1, Yellow)
9 Chassis Fan Connector (CHA_FAN2) 21 Chipset Fan
10 Fourth SATAII Connector (SATAII_4; Red) 22 USB 2.0 Header (USB8_9, Blue)
11 System Panel Header (PANEL1, Orange) 23 BIOS SPI Chip
12 Infrared Module Header (IR1) 24 USB 2.0 Header (USB6_7, Blue)
13 Chassis Speaker Header (SPEAKER 1, Purple)
FSB800
DDR3_1 (64 bit, 240-pin module)
FSB800
DDR3_2 (64 bit, 240-pin module)
Super
IO
8Mb
BIOS
CMOS Battery
SPEAKER1
1
PANE L 1
HDLED RESET
PLED PWRBTN
1
CLRCMOS1
SATAII_1
SATAII_2
SATAII_3
SATAII_4
HD_AUDIO1
1
1
PS2_USB_PWR1
1
USB6_7
1
USB8_9
CPU_FAN1
CHA_FAN2
CHA_FAN1
LAN
PHY
AUDIO
CODEC
PCIE1
PS2
Keyboard
17.0cm (6.7 in)
17.0cm (6.7 in)
VGA1
DVI_CON1
HDMI1
USB
USB
USB
USB
RJ-45 LAN
Powered
eSATAII/USB
Powered
eSATAII/USB
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
IR1
1
COM1
1
Dual Channel
DDR3 1066
RoHS
DX10
EuP Ready
PCI Express 2.0
Gigabit LAN
A330ION
1
2
4
56
3
7
8
9
10
12
13
14
11
15
16
17
18
20
19
21
22
24
1
HDMI_SPDIF1
23
